Help CenterPCB Module Board DMX Receiver (TF-WI-PCB)
Related Products
-

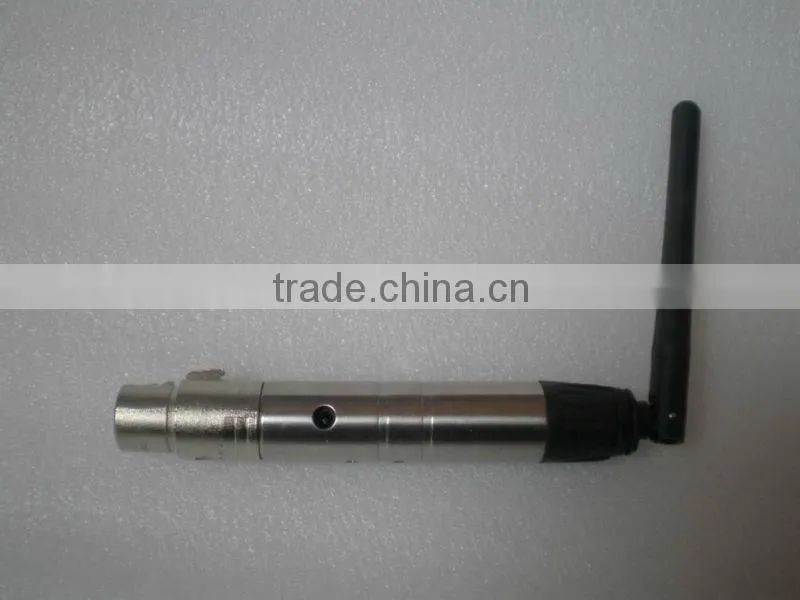

DMX512 Wireless Receiver/transmitter PCB ModuleNegotiableMOQ: 5 Sets -
Wireless DMX Receiver PCB BoardNegotiableMOQ: 5 Sets
-

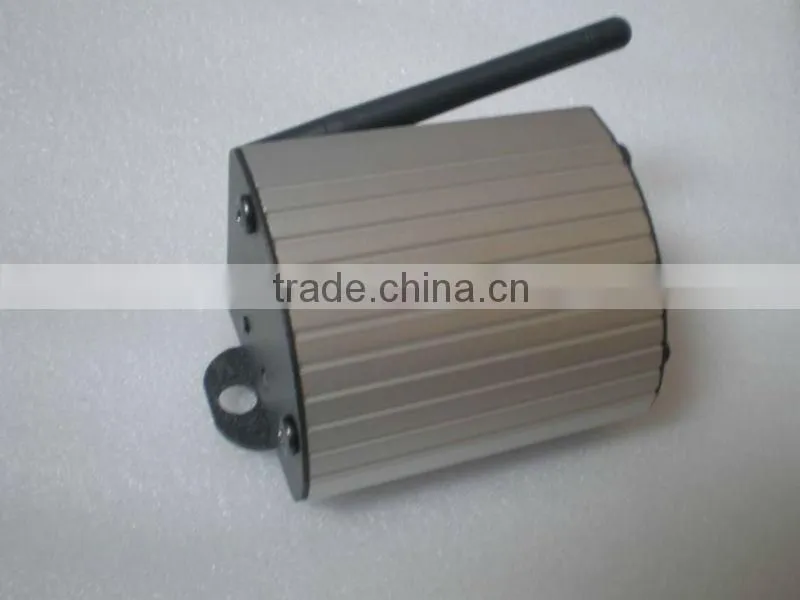

Indoor Using LED Stage Lighting DMX512 Wireless Transmitter PlugNegotiableMOQ: 5 Sets
-
DMX512 3Pin Wireless Dmx Xlr PlugNegotiableMOQ: 5 Sets
-
DMX512 5V Wireless Transmitter and Receiver (pcb Module)NegotiableMOQ: 5 Sets
Specifications
PCB Module Board DMX receiver1. Input voltage: 5VDC
2.Signal port: RS485 or CPU series port AURT
PCB Module Board DMX receiver
key words: DMX wireless, wireless DMX, DMX512 wireless, DMX-512 wireless receiver/transmitter, wireless DMX-512, wireless DMX512, Wireless DMX Transmitter / Receiver, Indoor wireless receiver/transmitter, DMX-512 Controller
Introduction:
DMX512 wireless receiver/transmitter transmit standard DMX512 protocol data (generated by console) by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely. And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably.
This product adopt 2.4G ISM frequency section (global opening section) without permission limited,
High effective GFSK modulate communication design. 126 frequencies band, FH design, and frequency-hopping synchronization automatically.
1:Terminal 2:LED indicator 3:ID setting 4:Antenna port 5:PCB hole for fixed 6:Antenna
PCB Hole:
Product feature:
1. Transmitting/receiving standard DMX512 protocol data of console,and the master-slaver on line signal of the same kind of lighting each other.
2. Attached to various stage lighting and equipment because of the small size.
3. Single key to operate,tricolor LED indicator.
The LED indicator bright:No DMX or wireless signal.
Red LED flash:Transmitting.
Green LED flash:Receiving
4. 126 frequencies band, FH design, and frequency-hopping synchronization automatically.
5. 7 groups ID code to set these different wireless nets without any interfere each other in the same place.
6. Input voltage:5VDC
7. Communication distance:500m(visible distance)
8. Max transmitting power:20dBm
9. Receiver sensitive:-94dBm

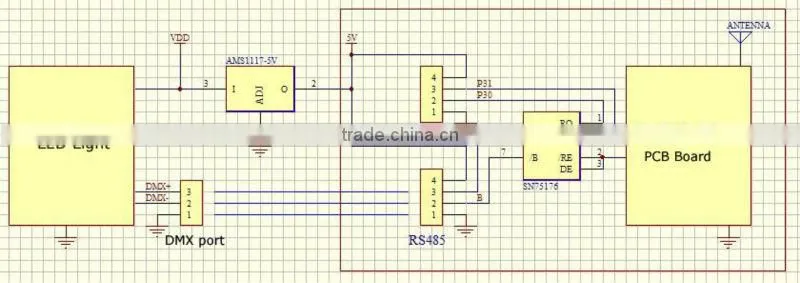

Connecting Scheme:
² Please take off IC of RS485 port such as SN75176 if CPU series port connects with lighting to be selected on the module.
² Try to separate 5V between power supply and input voltage of lighting
² Select quality linearity regulated voltage diode for power supply, such as 1117,7805 etc.
² Please place it apart from hi-RF circuit part.
Compatible series products as following:
Establishing Communication:
1. Power on DMX512 wireless received board and transmitted board.
2. Press “Key” button to set same ID value of transmitted board and received board.
To set up different ID value if you need use more than 1 group wireless net at the same time at the same place, the group wireless net is working for the same ID code.
a) ID Code- - - - “1- 7 ” groups ID code, press “KEY” for setting, press again to set ID, then ID value adding 1 each time by press.
ID code and LED color corresponding relationship:
| ID Code | Tricolor LED |
| 1 | red |
| 2 | green |
| 3 | red+green |
| 4 | blue |
| 5 | red+blue |
| 6 | green+blue |
| 7 | red+green+blue |
Caution:
Don’t repair this T/R board by yourself, it should be returned to manufacturer.
