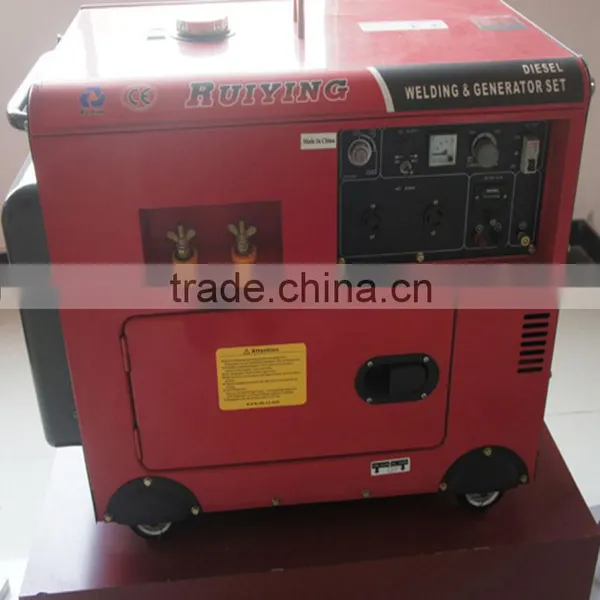

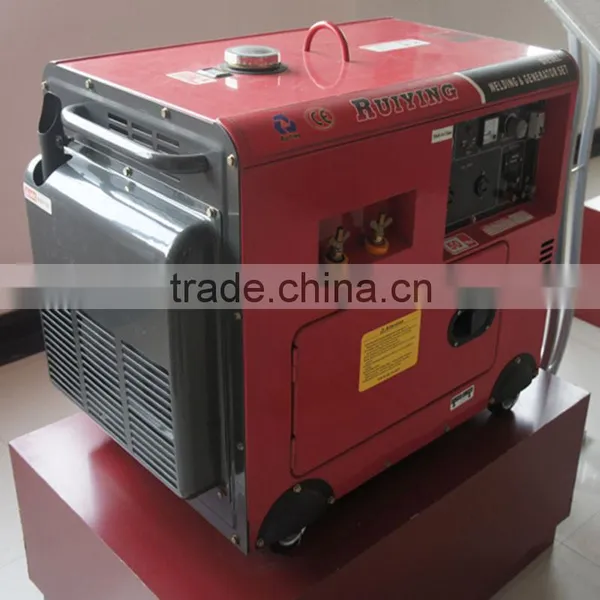

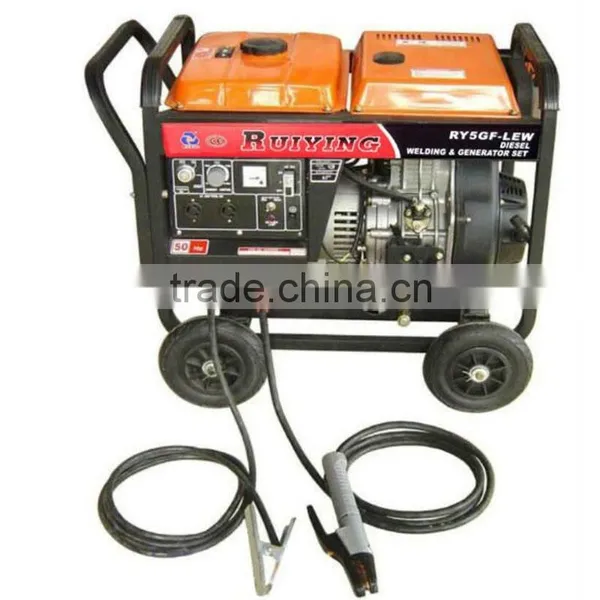

Diesel Welding Generator Set

Name: Diesel Welding Generator Set
Brand: RUIYING
SKU: 133455099
Availability: InStock

US$ 700 - 900 MOQ: 1 Set

Key Specifications

Brand Name:

RUIYING

Model Number:

RY5GF-LE

Output Type:

AC Single Phase

Shanghai Ruiying Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI CHINA

Delivery Detail:

Delivery time depends on order quantity.

Brand Name RUIYING

Model Number RY5GF-LE

Output Type AC Single Phase

Speed 3000/3600

Frequency 50/60HZ

Rated Power 5KVA

Rated Voltage 220/110V

Rated Current 22.7A

diesel welding generator set RY5GF-LE

Model Code		RY5GF-LE
ALTERNATOR		60Hz
	Rated Output Power(kVA)	2.2
	AC Rated Voltage (V)	120
	AC Rated Current (A)	8.2
	Phase	Single-phase
	Power Factor (cosφ)	1.0
	Welding Voltage Without Load (V)	55-65
	Rated Welding DC Current (A)	160
	Welding Voltage (V)	26
	Current Regulation Range (A)	50-180
ENGINE	Engine Model Code	RY186FE
	Engine type	Single-cylinder, 4-stroke, Air-cooled Diesel Engine
	Rated Output Power(kW/HP)	5.7/7.8
	Rated Speed (RPM)	3600
	Displacement (cc)	406
	Compression Ratio	19:1
	Starting Method	Electric Starter
	Fuel	0# Diesel (summer)/-10# Diesel (winter)
	Fuel tank capacity (L)	13.5
	Lubrication Oil	SAE10W30 (above CC grade)
GENERATOR SET	Structure Type	Open-frame
	Dimensions (L×W×H) (mm)	720×480×650
	Packing size (L×W×H) (mm)	745×505×660
	Net weight (kg)	105/113
	Low Oil Pressure Alarm System	With
	In 20" Container (sets)	96

Customer's Visiting

Company information

Package

Our Srevice

1.One year or 12 months warranty

from the day our customer get the machine, one year or 12 months, the first expired will be valid.

2.One Set Free Wearing Parts

One set wearing partswill be supplied for free,including air filter,oil filter,fuel filter.

3.After Sale Service

Any fault happens,please feel free to contact our after sale service department by:

Tel:0086-21-57581086,0086-21-57581618

FAQ

how long can I get the generator

The max delivery time of our genset is 15 working days.
where do you send the genset?

At present we have two factories, one in Shanghai and another is in Nanjing, we will arrange the delivery according to production schedule.
what about your warranty period.

our warranty period is one year or 1000 running hours, any problem during this time, you can contact us. we will offer after sale service.
what is your payment term

we prefer 30% deposit in advance, 70% before delivery. L/C is also acceptable.
