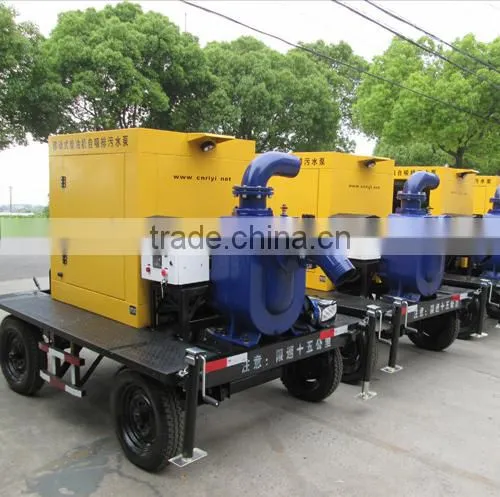

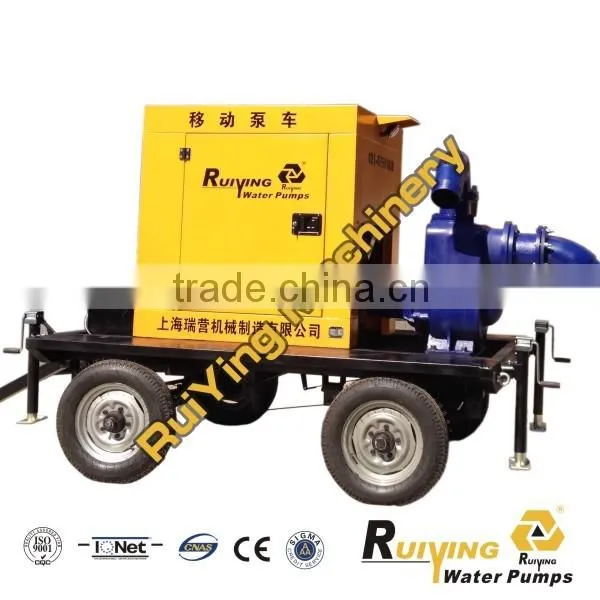

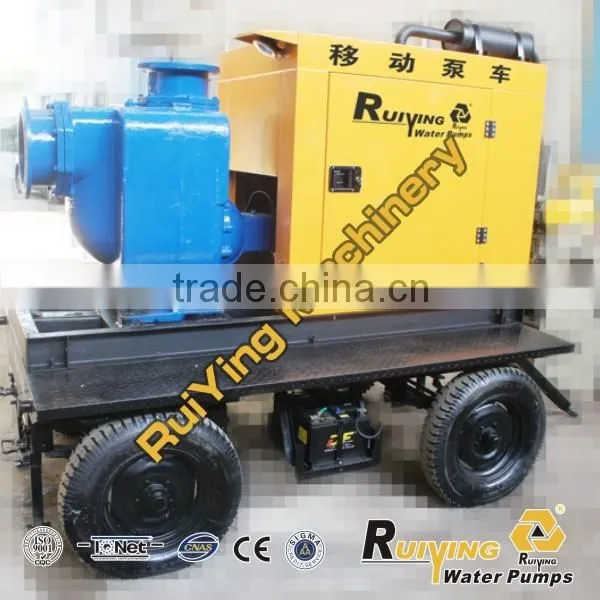

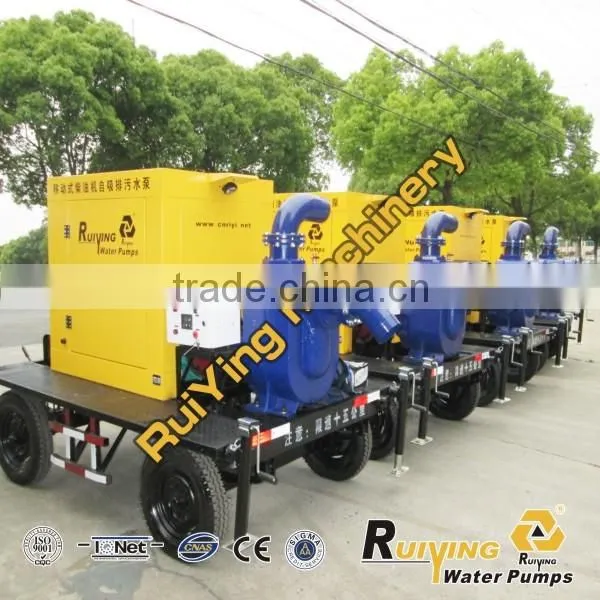

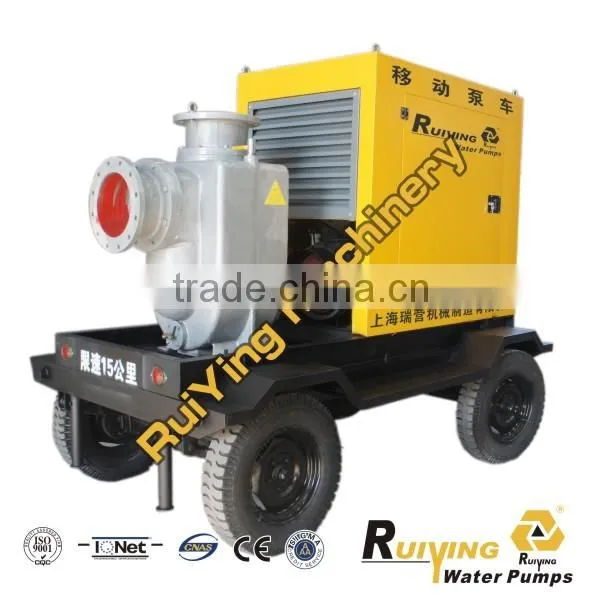

large irrigation pump
self priming water pump is easy to operate, you only need to inject water into the pump at first time. water will be kept in the pump.
large irrigation pump .
Characteristic of large irrigation pump
1. very easy to be moved to remote place for work
2. driven by diesel engine, no need for electricity power
3. CUMMINS engine or china engine, various choice
4. designed for easy maintainence.
Details of large irrigation pump

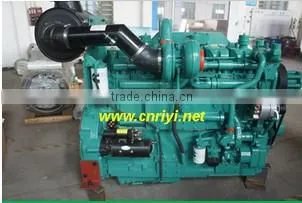

engine specification
| manufacturer |
CUMMINS |
| model number |
6CTA8.3-G2 |
| cylinders and cycles | 6 cylinders, 4 stroke |
| aspiration and cooling |
turbocharged and aftercooled |
| displacement |
8.3L |
| bore x stroke |
114x135mm |
| compression ratio |
17.3:1 |
| rated speed |
1500 rpm |
| governor |
electric |
| power | 163kw |
| oil capacity | 27.6L |
| coolant capacity | 12.3L |
| fuel capacity |
44L/H at 100% load |
specification of pump
| pump head | 55m |
| flow | 550CBM/hour |
| inlet size | 300mm |
| outlet size | 250mm |
| material of case |
cast iron |
| material of axle | cast steel |
| material of blade | cast steel |
| sealing method |
packing seal |
Basic supplying scope of large irrigation pump
diesel pump set
filter set
muffler
daily fuel tank
starting battery, cable, motor
control system
elbow

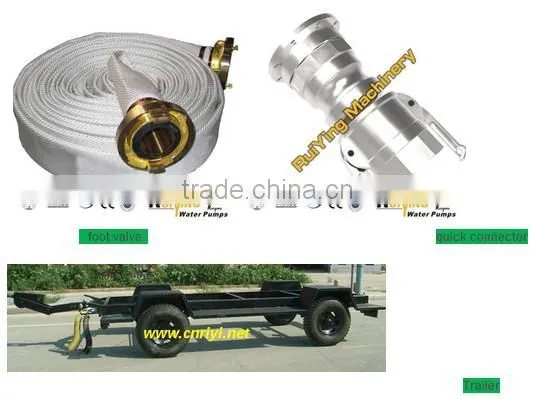

optional accessories for large irrigation pump
1. trailer
2. PVC tape
3. rubber pipe
4. converter
5. stainless quick coupling
package of large irrigation pump
Delivery time
15 days to 35 days after receiving your deposit.
Warranty for RUIYING products
Ruiying offer one year or 1000 hours warranty for its machine, if there is any quality problem during this period, please contact our after sale department for help.
Payment terms
30% as deposit and 30% before delivery
Engine
PUMP
FAQ:about large irrigation pump
What is diesel engine water pump?
diesel engine water pump is different from electric engine pump, it is driven by diesel engine. it is usually equipped with a trailer to make it easy to move.
Why use diesel engine water pump?
when you want to use water pump at remote place where there is no city power, diesel engine will help you. you can use the diesel engine pump anywhere.
How to choose a diesel pump?
you only need to tell us the head and flow of pump set, how your want to use it, we will offer the right solution for your need.
company introduction
|
Shanghai Ruiying Machinery Manufacture Co. Ltd locates in Tairi industrial park in Shanghai, it has a 5000m2 assembly company in Shanghai and a huge production base in Jianshu province. Ruiying has been specilizing in R&D and producing of generator and diesel engine water pump.
The power of its generators are ranged from 2kVA to 2500kVA. Its generators mainly contain open type, sound proof type, wind and rain proof type, trailer type, intelligent type.
Flow of its water pump is from 10m3/h to 3400m3/h. Customization is available to meet different demand of common customers and special customers. Self-priming water pump powered by diesel, double suction axial split water pump powered by diesel and mix-flow water pump |

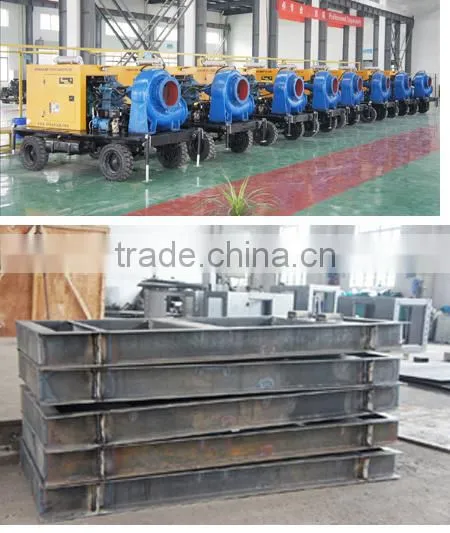

factory site for large irrigation pump

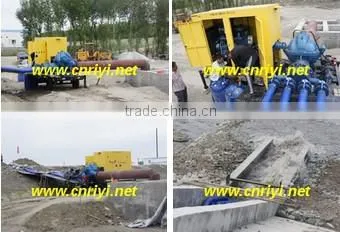

engineering case of large irrigation pump
this case is from municipal project, our customer used this split case diesel engine pump set to fill an empty lake within one week.

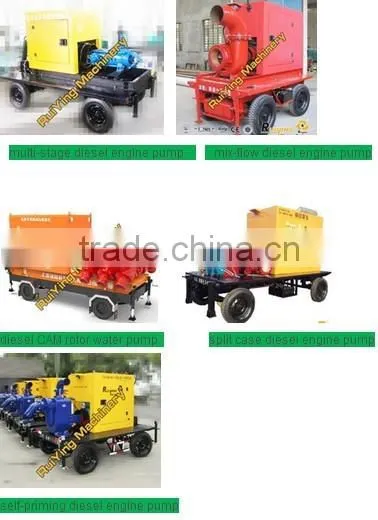

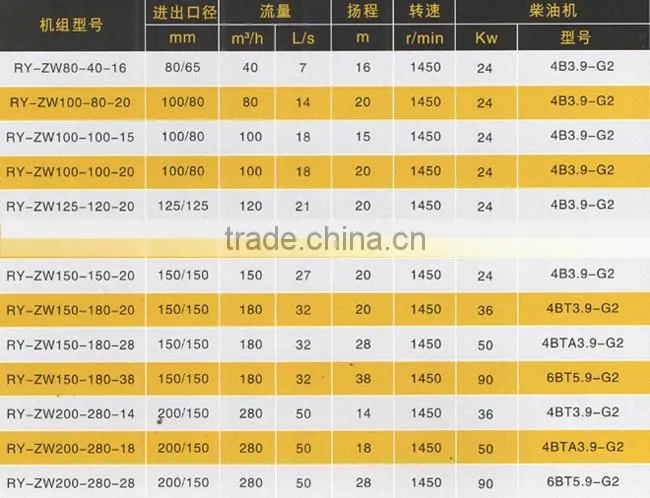

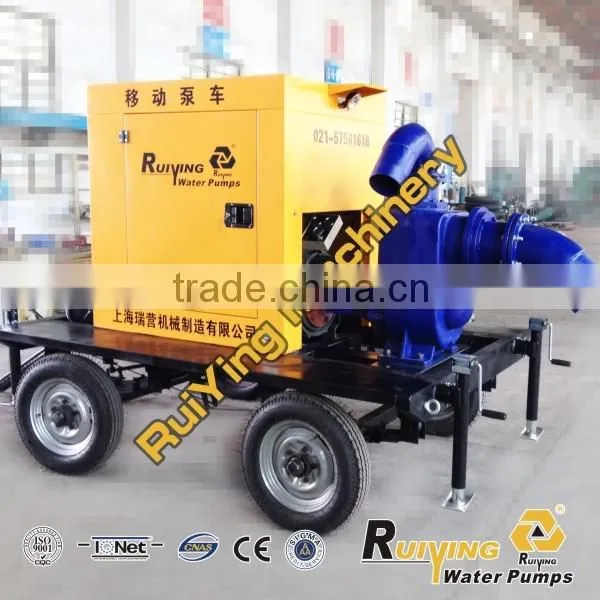

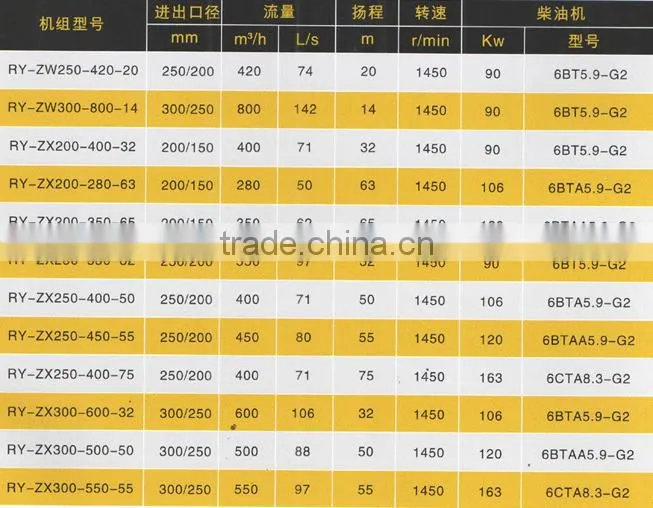

large irrigation pump we supply
Charicteristics of different pumps

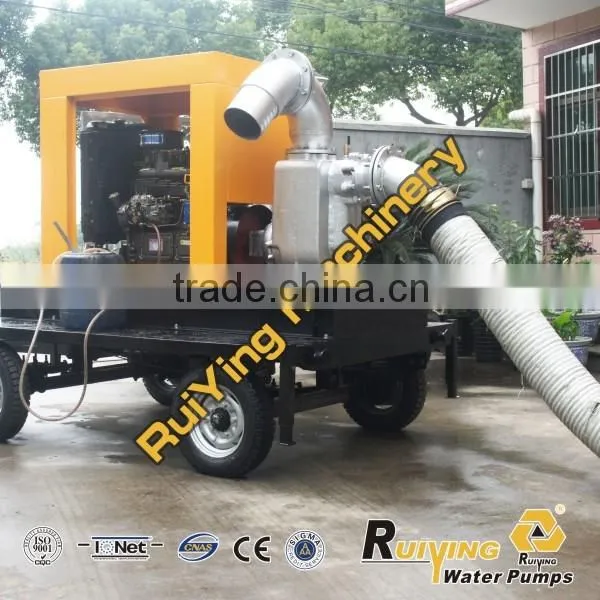

self priming diesel engine pump
1. As it has the function of self priming, no foot valve is needed, you only need to inject water into pump in first time.
2. it has a compact structure, easy to ues and maintain.

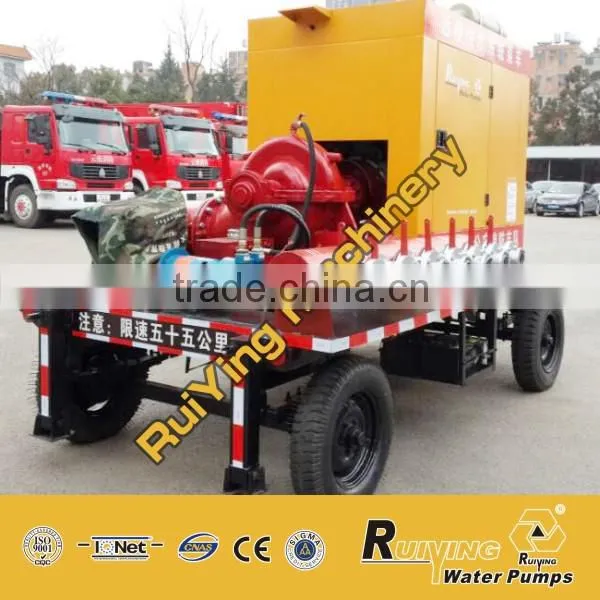

split case diesel water pump
it has a wide flow range, runs smoothly, there is little fluctuation on flow and pressure
simple transmission mechanism
smaller size, less components and size.
CAM rotor water pump
long life span
reliable, less failure, better sealed and low noise.
applicable for liquid with viscosity below 20000CP and liquid with particles.
able to transmit mixture of air, solid, liquid.
multi stage diesel engine pump
endurable for high pressure
small flow(18-155cbm/hour), big head( as large as 270m)
mix flow diesel engine pump
it has a wide flow range as large as 3400cbm/hour.
RUIYING special design for diesel engine pump
if the inlet or out let of pump is larger than 200mm, it will be very diffult to transport and assemble the pipe and PVC tape, so we use converter on the pump, then, when you purchase a pump with 500mm inlet or outlet, you can assemble 150mm or 200mm size pipes on the pump set.
its another advantage is, you can pump water at one place and distribute the water to different places, below is engneering case for this part:
Exhibition of Ruiying products
company and product certificate
