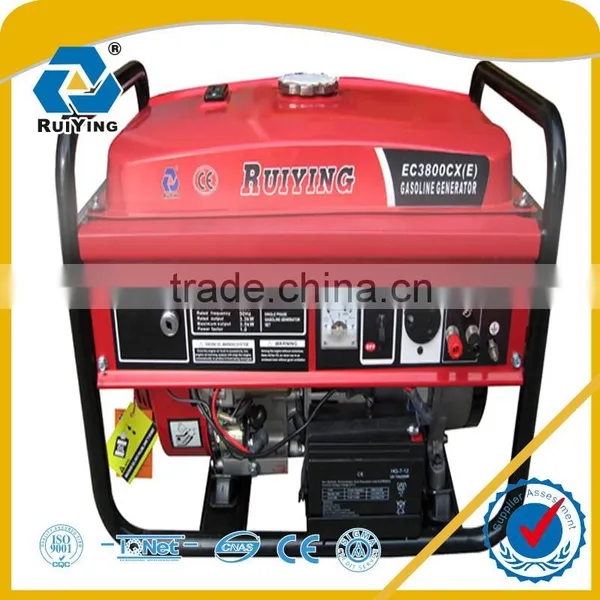

3KVA Air-Cooled Gasoline Generator Set Manufacturer In Shanghai

Name: 3KVA Air-Cooled Gasoline Generator Set Manufacturer In Shanghai
Brand: Ruiying
SKU: 133454523
Availability: InStock

US$ 300 - 500 MOQ: 10 Sets

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Ruiying

Model Number:

EC3800CXE

Shanghai Ruiying Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Ruiying

Model Number EC3800CXE

Output Type AC Single Phase

Speed 3000/3600RPM

Frequency 50/60HZ

Rated Power 3KW

Rated Voltage 110V/220V/230V/240V/380V

Rated Current 12A

3KVA Air-Cooled Gasoline Generator Set Manufacturer In Shanghai EC3800CXE

EC3800CX Technical Specifications

Model Code		EC3800CX
ALTERNATOR		50Hz	60Hz
	Rated Output Power(kVA)	0.85	1.0
	AC Rated Voltage (V)	220	110 / 220
	AC Rated Current (A)	4.1	9.1 / 4.5
	Phase	Single-phase
	DC Output (Optional)	12V / 8.3A
	Power Factor (cosφ)	1.0
ENGINE	Engine Model Code	RY152F
	Engine type	Single-cylinder, 4-stroke, Air-cooled Gasoline Engine
	Rated Output Power(kW/HP)	1.2/2.0
	Rated Speed (RPM)	3000	3600
	Displacement (cc)	80.7
	Compression Ratio	7:1
	Starting Method	Recoil Starter
	Fuel	Automobile Unleaded Gasoline
	Fuel tank capacity (L)	6
	Lubrication Oil	SAE15W40 (above CC grade)
	Rotation Direction (View From Wheel)	Clockwise
GENERATOR SET	Noise Level [dB(A)/7m]	65~68
	Structure Type	Open-frame
	Ignition System	Non-Contact Transistor
	Dimensions (L×W×H) (mm)	450×350×365
	Packing size (L×W×H) (mm)	465×365×385
	Net weight (kg)	26
	In 20" Container (sets)	480

Customer's Visiting

Company information

Package

Our Srevice

1.One year or 12 months warranty

from the day our customer get the machine, one year or 12 months, the first expired will be valid.

2.One Set Free Wearing Parts

One set wearing partswill be supplied for free,including air filter,oil filter,fuel filter.

3.After Sale Service

Any fault happens,please feel free to contact our after sale service department by:

Tel:0086-21-57581086,0086-21-57581618

FAQ

how long can I get the generator

The max delivery time of our genset is 15 working days.
where do you send the genset?

At present we have two factories, one in Shanghai and another is in Nanjing, we will arrange the delivery according to production schedule.
what about your warranty period.

our warranty period is one year or 1000 running hours, any problem during this time, you can contact us. we will offer after sale service.
what is your payment term

we prefer 30% deposit in advance, 70% before delivery. L/C is also acceptable.
