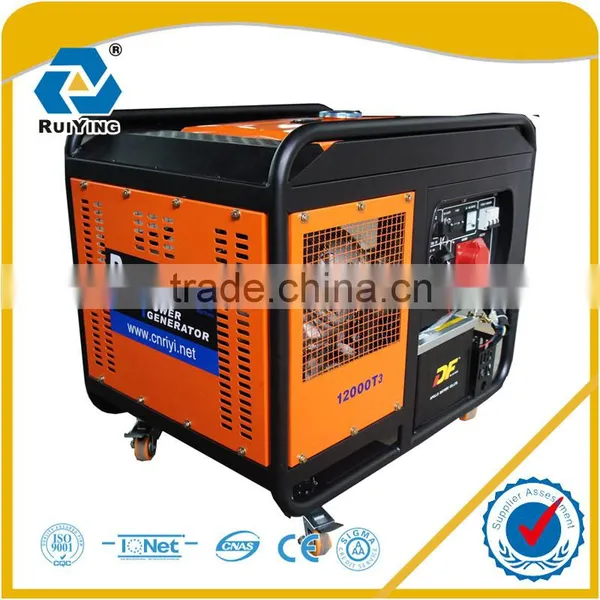

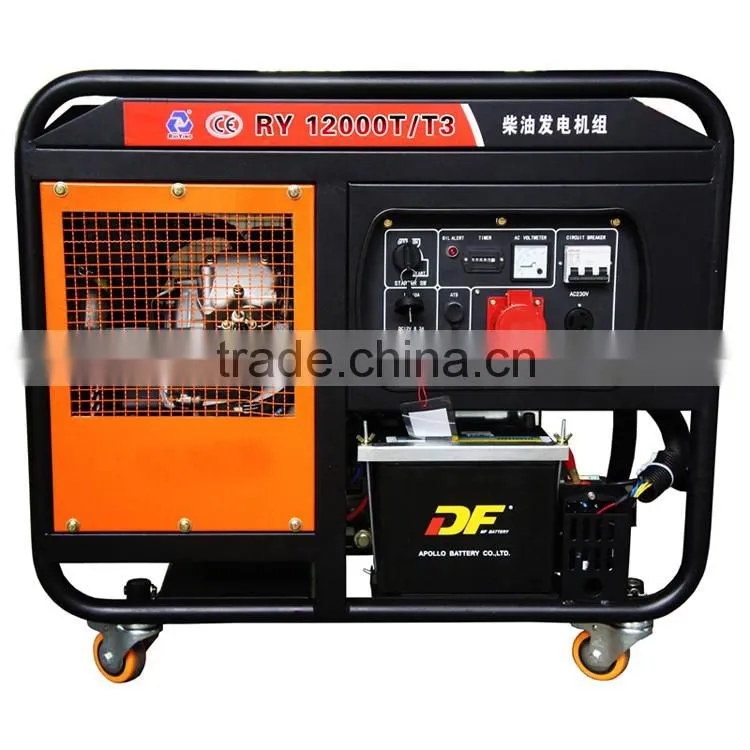

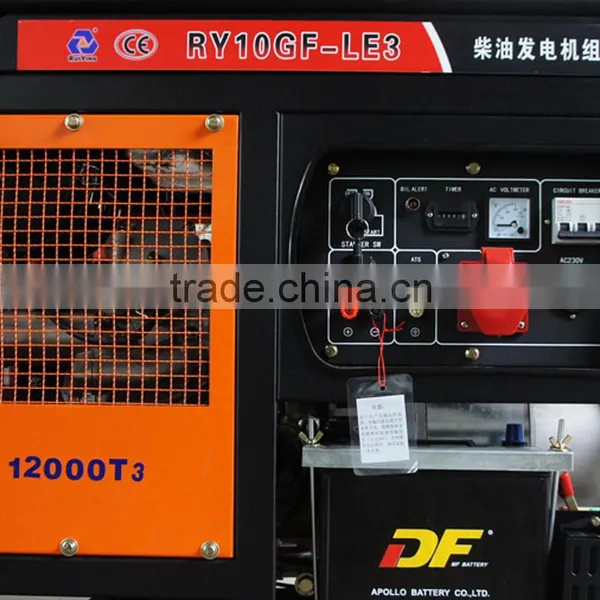

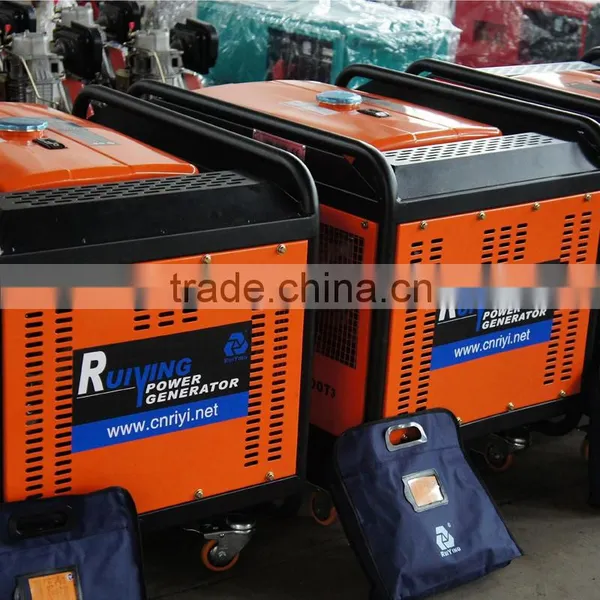

Air cooled Silent portable Diesel Generator 5kw
Model Code |
5GF-LDEZ |
|||
ALTERNATOR |
|
50Hz |
60Hz |
|
Rated Output Power(kVA) |
4.2 |
5.0 |
||
AC Rated Voltage (V) |
230 |
240 / 120 |
||
AC Rated Current (A) |
18.3 |
20.8/41.7 |
||
Phase |
Single-phase |
|||
DC Output |
12V / 8.3A |
|||
Power Factor (cosφ) |
1.0 |
|||
ENGINE |
Engine Model Code |
RY186FAE |
||
Engine type |
Single-cylinder, 4-stroke, Air-cooled Diesel Engine |
|||
Rated Output Power(kW/HP) |
5.7/7.8 |
|||
Rated Speed (RPM) |
3000 |
3600 |
||
Displacement (cc) |
406 |
|||
Compression Ratio |
19:1 |
|||
Starting Method |
Electric Starter |
|||
Fuel |
0# Diesel (summer)/-10# Diesel (winter) |
|||
Fuel tank capacity (L) |
16 |
|||
Lubrication Oil |
SAE10W30 (above CC grade) |
|||
GENERATOR SET |
Structure Type |
Cart Type |
||
Dimensions (L×W×H) (mm) |
910×530×740 |
|||
Packing size (L×W×H) (mm) |
980×570×770 |
|||
Net weight (kg) |
175/183 |
|||
Low Oil Pressure Alarm System |
With |
|||
In 20" Container (sets) |
61 |
|||
The power of its generators are ranged from 2KVA to 2500kVA. Its generators mainly contain open type, soundproof type, wind and rain proof type, trailer type, intelligent type.
Flow of its water pump is from 10 m3/hr to 3400m3/hr. its water pump products is widely used for agriculture and industrial purpose.
1.One year or 1000 hours warranty
From the day our customer get the machine, one year or 1000 hours, the first expired will be valid.
2. One set free wearing parts
One set wearing parts will be supplied for free, including air filter, oil filter, fuel filter.
3. After sale service
Any fault happens, please feel free to contact our after sale service department by:
Tel: 0086-21-57581086, 0086-21-57581618
What is diesel engine water pump?
diesel engine water pump is different from electric engine pump, it is driven by diesel engine. it is usually equipped with a trailer to make it easy to move.
Why use diesel engine water pump?
when you want to use water pump at remote place where there is no city power, diesel engine will help you. you can use the diesel engine pump anywhere.
How to choose a diesel pump?
you only need to tell us the head and flow of pump set, how your want to use it, we will offer the right solution for your need.
