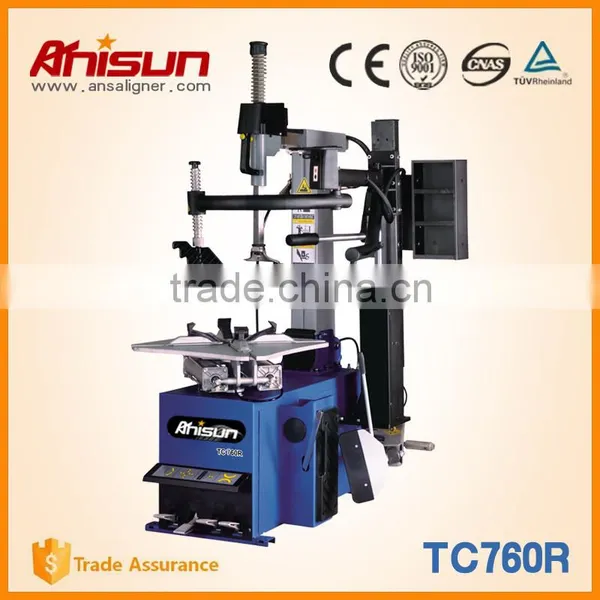

tyre changer full automatic
Introduction :
1, 36 months warranty;
2, CE approved ;
3, OEM,ODM service;
4, Full automatic operation;
5, Available for imported vehicles, with assistant arm.
Details :
1, Atuomatic tyre changer, the column’s tilting and locking processes achieved by the pneumatic control;
2,The turntable can be internal adjusted ,ensure to clamp the tyre from 10’’ to 26’’;
3,Equipped with right helper ,easy to demount and mount stiff tyre;
4,The Φ 80mm air cylinder as the standard configuration for the machine, it can increase the clamp power for the clamps;
5,Front coverof pedal is removable ,it is easy to repair when there is aftersales service problem of the pedal assembly;
6,When the buyer has 3 phase power supply, optional two speed motor, increase the work efficiency;
7,Column adopts the double bend process, making it very srong.The horizontal arm adopts 50mm slide shaft securing the bend resistance strength of the horizontal arm. The hexangular shaft is made of S41 hexangular steel, which can avoid the distortion when operating the stiff tyre.
Technical data:
Max wheel diameter |
1040mm |
Wheel width |
3’’-15’’ |
Outer clamp size |
10’’-24’’ |
Inner clamp size |
13’’-26’’ |
Motor Power |
0.75(220V)/1.1KW(380V) |
Noise Level |
<75db |
Structure :
Features :
1,The quick deflatevalves are installed both ends of the breaker cylinder, to increase the reciprocating speed of the cylinder, the one-way movement canbe completed in 2-3 seconds;
2,The universal switch is 40A with a pure silver touching point ,it can bear great load with a long using life.
3,The bead breaker blade’s design based on the arc shovel,it can rotate at any directions,release more pressure during operation . The bead breaker blade is equipped with the protective cover.
Packing :
Net weight (machine+helper) |
260KG+69KG=329KG |
Gross weight (machine+helper) |
295KG+90KG=385KG |
Machine packing size |
1100*860*1020mm |
Helper packing size |
1280*550*450mm |
Volume |
1.28m3 |
Real photos and packing details :
Our advantage :
1, 15 years for producing tire changer and wheel balancer, for all kinds of the vehicles;
2,Occupying 42% market share in China ;
3, We offer exclusive service for the garages , Vehicle workshops;
4,The delivery time is so short , most are in stock .
Our quality guarantee on tire changers(more than 10 years life time )
(Key advantages)
Mechnical body parts :
Standard processing and assembling;
Electrical parts :
1, Aluminium-alloy casing motor , passed CE, not steel shell ones ;
2,Switch : 20A or 40A ,pure silver touching point , instead of 16A,and copper from other suppliers ;
Accessories :
Pneumatic parts : ≥ 100000 times test.
Gear box : made of copper and aluminium , and inject gear oil , to keep the box more durable , ≥ 10 years lift time . Cheap gearbox is made of steel , ≤ 5 years life time , and grease are added , it will go thicker by the time .
Our serive:
1, All of the componenet has passed CE and ISO standard ;
2 , Warranty time is 12 months ,and if there is anything wrong about our products when exceed 12 months , just contact us .We will send the components to you freely .or we will help you online directly ;
3, With imported machine sets , we produce best quality tire changers ,and adopt the Italian technology ;
4,The key parts are imported directly ,all of our product are tested well before delivery .
We welcome you to be our agents in the local market . and more questions ,pls contact :
