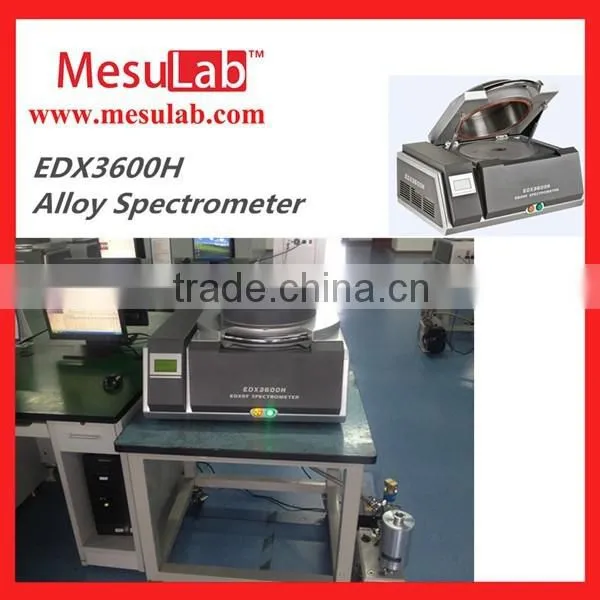

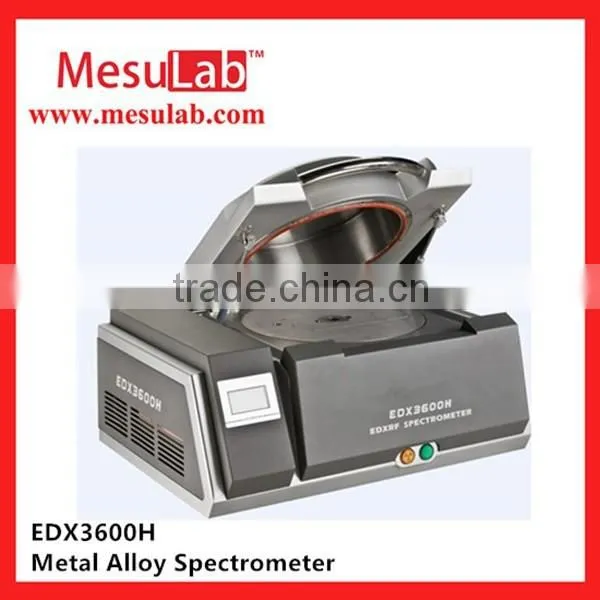

EDX3600H Metal Alloy spectrometer test copper alloy
Feature

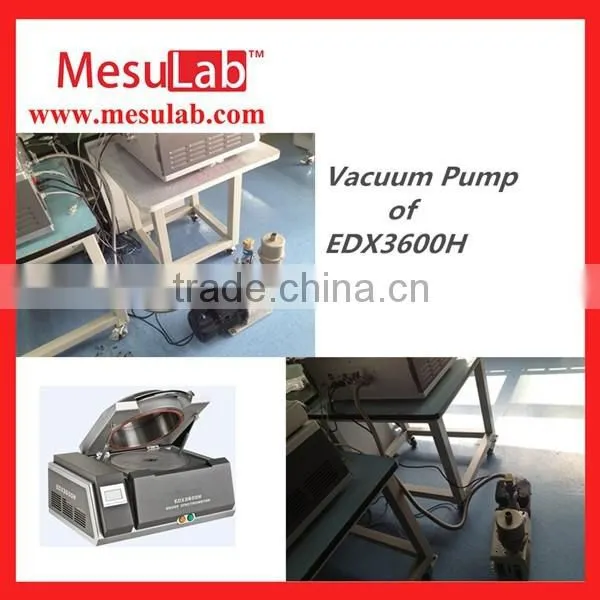

Developed for testing Alloy test, S100 detector, excellent energy linearity, energy resolution and energy spectrum characteristics. Higher peak-to-background ratio.Low energy X-rays are used, delivering good results when exciting light elements such as CI, Br. Intelligent pumping vacuum system; shield air influence and enlarge testing scope. Auto spectrum stabilizer. High SNR electronic circuit unit. Auto collimator and filter switch, exempt from trouble by manual. Spectrum unfolding technology decomposes the spectrum peak; ensuring CI, Br and other light elements testing have the equal analysis accuracy. Multiple linear
regression, reducing the inter elemental absorption and enhancement effect. In-built CCD with high resolution. LCD makes the important parameter (tube voltage, tube current, vacuum) of the instrument obvious.
Technical specifications
Model |
EDX3600H |
Measurable elements |
Na to U |
Element contents |
1ppm—99.99% |
Ability of simultaneous analysis |
Simultaneously analysis of 24 elements. |
Plating thickness |
up to 0.005um each layer; it is able to analyze plating with more than 3 layers |
Analysis accuracy |
0.05% |
Measurement time |
60s-200s |
Energy resolution |
(150±5)eV |
Tube voltage |
5KV-50KV |
Tube current |
50uA-1000uA |
Forms of samples |
powder, solid and liquid |
|
Standard Accessories
|
Halogen testing, X-ray tube of high efficiency. |
