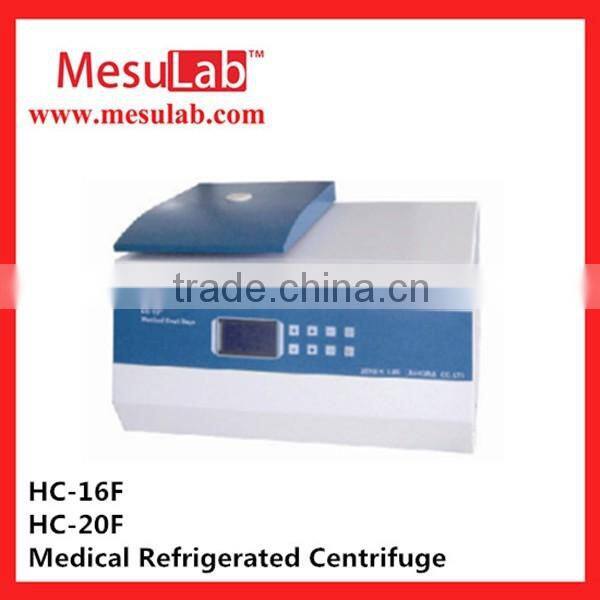

HC-20F Medical Refrigerated Centrifuge
Features
Horizontal-type
DC Brushless frequency motor,
French TECUMSEH refrigeration compressor
LED display speed, RCF and timer
Enabling automatic malfunction alarm
Touch panel control,
With safety switch and electromagnetic door locks
Error code display, speed up and down adjustment
Suitable for researches on genes and proteinnucleic acid
LCD display optional, Inverter Motor
Specifications
Model | HC-16F | HC-20F |
Max. RPM | 16000 RPM, stepless speed adjustment , LED display speed,RCF and timer | 20000 RPM, stepless speed adjustment , LED display speed,RCF and timer |
Max. RCF | 17800*g | 26500*g |
Timer | 0-99min | 0-99min |
Rotor Capacity | Angle Rotor 1.5ml/2ml *12 (standard) | Angle Rotor 1.5ml/2ml *12 (standard) |
Temperature Range | -20℃~+40℃ | -20℃~+40℃ |
Temperature accuracy | ±2℃ | ±2℃ |
Voltage | 220V 50Hz | 220V 50Hz |
Dimension(mm) | 560*460*370mm / 760*520*390mm | 560*460*370mm / 760*520*390mm |
Weight | 65kg / 100kg | 65kg / 100kg |
For model HC-16F | ||||
Description | Ordering number | Max. speed | Rotor capacity | Max. RCF |
Optional rotor 1 | A160212 | 16000 | 1.5/2 ml× 12 | 17800×g |
Optional rotor 2 | A130224 | 13000 | 1.5/2 ml× 24 | 15800×g |
Optional rotor 3 | A121012 | 12000 | 10ml×12 | 14300×g |
Optional rotor 4 | A130510 | 13000 | 5ml×10 | 11400×g |
Optional rotor 5 | A115006 | 11000 | 50ml×6 | 11000×g |
Optional rotor 6 | A130548 | 13000 | 0.5ml×48 | 12800×g |
Optional rotor 7 | A1010004 | 10000 | 100ml×4 | 9680×g |
Optional rotor 8 | S044802 | 4000 | 48 holes microplate×2 | 1400×g |
For model HC-20F | ||||
Description | Ordering number | Max. speed | Rotor capacity | Max. RCF |
Optional rotor 1 | A200212 | 20000 | 1.5/2 ml× 12 | 27800×g |
Optional rotor 2 | A130224 | 13500 | 1.5/2 ml×24 | 17000×g |
Optional rotor 3 | A121012 | 12000 | 10ml×12 | 14300×g |
Optional rotor 4 | A130510 | 13000 | 5ml×10 | 11400×g |
Optional rotor 5 | A115006 | 11000 | 50ml×6 | 11000×g |
Optional rotor 6 | A130548 | 13000 | 0.5ml×48 | 12800×g |
Optional rotor 7 | A1010004 | 10000 | 100ml×4 | 9680×g |
Optional rotor 8 | S044802 | 4000 | 48 holes microplate×2 | 1400×g |
