Home > Products > linear light module > Bread lamp module series 5 W LED light engine integrated with IC
Bread lamp module series 5 W LED light engine integrated with IC
- 0 per Month
- SHENZHEN
- T/T Credit Card
- 8mm straw hat led diode with blue light
- 2*3*4mm water clear lens square led diode without flangesquare led diode
- AC LED 3W 5W 7W 9W 12W 15W 2835SMD WITH IC
- 6w 8w 10w 12w 15w 18w 20w T5 T8 module series LED light engine integrated with IC aluminum tube light fast delivery ac chip
- T5/T8 module series 20W LED light engine integrated with IC
- T5/T8 module series 15W LED light engine integrated with IC
Product Details

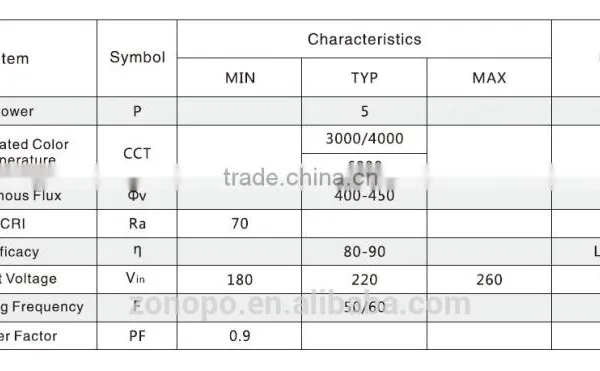

Model Number: | 5730-5W-10LED+350*150MM | Emitting Color: | Warm White | Luminous Flux(lm): | 400-450LM |
Power: | 5W | Color Rendering Index(Ra): | 70 | Color Temperature: | 3000/4000/6000K |
Operating Temperature(℃): | -10, 70 | Storage Temperature(℃): | -40, 100 | Place of Origin: | Guangdong, China |
Brand Name: | ZONOPO |
Product Description
FEATURES
1. Directly connect to 110/220VAC input voltage, without AC/DC conversion;
2. Advanced IC technology, no electrolytic capacitor and transformer lead to longer life;
3. Compact size, flexible and innovative design;
4. High PF (>0.9) and low THD(<20%). Easier to pass EMC test and other certificate tests;
5. High energy conversion efficiency (>90%) and high luminous efficiency(>80lm/W);
6. Mos dimming and triac/leading edge dimming available;
7. Applicable to bulbs, candle lights, down lights, ceiling lights, etc.
8. Professional OEM & ODM service. Different luminous efficiency, Ra, size and shape etc. can be customized.
Our Factory
Located in Huizhou Zhongkai Hi-tech industrial zone, a national LED industrial base,
Guangdong ZONOPO Intelligent Technologies Co., Ltd. is a national Hi-tech enterprise
which recognized by the Ministry of Industry and a "double soft" (software enterprise
and software product certification) enterprise.
