Shear beam type load cell
- 1000 Piece / Pieces per Month
- Guangzhou
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | GTEE | Model Number: | GTLC-1003 |
Usage: | Other, for weighing scales | Theory: | Resistance Sensor | Output: | Analog Sensor |
Packaging Details
Carton
Product Description
Specifications
Alloy steel & stainless steel structure; glue-sealing, nickel plated, waterproof and anti-corrosion.
Brief introduction
Alloy steel & stainless steel structure; glue-sealing, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, truck scale, floor scale and other electronic weighing devices.
It uses 4-core shielded cable, Specifications: φ5*3000mm.
Technical parameters
Rated load | 0.5-2t /2.5-5t /10t / 1.5-4klb /5-15klb |
Precision | C2 & C3 |
Comprehensive error | ±0.03%FS & ±0.02%FS |
Rated output | 3.0±0.003mv/v |
Creep | ±0.024%FS/30min ±0.016%FS/30min |
Zero balance | 1.0%FS |
Input resistance | 350±5Ω |
Output resistance | 350±3Ω |
Insulation resistance | ≥5000MΩ (100VDC) |
Temp. effect on span | ±0.017%FS/10degree & ±0.011%FS/10degree |
Temp. effect on zero | ±0.023%FS/10degree& ±0.015%FS/10degree |
Compensated temp. range | -10 ~ +40degree |
Use temp. range | -20 ~ +55degree |
Excitation voltage | 9 ~ 12VDC |
Safe overload | 150% |
Ultimate overload | 200% |
IP grade | IP66 |

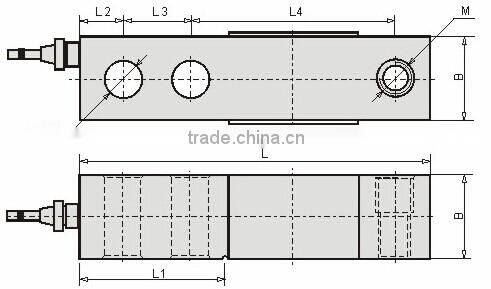

(Dimension unit: mm)
Rated load | L | L1 | L2 | L3 | L4 | d | B | M |
0.5-2t 1.5-4klb | 130 | 56.5 | 15.8 | 25.4 | 76.2 | 13.5 | 31.8 | M16*2 |
2.5-5t 5-15klb | 171.5 | 77.2 | 19.1 | 38.1 | 95.3 | 20 | 38.1 | M20*2.5 |
10t 20klb | 222.3 | 101.6 | 25.4 | 50.8 | 120.7 | 26.2 | 50.8 | M24*2 |
