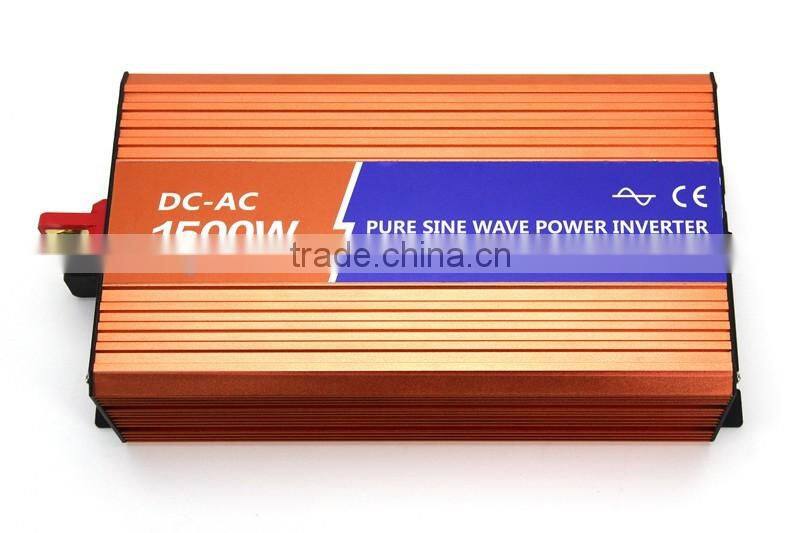

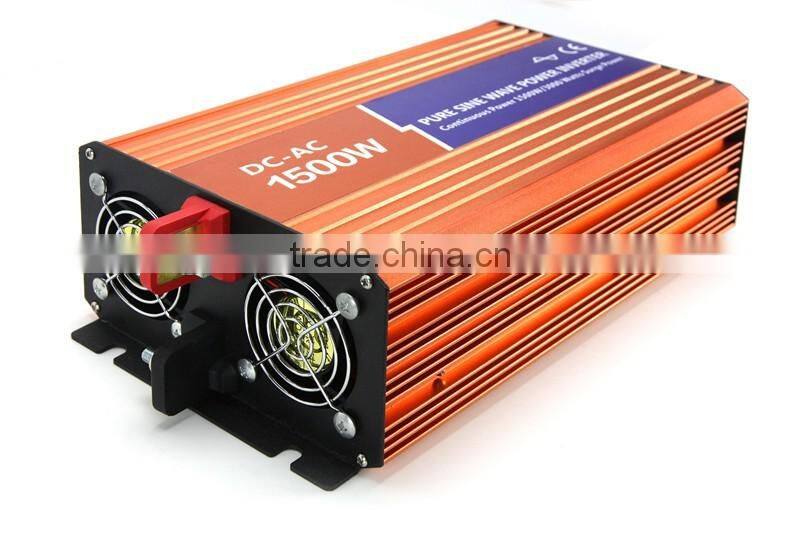

power converter 1.5kw dc/ac converter 24v to 220v
| Model | LR-12P300-1 | LR-24P300-1 | LR-48P300-1 | LR-12P300-2 | LR-24P300-2 | LR-48P300-2 |
| Continuous Power | 1500W | |||||
| Surge Power | 3000W | |||||
| DC Voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| AC Voltage | 100VAC or 110VAC or 120VAC ±5% | 220VAC or 230VAC or 240VAC ±5% | ||||
| No Load Current Draw | 0.8A | 0.4A | 0.2A | 0.8A | 0.4A | 0.2A |
| Frequency | 50HZ±0.5HZ or 60HZ±0.5HZ | |||||
| Wave Form | Pure Sine Wave | |||||
| AC Regulation | THD<3%(Linear load) | |||||
| USB Outlet | 5V 500MA | |||||
| Output efficiency | Highest94% | |||||
| DC Voltage Range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V | 10±0.5V | 20±0.5V | 40±1V |
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
| Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±0.5V |
| Over Voltage Recovery | 14.8V±0.5V | 29.5±0.5V | 59V±1V | 14.8±0.5V | 29.5±0.5V | 59V±0.5V |
| Protection | Low Voltage/Over Voltage | LED Alarm and Automatic Recovery | ||||
| Overload | LED Alarm and Automatic Recovery | |||||
| Over Temperature | LED Alarm and Automatic Recovery | |||||
| Short Circuit | LED Alarm and Automatic Recovery | |||||
| Input Oppose | Diode or Mos FET | |||||
| Working Temperature | -10°- +50° | Quantity/Carton | 4PCS | |||
| Storage Temperature | -30°- +70° | Carton Size | 507*440*385(mm) | |||
| Production Size | 280*169*86(mm) | Carton Weight | 19kg | |||
| Packing Size | 360*198*115(mm) | Warranty | 2 Years | |||
| N.W/G.W(KG) | 3.60/4.10KG | Start | Bipolar soft-start | |||
| Certification | CE&ROSH | Cooling Way | Intelligent Cooling Fan |
|||
Packing:
1. Protect product with polyfoam and multi layer paper board.
2. Special protect carton for exporting product.
3. Per customer requirement.
Shipping:
Our Service & Advantages:
1.Reply your inquiry in 24 working hours.
2. Professional staff answer all your questions in fluent English.
3. More than 8 years experience to manufacture for the controller and power
supply in China.
4.Engaged in researching and developing for the high technology and with some patent.
5.A team of designers and engineers are capable to create new items according to customer request.
6.2years warranty!
7.Welcome OEM and ODM.
8.Cooperate with some famous company.
9. Quality is our culture.
10. Provide good customer service is our obligation.
(HK Leovy) Guangzhou Lang Rui Electronic Technology Co. , Ltd
is a high-tech enterprise which is engaged in the design, development, production switching power series products. we are a professional manufacturer of power supplies.
We have 8 years of experience in research and development production.
The EFC capacitors and our own transformer make our products have 2 years warranty,The payment terms which we accept L/C T/T westion union and paypal !
We get a good feedback from our customers ,what we want to do is make your business easy , We accept OEM and Sample order,MOQ IS 1PC .
How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave inverter. For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on. Modified wave can be started with some inductive loads, but effect for load using life, because capacitive loads and inductive loads need high quality power.
How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the size of the inverter.
Notice: resistive load: you can choose the same power as the load.
Capacitive loads: according to the load, you can choose 2-5 times power.
Inductive loads: according to the load, you can choose 4-7 times power.
How connection between batteries and an inverter?
We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.
How to calculate the load of working hours requires configuration of the battery size?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss, so this is only a reference value:
Work hours = battery capacity * battery voltage *0.8/load power (H= AH*V*0.8/W)
How to choose a solar controller?
At present, solar controller have MPPT and PWM. According to our actual test data, conversion efficiency of the PWM controller normally less than 70%, MPPT controller conversion efficiency is about 95-97%. MPPT solar controller is expensive than PWN solar controller, but the price of solar module are more expensive. Using MPPT controller, you can reduce the solar module, save the cost of the entire system
How to choose a suitable MPPT solar charge controller?
MPPT solar controller support PV input voltage 18V-150V, DC 12V 24V is automatic identification. You just need according to battery capacity to select different charging current controller.
