Leadsun LS-ESP40KV/50mA High Voltage Power Supply Electrostatic Separation

Leadsun LS-ESP40KV/50mA High Voltage Power Supply Electrostatic Separation thumbnail-1
Leadsun LS-ESP40KV/50mA High Voltage Power Supply Electrostatic Separation thumbnail-2

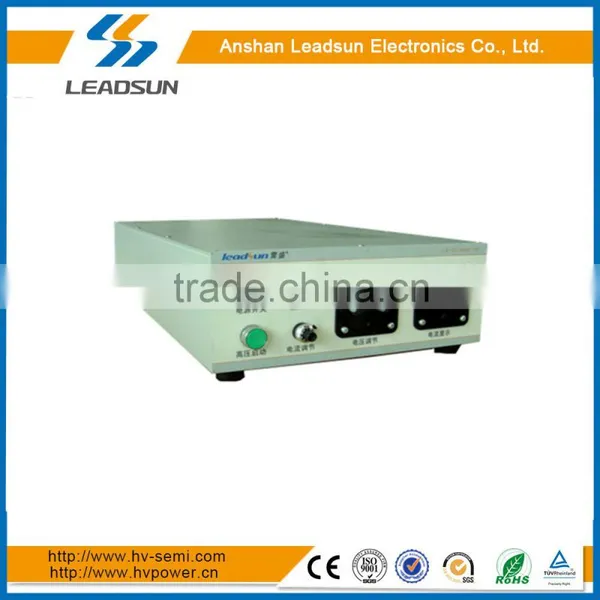

Leadsun LS-ESP40KV/50mA High Voltage Power Supply Electrostatic Separation photo-1

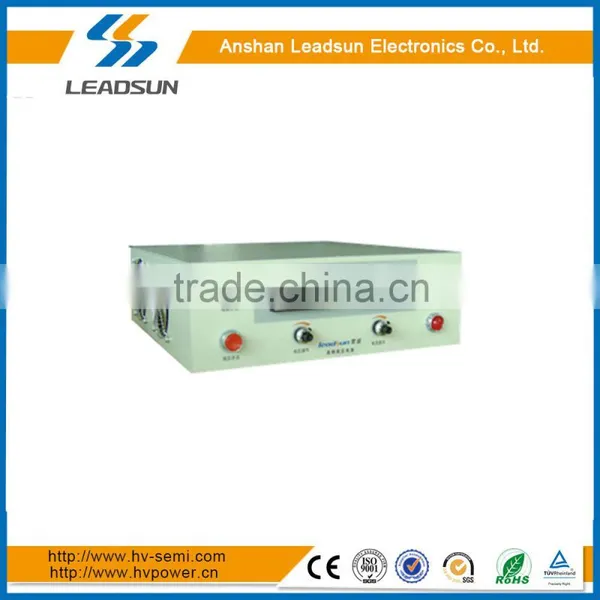

Leadsun LS-ESP40KV/50mA High Voltage Power Supply Electrostatic Separation photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
Leadsun
Model Number:
LS-ESP40KV/50mA
Contact Supplier Request Quote Chat Now
Anshan Leadsun Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name Leadsun
Model Number LS-ESP40KV/50mA
Input Voltage 220V
Output Voltage 40KV
Output Power 2KW
Output Frequency 30kHz
Output Current 50mA
Product Description

High Frequency High Voltage Power Supply

LS-ESP40KV/50mA Specifications

Items
Parameters
Remarks
Input voltage
AC single phase 220V or 208V
185VAC-250VAC
Rated power
2kW
Full load, output Umax, Imax
Rated output voltage
40KV
Rated output current
50mA
Relative voltage control accuracy
3%
Uo=80%*Umax
Absolute voltage control accuracy
5%
Uo=80%*Umax
Voltage/temperature coefficient
100V/1K
Voltage program accuracy
Better than 1.0%
Voltage output range
0-40KV adjustable
Output limiting current
50mA
Control response time
Better than 20mS
Ambient temperature
-20 ~ 50℃
Warm start time
<0.5 Second
Cool start time
<8 Second
Ambient humidity
10%-90% no atomization
Cooling
Air cooling
Starting
Soft start
Constant voltage control mode
Phase shift PWM
Current contro; mode
Constant current of average value
Peak value testing
Within 100nS overlanding, cut off and restart automatically
Working Frequency
30kHz
Exchanging frequency
Better than 80%
Output voltage from 50%-75%,
efficienc 80%-90%
Voltage regulation rate
<1.0%%
20mA--->50mA
Dimension
370*200*750mm
L*B*H
Current voltage program mode
By 10 turns potentiometer with display
Related Products
Packing & Shipping

Packing: 1 in one wooden box

Certifications
Patent
No.
Industrial waste gas treatment of high frequency high voltage power supply
ZL 2013 2 0269785.3
EHV adjustable ventilation load device
ZL 2012 2 0096537.9
High frequency high power pulse laser power supply
ZL 2012 2 0099007.x
Combined PCB high-voltage load device
ZL 2012 2 0098995.6
High frequency voltage multiplier assembly
ZL 2012 2 0099008.4
Dry type high frequency high voltage transformer
ZL 2012 2 0098417.2
Power resistive load test device
ZL 2012 20096569.9
High power high voltage plug
ZL 2012 2 2299106.8
Campony & Services

·Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports

 including design,operation, adjustment and failure analysis.
·Leadsun has latest standard product assembly series, including worldwide popular product series, and special cusomized

 series. There are thousands of types and models for your choosing
·Leadsun technical center record every order and product characteristics; sales department focus on market development

 tendency, will supply you full service.
·leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success.

 We keep focusing on product innovation and development to stay ahead in the industry.
·Year 2014, Leadsun will move to new industrial cener,new platform, new hope,dream starts here.
