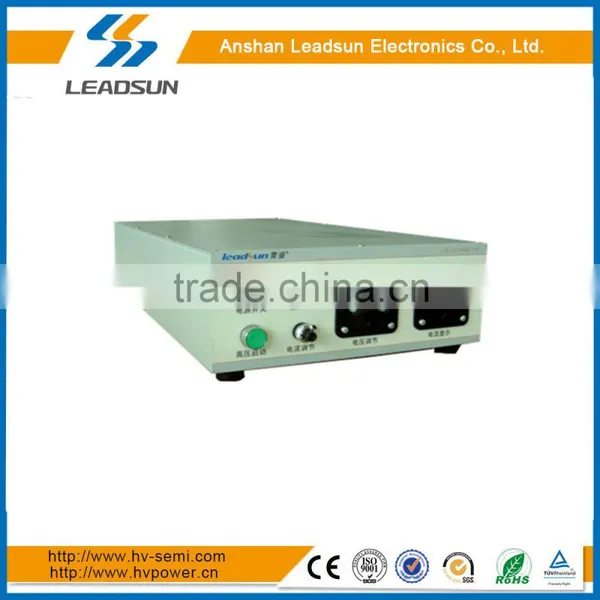

Leadsun LP 35KV/35mA High Voltage Power Supply Electrostatic Flocking

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Dalian
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	Leadsun
Model Number	LP 35KV/35mA	Input Voltage	220V AC
Output Voltage	35KV	Output Power	1200W
Output Frequency	20kHz	Output Current	35mA

Product Description

High Frequency High Voltage Power Supply

LP 35KV/35mA Specifications

Items	Parameters	Remarks
Input voltage	220V AC	Wave less than 10%
Rated power	1200W	Full load, output Umax, Imax
Rated output voltage	35KV
Rated output current	35mA
Relative voltage control accuracy	3%	Uo=80%*Umax
Absolute voltage control accuracy	5%	Uo=80%*Umax
Voltage/temperature coefficient	100V/1K
Voltage program accuracy	Better than 5%
Voltage output range	10-35KV adjustable
Output limiting current	35mA
Control response time	Better than 50mS
Ambient temperature	-20 ~ 50℃
Ambient humidity	10%-90% no atomization
Cooling	Air cooling
Starting	Soft start
Constant voltage control mode	Phase shift PWM
Current contro; mode	Constant current of average value Peak value testing	Within 100nS overlanding, cut off and restart automatically
Working Frequency	20kHz
Exchanging frequency	Better than 80%	Output voltage from 50%-75%, efficienc 80%-90%
Voltage regulation rate	5%
Dimension	250370650mm	LBH
Current voltage program mode	By potentiometer

Related Products

Packing & Shipping

Packing:1 in one wooden box

Certifications

Patent	No.
Industrial waste gas treatment of high frequency high voltage power supply	ZL 2013 2 0269785.3
EHV adjustable ventilation load device	ZL 2012 2 0096537.9
High frequency high power pulse laser power supply	ZL 2012 2 0099007.x
Combined PCB high-voltage load device	ZL 2012 2 0098995.6
High frequency voltage multiplier assembly	ZL 2012 2 0099008.4
Dry type high frequency high voltage transformer	ZL 2012 2 0098417.2
Power resistive load test device	ZL 2012 20096569.9
High power high voltage plug	ZL 2012 2 2299106.8

Campony & Services

·Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports

including design,operation, adjustment and failure analysis.
·Leadsun has latest standard product assembly series, including worldwide popular product series, and special cusomized

series. There are thousands of types and models for your choosing
·Leadsun technical center record every order and product characteristics; sales department focus on market development

tendency, will supply you full service.
·leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success.

We keep focusing on product innovation and development to stay ahead in the industry.
·Year 2014, Leadsun will move to new industrial cener,new platform, new hope,dream starts here.
