2CL20KV20mA Top Grade Cheapest Particle Accelerater Diode

2CL20KV20mA Top Grade Cheapest Particle Accelerater Diode thumbnail-1
2CL20KV20mA Top Grade Cheapest Particle Accelerater Diode photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
Leadsun
Model Number:
2CL20KV/3.0A
Contact Supplier Request Quote Chat Now
Anshan Leadsun Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name Leadsun
Model Number 2CL20KV/3.0A
Type Silicon Controlled Rectifier
Application Other, electrostatic cleaning
Package Type Throught Hole
Peak Repetitive Reverse Voltage 20.0V
Peak Non-Repetitive Reverse Voltage 22.0V
Mean On-State Current 3.0A

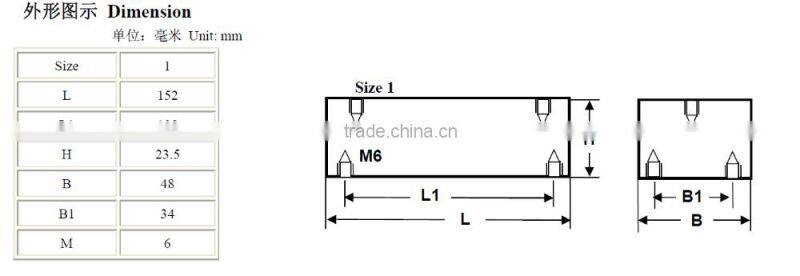

Dimensions 152*138*23.5mm
Product Descripition

Leadsun 2CL20KV/3.0A high voltage rectifier blocks Low reverse leakage

High voltagerectifier blocks using high reliable mesa structure and diffusion craftwork, epoxy resin molded in compact structure.

Feature:

Avalance characteristic

More sizes available

Vacuum molded, non-corrosive epoxy resin case

Tj: -40℃~+150℃

Application:

High voltage rectifier used in electrostatic cleaning

High voltage testing equipment

General purpose high voltage rectifier

Extreme (Absolute Maximum Rating)

Item
Symbol
Unit
Conditions
Voltage
Repetitive Peak Reverse Voltage
VRRM
KV
Ta=25℃  IR=0.1μA
20.0
Peak working Reverse Voltage
VRWM
KV
Ta=25℃  IR=0.1μA
20.0
Non-Repetitive Peak Reverse Voltage
VRSM
KV
Ta=25℃  IR=0.1μA
22.0
Average Forward Current
Io
A
50HZ Half-sine Wave, Resistance load @Tbreak=50℃
3.0
Surge Forward Output Current
IFSM
A
0.01S @ Half-Sine Wave 50HZ
100
Operating Ambient Temperature
Ta
℃

-40~150
Junction and Storage Temperature
Tstg
℃

-40~150

Electrical Characteristics (Ta=25℃)

Forward Peak Voltage
VFM
V
@Ta=25℃  IF=3.0A
24.0

Peak Reverse Current
IRRM1
μA
@Ta=25℃  VRM=VRRM
5.0
IRRM2
μA
@Ta=100℃  VRM=VRRM
100.0
Related Products
Packing & Shipping

Packing: 200 pcs in one bag, 25 bags in one carton
