High Voltage Rectifier Block HVP-16 High Frequency Machine

High Voltage Rectifier Block HVP-16 High Frequency Machine thumbnail-1
High Voltage Rectifier Block HVP-16 High Frequency Machine thumbnail-2
High Voltage Rectifier Block HVP-16 High Frequency Machine photo-1

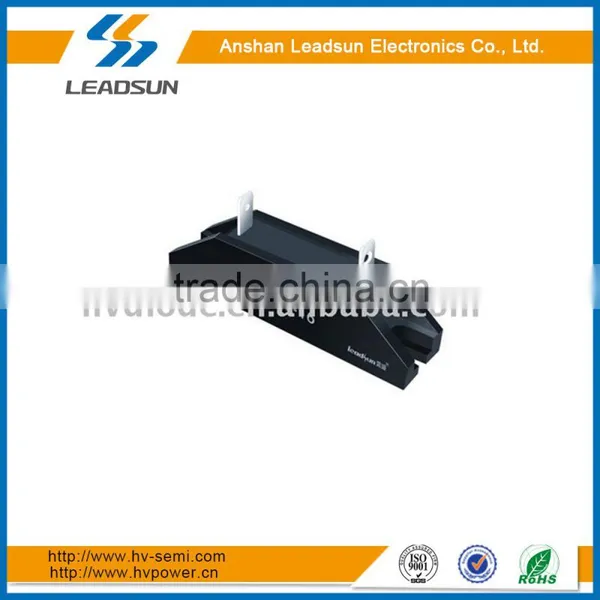

High Voltage Rectifier Block HVP-16 High Frequency Machine photo-2
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
Leadsun
Model Number:
HVP16
Contact Supplier Request Quote Chat Now
Anshan Leadsun Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name Leadsun
Model Number HVP16
Type Rectifier Diode
Package Type Surface Mount
Max. Forward Voltage 24V
Max. Reverse Voltage 16KV
Max. Forward Current 1.0A
Max. Reverse Current 5.0uA
Product Descripition

HVP-16 High voltagerectifier blocks using high reliable mesa structure and diffusion craftwork, epoxy resin molded in compact structure.

Feature:

Avalance characteristic

More sizes available

Vacuum molded, non-corrosive epoxy resin case

Tj: -40℃~+120℃

Application:

High voltage rectifier used in electrostatic cleaning

High voltage testing equipment

General purpose high voltage rectifier

Extreme (Absolute Maximum Rating)

Item
Symbol
Unit
Conditions
Voltage
Repetitive Peak Reverse Voltage
VRRM
KV
Ta=25℃  IR=0.5μA
16
Peak working Reverse Voltage
VRWM
KV
Ta=25℃  IR=0.5μA
16
Non-Repetitive Peak Reverse Voltage
VRSM
KV
Ta=25℃  IR=0.5μA
17.5
Average Forward Current
Io
A
50HZ Half-sine Wave, Resistance load @Tbreak=50℃
1.0
Surge Forward Output Current
IFSM
A
0.01S @ Half-Sine Wave 50HZ
30
Operating Ambient Temperature
Ta
℃

-40~120
Junction and Storage Temperature
Tstg
℃

-40~120

Electrical Characteristics (Ta=25℃)

Forward Peak Voltage
VFM
V
@Ta=25℃  IF=1.0A
16.0

Peak Reverse Current
IRRM1
μA
@Ta=25℃  VRM=VRRM
2.0max
IRRM2
μA
@Ta=100℃  VRM=VRRM
10.0max
Related Products
Packing & Shipping

Packing: 25 pcs in one carton

Certifications
Patent
No.
Industrial waste gas treatment of high frequency high voltage power supply
ZL 2013 2 0269785.3
EHV adjustable ventilation load device
ZL 2012 2 0096537.9
High frequency high power pulse laser power supply
ZL 2012 2 0099007.x
Combined PCB high-voltage load device
ZL 2012 2 0098995.6
High frequency voltage multiplier assembly
ZL 2012 2 0099008.4
Dry type high frequency high voltage transformer
ZL 2012 2 0098417.2
Power resistive load test device
ZL 2012 20096569.9
High power high voltage plug
ZL 2012 2 2299106.8
Campony & Services

·Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports

 including design,operation, adjustment and failure analysis.
·Leadsun has latest standard product assembly series, including worldwide popular product series, and special cusomized

 series. There are thousands of types and models for your choosing
·Leadsun technical center record every order and product characteristics; sales department focus on market development

 tendency, will supply you full service.
·leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success.

 We keep focusing on product innovation and development to stay ahead in the industry.
·Year 2014, Leadsun will move to new industrial cener,new platform, new hope,dream starts here.
