1. Factory Introduction

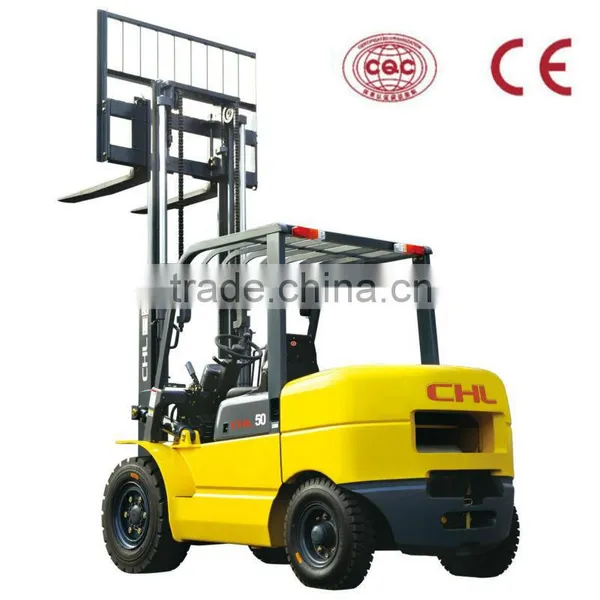

2. Products Show
3. Details picture
4. Product testing
5. Product Standard Configuration
| Fork | Tool | Transmission oil dipstick | Backrest |
| Overhead guard | Horn | Reversing light | Hour meter |
| Oil lever gauge | Charging indicator | Water temperature gauge | Oil pressure alarm |
| Steering indicator | Wide view mast | Standard seat | Front lamp |
| Rear combined light | Redal pad | Overhead guard rain cover | Transmission oil filter element |
| Backward buzzer | Traction pin | Hydraulic oil return circuit filer element | Neutral gear safety swith |
| Control valve | Air inletting device | Liftingand tilting operation lever | Cable type packing brake |
| Hydraulic oil dipstick | Preheating indicator | Whoolley hydraulicpowered steering | Lifting oil circuit flow regulator |
| Durable tread tyre | Whirlwind air cleaner | Tilting adjustale steering column | Engine automatic preheating system |
6. Forklift Optional Devices and Accessories
| Cabin | Speedometer | Fire extinguisher | Solid tyre |
| Rear working lamp | Auxiliary pipline | Transmission oil temperature gauge | Customer made color |
| Suspension seat | Warm air blower | High air exhaustiong device | Tilt cylinder jacket |
7. Forklift Specifications
| Model | CPCD40-WX5 | |||||
| Power unit | Diesel | |||||
| Rated Capacity | kg | 4000 | ||||
| Load Center | mm | 500 | ||||
| Overall max.lifting height(with backrest) | h4 | mm | 4250 | |||
| Standard Lifting height | h3 | 3000 | ||||
| Height mast retracted(upright) | h1 | mm | 2275 | |||
| Free lift height | h2 | mm | 150 | |||
| Backrest height(from upper face of forks) | h8 | mm | 1250 | |||
| Overall height(overhead guard) | h6 | mm | 2270 | |||
| Overall length(with forks/without forks) | L1/L2 | mm | 4145/3075 | |||
| Front overhang | X | mm | 555 | |||
| Rear overhang | L4 | mm | 520 | |||
| Wheel base | L5 | mm | 2000 | |||
| Coupler height | h5 | mm | 300 | |||
| Min.groud clearance under mast | m1 | mm | 175 | |||
| Overall width | B | mm | 1480 | |||
| Lateral fork adjustment outside of fork(Max./Min.) | R | mm | 1340/300 | |||
| Tread(front/rear) | S/P | mm | 1180/1190 | |||
| Outside turning radius | Wa | mm | 2720 | |||
| Inside turning radius | V | mm | 220 | |||
| Min.intersecting aisle | Ra | mm | 2480 | |||
| Tilting angles(forward/backward) | α/β | 6°/12° | ||||
| Fork dimensions(axbxc) | mm | 1070*150*50 | ||||
| Service Mass | kg | 6400 | ||||
| Wheels number front/rear(x=driven) | 2X/2 | |||||
| Tyre Type | Pneumatic | |||||
| Service Brake | Hydraulic Type | |||||
| Paking Brake | Mechanical Manual Type | |||||
| Battery(Voltage/Capacity) | V/Ah | 24/80 | ||||
| Engine Model | Xichai Ca4110 | |||||
| Engine Fuel | Diesel |
|||||
8. Forklift Optional attachments
9. Product warranty term
- 15 months or 2000 working hours (which comes first).
- We provide the replacement parts for free within the warranty period.
10. Certificates
11. FAQ
1. Who is HELI ?
HELI is the forklift first brand in China. Racking Top 9 in the global forklift Suppliers in 2012 year. Market share 32% in domestic market
and export to more than 150 countries.
2. What is brand CHL?
CHL is a new brand created by the HELI factory on 2013. It is a new business of HELI.
3. What is the difference between HELI brand forklift and CHL brand forklift ?
| Same | Difference |
| Same Factory | Different Painting Color |
| Same Components | Different Brand Name |
| Same Assembly Line | Different Brand Name |
| Same Support Team | Better Price |
4. Who is Shintool ?
Shintool machinery is the company which been officially authorized by HELI factory to sell brand “CHL” forklift which produced by the
HELI factory.
We are sincerely looking for dealers for CHL forklifts in worldwide market,
and welcome your contact any time!
12. Our Services
At Shintool machinery, we supply ONE-STOP- SHOP solution service for warehouse equipments and Chinese brand forklift
parts
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business
with us and - also any other Chinese suppliers, we can be the position of supplying ONE STOP- SHOP export service. Our nearest
export port is Shanghai, and Ningbo.
We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one
B/L supply and other export issue service.
13. Business Range
14. Contact Us
