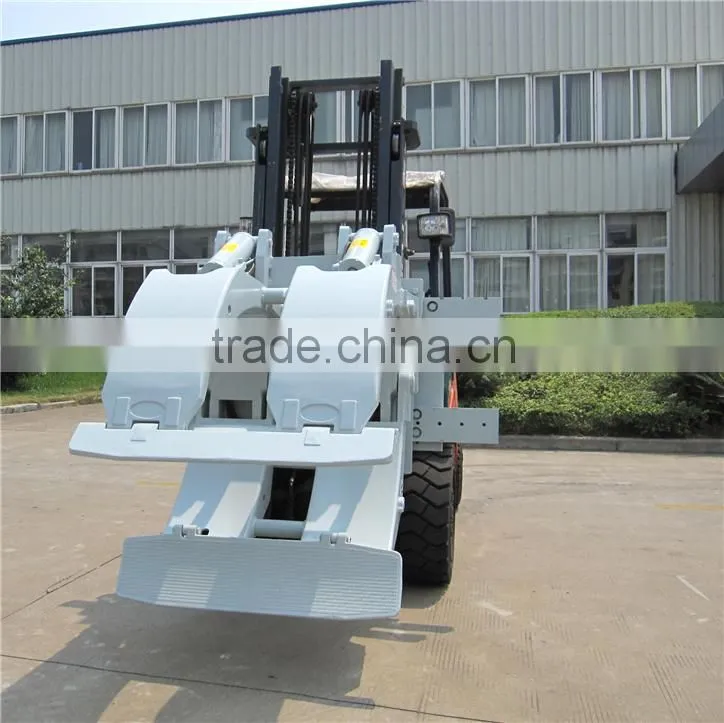

Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck

Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck thumbnail-1
Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck thumbnail-2
Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck thumbnail-3
Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck photo-1

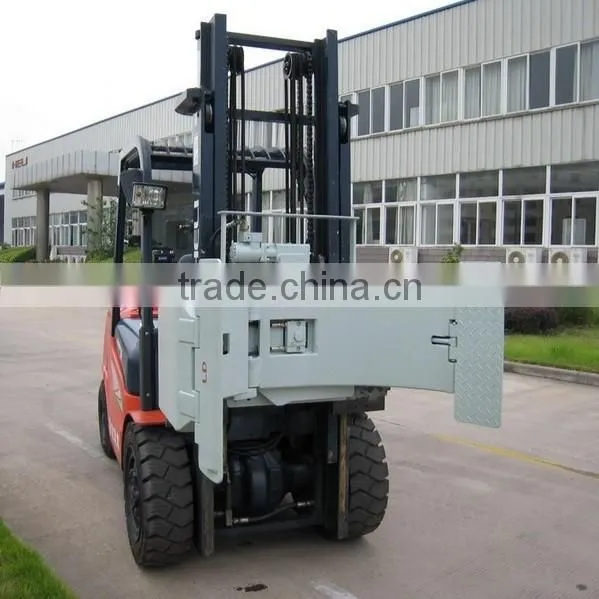

Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck photo-2

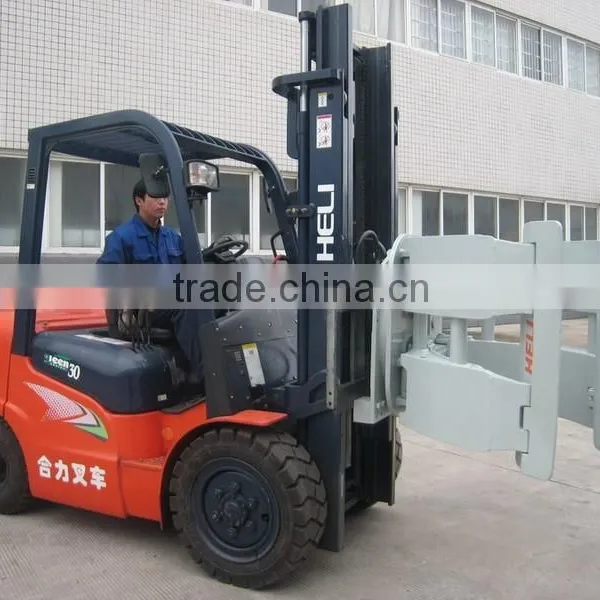

Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck photo-3
US$ 8,000 - 14,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
CHL
Contact Supplier Request Quote Chat Now
Hangzhou Shintool Machinery Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Nanjing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name CHL
Model Number CPCD30
Type Other, Clamp Forklift Truck
Power Souce Diesel Engine
Rated Loading Capacity 3000kg
Max. Lifting Height 7000mm
Min. Lifting Height 3000mm
Fork Length 1070mm
Fork Width 125mm
Overall Dimensions 3752mm*1225mm*2190mm
Certification CQC CE
After-sales Service Provided Overseas third-party support available

CHL Clamp Forklift Truck

CHL is one brand of Anhui HELI Group, which was originally founded in 1958. For the last 22 years, HELI Group has always been the No.1 in China. In 2013, it’s ranking No.8 in the world market.



Based on HELI Group’s rich experience and advanced technology, CHL diesel forklift trucks is with TOP lever quality in China. Last Year, HELI Group sold out more than 85000 units forklifts. Mass production largely help lower our price. And introducing the most advanced SAP-EPR & SAP-PLM system and implementing the "Lean Manufacturing" philosophy ensure CHL forklifts tough, reliable, and competitive.



For every forklift, we ensure longer warranty and complete, prompt after-sale service for you.

CHL diesel forklift trucks, Maximize your value, your best choice.



Product Description



CHL Clamp Forklift Truck You Can Trust

 Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck

Standard Configuration of CHL 2-3.5 ton Clamp Forklift Truck

  • Japan C240 Engine
  • Advanced HELI Atutomatic Hydraulic Transmission
  • Electric-hydraulic Directional Control Valve
  • Duplex Mast Lifting Height 3000mm
  • Pneumatic Tyres, Fork Length 1070mm
  • Comfortable Seat with Armrest and Safe-belt
Fork Tool  Transmission Oil Dipstick Backrest
Overhead Guard  Horn Reversing Light Hour Meter
Oil Lever Gauge Charging Indicator Water Temperature Gauge Oil Pressure Alarm
Steering Indicator Wide View Mast Standard Seat Front Lamp
Rear Combined Light Redal Pad Overhead Guard Rain Cover  Transmission Oil Filter Element
Backward Buzzer Traction Pin   Hydraulic Oil Return Circuit Filer Element Neutral Gear Safety Swith
Control Valve Air Inletting Device Liftingand Tilting Operation Lever Cable Type Packing Brake
Hydraulic Oil Dipstick Preheating Indicator Whoolley Hydraulic Powered Steering Lifting Oil Circuit Flow Regulator
Durable Tread Tyre  Whirlwind Air Cleaner Tilting Adjustale Steering Column Engine Automatic Preheating System

 Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck

Optional Choice of CHL 2-3.5 ton Clamp Forklift Truck

  • Japan 4JG2 Engine or China Xinchang Engine
  • Lifting Height 3m-7m, Full-free Duplex or Triplex Mast
  • Side Shift, Solid Tyres, Suspension Seat
  • Driver’s Cabin, Customized Color, etc.



Cabin Speedometer Fire Extinguisher Solid Tyre
Rear Working Lamp Auxiliary Pipline Transmission Oil Temperature Gauge Customer Made Color
Suspension Seat Warm Air Blower High Air Exhaustiong Device Tilt Cylinder Jacket



 Detailed Pictures of CHL Clamp Forklift Truck Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck



Specification of CHL Clamp Forklift Truck

General Manufacturer   Anhui Heli Co., Ltd
Model    CPCD25 CPCD30 CPCD35
Power Type   Diesel
Rated Capacity kg 2500 3000 3500
Load Center mm 500 500 500
Size Overall max.lifting height(with backrest) mm 4030 4262 4262
Max.Lifting height mm 3000 3000 3000
Height mast retracted(upright) mm 2000 2065 2180
Free lift height mm 170 160 170
Backrest height(from upper face of forks) mm 995 1227 1222
Overall height(overhead guard) mm 2170 2190 2190
Overall length(without forks) mm 3646/2576 3752/2682 3763/2693
Wheel base mm 1600 1700 1700
Min.groud clearance under mast mm 110 135 135
Overall width mm 1170 1225 1225
Lateral fork adjustment(Outside of fork) mm 1024/200 1060/250 1060/250
Tread(front) mm 970/970 1000/970 1000/970
Inside turning radius mm 2240 2400 2420
Outside turning radius mm 160 200 200
Min.intersecting aisle mm 2280 2380 2400
Tilting angles(forward/backward)   6°/12° 6°/12° 6°/12°
Fork Size mm 1070*122*40 1070*125*45 1070*125*50
Service Mass kg 3680 4270 4700
Performance Max.Traveling speeds(laden/unladen) km/h 18/19 19/20 19/19
Lifting Speeds(laden/unladen) mm/s 506/545 465/490 370/400
Lowering Speeds(laden/unladen) mm/s 450/550 450/550 350/370
Max.Draw-bar pull(laden/unladen) kN 18.3/13.3 20/15.8 20/16
Max.Negotiable Gradient(laden/unladen) % 20/20 15/20 20/20
Tyre Wheel (Front/Rear) X=Driving Wheel   2X/2 2X/2 2X/2
Tyre(Front/Rear)   Pneumatic type
Tyre size(Front)   7.00-12-12PR 28x9-15-12PR 28x9-15-14PR
Tyre size(Rear)   6.00-9-10PR 6.50-10-10PR 6.50-10-10PR
Engine Internal Combustion Engine Model   Japan C240PKJ Japan C240PKJ Japan 4JG2
Internal Combustion Engine Rated Output  kw/rpm 35.4/2500 44.9/2450 44.9/2450
Internal Combustion Engine Rated Torque Nm/rpm 139/1800 186.3/1800 186.3/1800
Fuel Tank Capacity L 60 60 60



 AttachmentClamp Forklift Truck With Optional Attachment Clamp Forklift Truck

Manufacturer



 CHL Forklift Manufacturer -- Anhui HELI Group

Clamp Forklift Truck With Optional Attachment Clamp Forklift TruckClamp Forklift Truck With Optional Attachment Clamp Forklift Truck



Treat Quality As Life!

CHL Clamp Forklift Truck, You Can Trust.

   1. Foreign Original Parts

   All key parts of CHL forklifts are from Japan, Germany, and America, especially engine, tranmission parts, sealing, bearings.



   2. Advanced Transmission Technology

    In China, HELI Group is the only one who has core technology and complete transmission production line.

   All key parts are imported from Japan and Germany. HELI technology has been validated by the world market for over 20 years, it can be working continually for 800 hours on average without any trouble. HELI transmission technology is at least 10 years ahead than China other suppliers, the running stability is twice.



   3. Strict Parts Testing

    All parts CHL forklifts use must stand two technicla tests, some are three. HELI Group has a set of very strict procedure in choosing parts suppliers. HELI Group only choose long cooperation suppliers, this largely avoid the risk of breakdown in parts supply chain.

   Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck



    4. Strict Forklift Testing

   In order to make reliabble forklifts, engineers and workers do whole strict tests on every part of CHL forklifts.

Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck



     5. Certificats of CHL Clamp Forklift Truck

Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck



Porduct Warranty



Warranty Of CHL Diesel Forklift

  • Warranty: 15 months or 2000 working hours (which comes first).
  • All warranty parts will be sent at first time by TNT/DHL without any delay and any charge.

  • Over 20000 kinds of main spare parts are in-stock.

  • With advanced SAP system, all parts No. and parts information can be tracked immediately.

Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck Clamp Forklift Truck With Optional Attachment Clamp Forklift Truck




Contact Us



CHL Forklift Range

We supply full range forklift trucks -- Diesel, Gasoline, Lpg, Electric

Diesel: 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 7.5 ton, 8 ton, 10 ton

Gasoline/Lpg: 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton,  4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton

Electric: 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton,  4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton

Heavy Duty: 12 ton -- 46 ton



We only supply forklifts with Top Level Quality and Best After Sale Service.

For best price of CHL Clamp Forklift Truck, welcome your contact any time.
