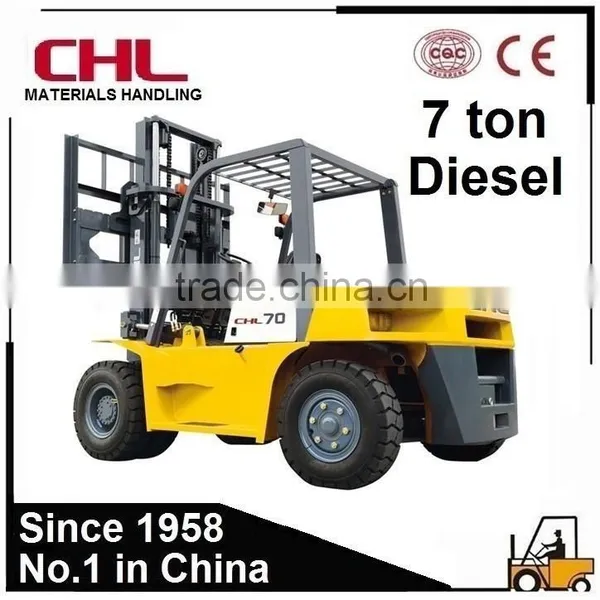

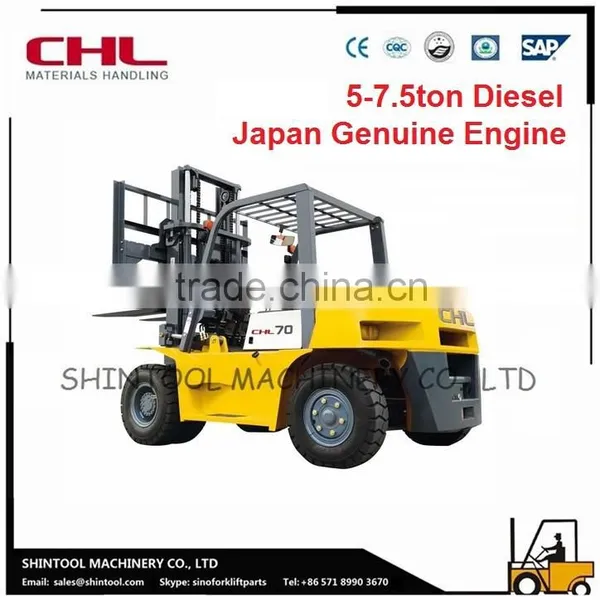

Help CenterCHL Hot Sale 7 Ton Diesel Forklift for Sale
Related Products
-
Diesel Forklift 3.5 Ton Forklift With Japanese Genuine Engine for SaleUS$ 9,000 - 12,000MOQ: 1 Unit -
CHL 3.0 Ton Diesel Forklift With Japanese Genuine EngineUS$ 9,000 - 13,000MOQ: 1 Unit
-
CHL New Diesel 3.0 Ton Diesel With DEUTZ Engine for ForkliftUS$ 9,000 - 12,000MOQ: 1 Unit
-
Diesel 2.5 Ton Forklift With Deutz EngineUS$ 9,000 - 12,000MOQ: 1 Unit
-
CHL 3.5 Ton Battery Forklift With Curtis AC ControllerUS$ 6,000 - 9,000MOQ: 1 Unit
1. Factory Introduction
2. Products Show
3. Details picture
4. Product testing
5. Product Standard Configuration
Hour meter |
Oil pressure alarm | Contral valve (two piece) | Wholly hydraulic powered steering |
| Horn | Rubber pad | Backrest | Rearview mirror |
| Front combined lamp | Transmission oil filter | Engine flameout device | Cable type parking brake |
| Water temperature gauge | Driver`s tool | Rear bombined lamp | Backward buzzer |
| Tilt cylinder self lock valve | Tilting adjustalbe steering column | Overhead guard | Standard fork |
| Neutral switch | Hydraulic oil return circuit filter | Flow regulator | Oil lever gauge |
| Charging indicator | Wide view mast | Air intaking device | Lifting and tilting operation lever |
| Traction pin | Standard seat | Hydraulic oil dipstick | Overhead guard rain cover |
| Torque converter oil dipstick | Combined instrument |
6. Forklift Optional Devices and Accessories
| Driver`s CAB | Rotation alarming light | Upper air exhausting device | Double air cleaner |
| Lengthening fork | extension | Aarm air blower | Solid tyre |
| Widen fork arm carrier | Windshield | Cleansing muffler | Fire extinguisher muffler |
| Fire extinguisher | Rear working light | Air conditioner(Certain type) | Torque converter oil temperature gauge |
| Tilting cylinder bush | Steering cylinder bush |
7. Forklift Specifications
| Model | CPCD70 | |||||
| Power unit | Diesel Oil | |||||
| Rated Capacity | kg | 7000 | ||||
| Load Center | mm | 600 | ||||
| Overall max.lifting height(with backrest) | h4 | mm | 4290 | |||
| Max.Lifting height | h3 | mm | 3000 | |||
| Height mast retracted(upright) | h1 | mm | 2567 | |||
| Free lift height | h2 | mm | 267 | |||
| Backrest height(from upper face of forks) | h8 | mm | 1365 | |||
| Overall height(overhead guard) | h6 | mm | 2510 | |||
| Overall length(with forks) | L1 | mm | 4965 | |||
| Overall length(without forks) | L2 | mm | 3745 | |||
| Front overhang | X | mm | 655 | |||
| Rear overhang | L4 | mm | 840 | |||
| Wheel base | L5 | mm | 2250 | |||
| Coupler height | h5 | mm | 430 | |||
| Min.groud clearance under mast | m1 | mm | 250 | |||
| Overall width | B | mm | 1995 | |||
| Tread(front) | R | mm | 1470 | |||
| Tread(rear) | P | mm | 1500 | |||
| Outside turning radius | Wa | mm | 3425 | |||
| Inside turning radius | V | mm | 200 | |||
| Min.intersecting aisle | Ra | mm | 3240 | |||
| Tilting angles(forward/backward) | α/β | 6°/12° | ||||
| Fork size(axbxc) | mm | 70*1220*150 | ||||
| Max.Draw-bar pull(With/With load) | kN | 54 | ||||
| Max.Negotiable Gradient(With/Without load) | % | 25/20 | ||||
| Service Mass | kg | 10050 | ||||
| Load Wheel with load(Front/Rear) | kg | 13800/3750 | ||||
| Load Wheel without load(Front/Rear) | kg | 2710/7340 | ||||
| Wheels(Front/Rear) X=Driving Wheel | 4X/2 | |||||
| Tyre Type(Front/Rear) | Pneumatic type | |||||
| Service Brake | Power brake-pedal type | |||||
| Paking Brake | Mechanism-hand braking rod type | |||||
| Battery(Voltage/Capacity) | V/Ah | 2*12/80 | ||||
| Internal Combustion Engine Model | A-6BG1QC-02 | |||||
| Engine type | Diesel Engine |
|||||
8. Forklift Optional attachments
9. Product warranty term
- 15 months or 2000 working hours (which comes first).
- We provide the replacement parts for free within the warranty period.
10. Certificates
11. FAQ
1. Who is HELI ?
HELI is the forklift first brand in China. Racking Top 9 in the global forklift Suppliers in 2012 year. Market share 32% in domestic market
and export to more than 150 countries.
2. What is brand CHL?
CHL is a new brand created by the HELI factory on 2013. It is a new business of HELI.
3. What is the difference between HELI brand forklift and CHL brand forklift ?
| Same | Difference |
| Same Factory | Different Painting Color |
| Same Components | Different Brand Name |
| Same Assembly Line | Different Brand Name |
| Same Support Team | Better Price |
4. Who is Shintool ?
Shintool machinery is the company which been officially authorized by HELI factory to sell brand “CHL” forklift which produced by the
HELI factory.
We are sincerely looking for dealers for CHL forklifts in worldwide market,
and welcome your contact any time!
12. Our Services
At Shintool machinery, we supply ONE-STOP- SHOP solution service for warehouse equipments and Chinese brand forklift
parts
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business
with us and - also any other Chinese suppliers, we can be the position of supplying ONE STOP- SHOP export service. Our nearest
export port is Shanghai, and Ningbo.
We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one
B/L supply and other export issue service.
