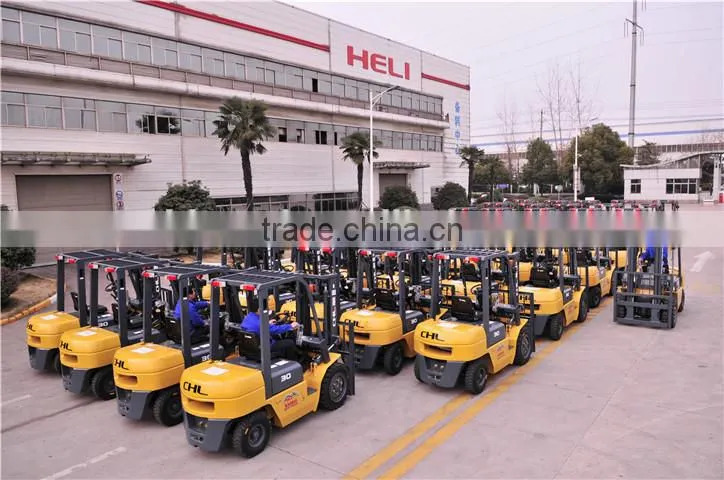

CHL Forklift, From HELI Group, No.1 in China
CHL is one brand of Anhui HELI Group, which was originally founded in 1958. For the last 22 years, HELI Group has always been the No.1 in China. In 2013, it’s ranking No.8 in the world market.
Based on HELI Group’s rich experience and advanced technology, CHL forklift trucks is with TOP lever quality in China. Last Year, HELI Group sold out more than 85000 units forklifts. Mass production largely help lower our price. And introducing the most advanced SAP-EPR & SAP-PLM system and implementing the "Lean Manufacturing" philosophy ensure CHL forklifts tough, reliable, and competitive.
For every forklift, we ensure longer warranty and complete, prompt after-sale service for you.
CHL forklift trucks, Maximize your value, your best choice.
We supply full range CHL forklift trucks -- which one do you need?

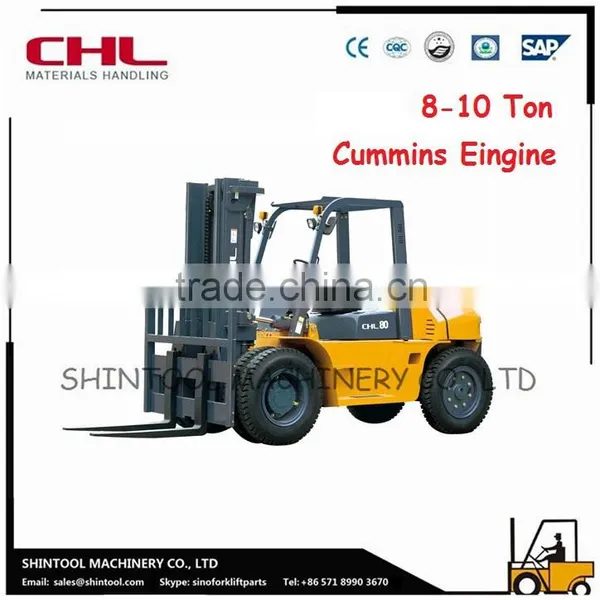

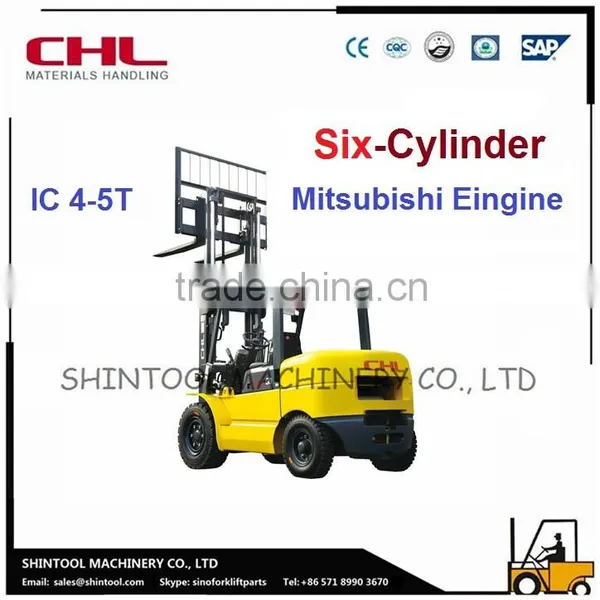

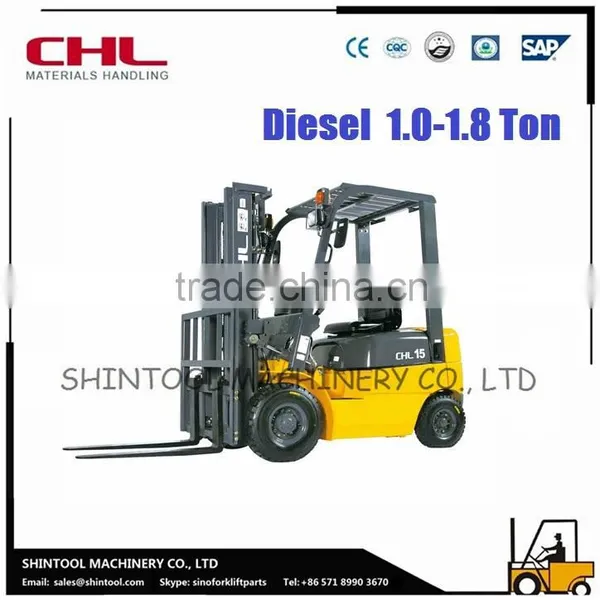

CHL Diesel: 1.5ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 7.5 ton, 8 ton, 10 ton
CHL Gasoline/Lpg: 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton

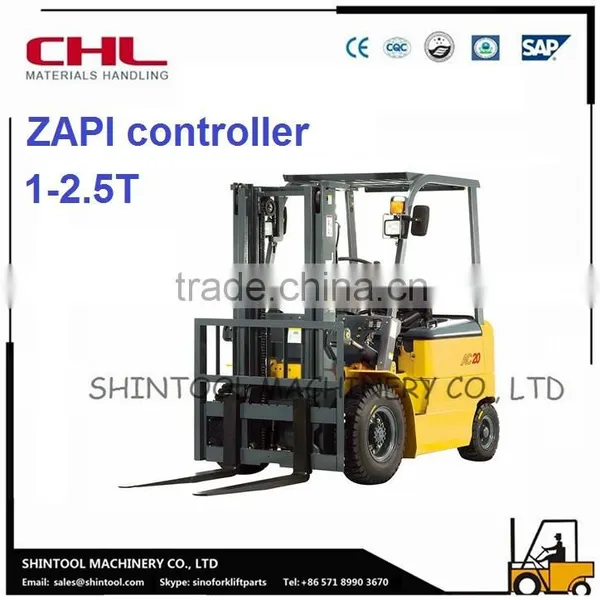

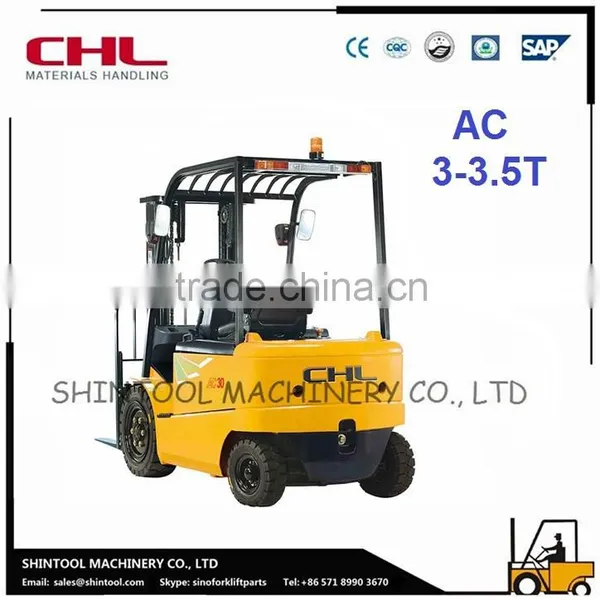

CHL Electric: 1 ton, 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
CHL Heavy Duty: 12 ton -- 46 ton
CHL Forklift, From HELI Group, No.1 in China
CHL Forklift Truck -- Treat Quality As Life!
1. Foreign Original Parts
All key parts of CHL forklifts are from Japan, Germany, and America, especially engine, tranmission parts, sealing, bearings.
2. Advanced Transmission Technology
In China, HELI Group is the only one who has core technology and complete transmission production line.
All key parts are imported from Japan and Germany. HELI technology has been validated by the world market for over 20 years, it can be working continually for 800 hours on average without any trouble. HELI transmission technology is at least 10 years ahead than China other suppliers, the running stability is twice.
3. Strict Parts Testing
All parts CHL forklifts use must stand two technicla tests, some are three. HELI Group has a set of very strict procedure in choosing parts suppliers. HELI Group only choose long cooperation suppliers, this largely avoid the risk of breakdown in parts supply chain.

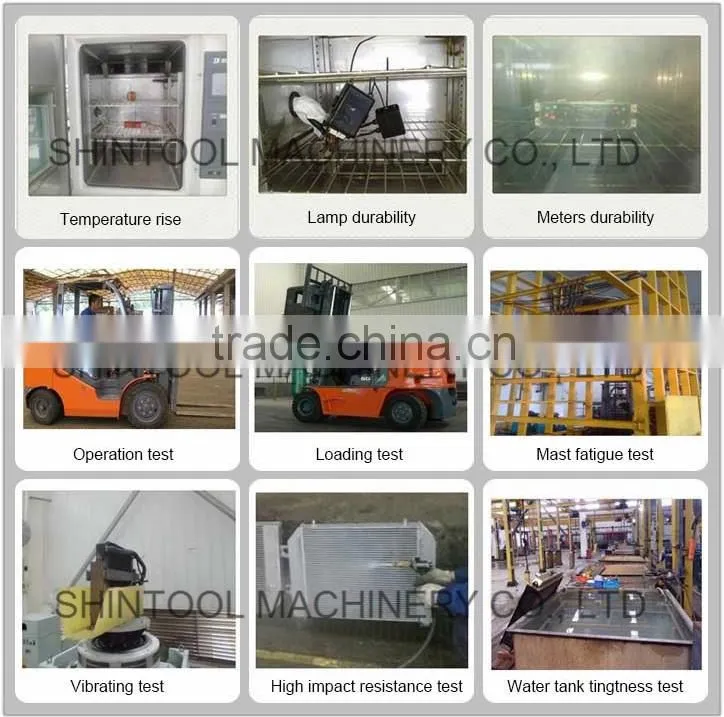

4. Strict Forklift Truck Testing
In order to make reliabble forklifts, engineers and workers do whole strict tests on every part of CHL forklifts.
CHL Forklift From HELI

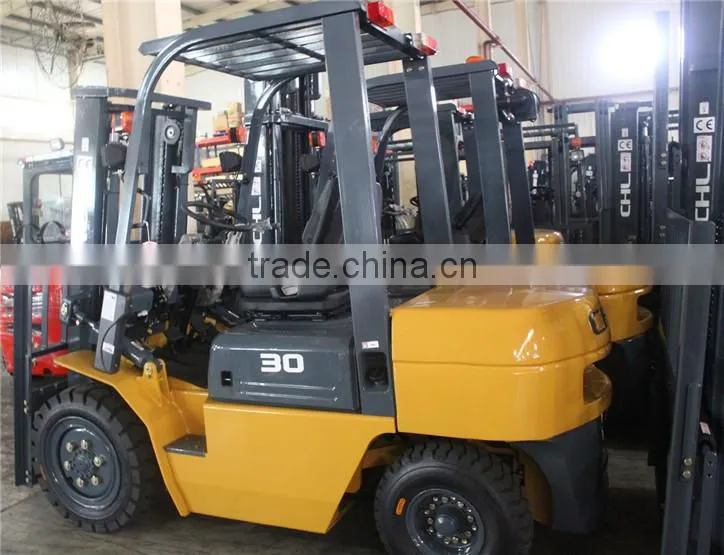

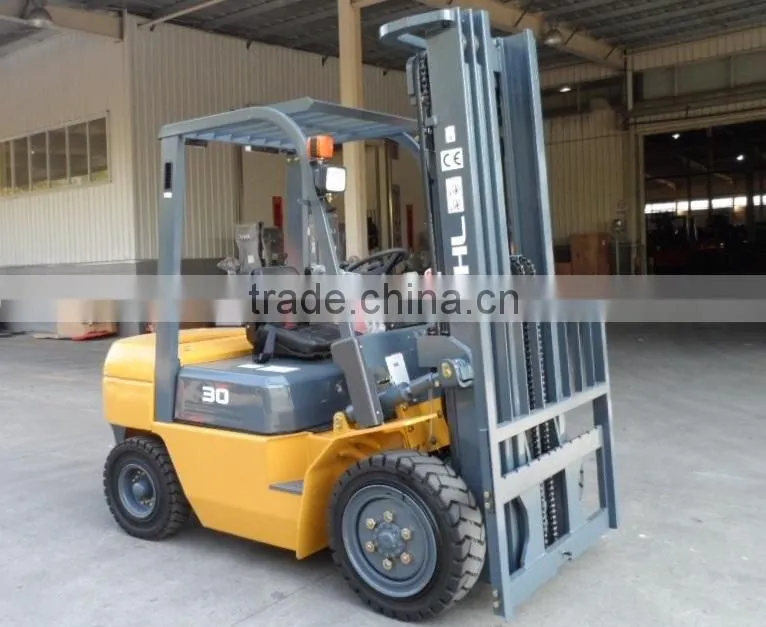

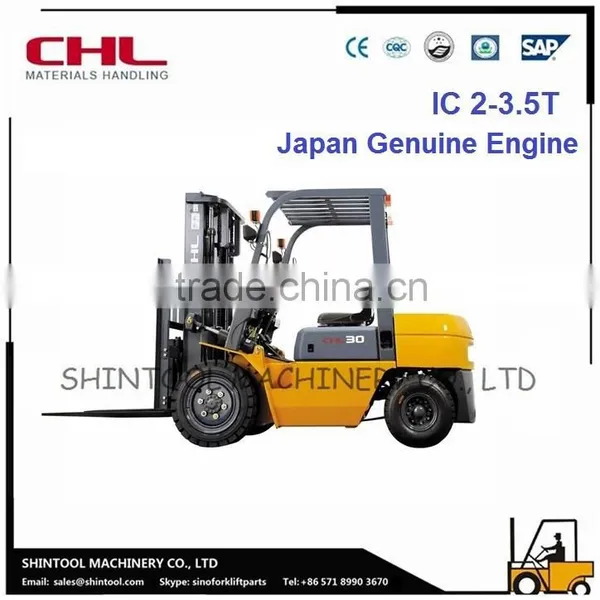

CHL 3ton Diesel Forklift Truck
With Japan genuine Engine, HELI Automatic Transmission, Wide View Mast
Specification of CHL 2-3.5 Ton CHL Forklift Truck
| General | Manufacturer | Anhui Heli Co., Ltd | |||
| Model | CPCD25 | CPCD30 | CPCD35 | ||
| Power Type | Diesel | ||||
| Rated Capacity | kg | 2500 | 3000 | 3500 | |
| Load Center | mm | 500 | 500 | 500 | |
| Size | Overall max.lifting height(with backrest) | mm | 4030 | 4262 | 4262 |
| Max.Lifting height | mm | 3000 | 3000 | 3000 | |
| Height mast retracted(upright) | mm | 2000 | 2065 | 2180 | |
| Free lift height | mm | 170 | 160 | 170 | |
| Backrest height(from upper face of forks) | mm | 995 | 1227 | 1222 | |
| Overall height(overhead guard) | mm | 2170 | 2190 | 2190 | |
| Overall length(without forks) | mm | 3646/2576 | 3752/2682 | 3763/2693 | |
| Wheel base | mm | 1600 | 1700 | 1700 | |
| Min.groud clearance under mast | mm | 110 | 135 | 135 | |
| Overall width | mm | 1170 | 1225 | 1225 | |
| Lateral fork adjustment(Outside of fork) | mm | 1024/200 | 1060/250 | 1060/250 | |
| Tread(front) | mm | 970/970 | 1000/970 | 1000/970 | |
| Inside turning radius | mm | 2240 | 2400 | 2420 | |
| Outside turning radius | mm | 160 | 200 | 200 | |
| Min.intersecting aisle | mm | 2280 | 2380 | 2400 | |
| Tilting angles(forward/backward) | 6°/12° | 6°/12° | 6°/12° | ||
| Fork Size | mm | 1070*122*40 | 1070*125*45 | 1070*125*50 | |
| Service Mass | kg | 3680 | 4270 | 4700 | |
| Performance | Max.Traveling speeds(laden/unladen) | km/h | 18/19 | 19/20 | 19/19 |
| Lifting Speeds(laden/unladen) | mm/s | 506/545 | 465/490 | 370/400 | |
| Lowering Speeds(laden/unladen) | mm/s | 450/550 | 450/550 | 350/370 | |
| Max.Draw-bar pull(laden/unladen) | kN | 18.3/13.3 | 20/15.8 | 20/16 | |
| Max.Negotiable Gradient(laden/unladen) | % | 20/20 | 15/20 | 20/20 | |
| Tyre | Wheel (Front/Rear) X=Driving Wheel | 2X/2 | 2X/2 | 2X/2 | |
| Tyre(Front/Rear) | Pneumatic type | ||||
| Tyre size(Front) | 7.00-12-12PR | 28x9-15-12PR | 28x9-15-14PR | ||
| Tyre size(Rear) | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | ||
| Engine | Internal Combustion Engine Model | Japan C240PKJ | Japan C240PKJ | Japan 4JG2 | |
| Internal Combustion Engine Rated Output | kw/rpm | 35.4/2500 | 44.9/2450 | 44.9/2450 | |
| Internal Combustion Engine Rated Torque | Nm/rpm | 139/1800 | 186.3/1800 | 186.3/1800 | |
| Fuel Tank Capacity | L | 60 | 60 | 60 | |
Warranty of CHL Forklift Truck
- Warranty: 15 months or 2000 working hours (which comes first).
- All warranty parts will be sent at first time by TNT/DHL without any dealy and any charge.
Over 20000 kinds of main spare parts are in-stock.
- With advanced SAP system, all parts No. and parts information can be tracked immediately.
CHL Forklift Truck Full Range
We supply full range forklift trucks -- Diesel, Gasoline, Lpg, Electric
Diesel: 1.5ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 7.5 ton, 8 ton, 10 ton
Gasoline/Lpg: 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Electric: 1 ton, 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Heavy Duty: 12 ton -- 46 ton
Which One Do You Need? Send Inquiry Now!
