Help CenterSBA-D20 2.0 Ton Hand Pallet Truck
Related Products
-
2.5 Ton Galvanized Pallet Truck.US$ 100 - 110MOQ: 1 Unit -
2 Ton Stainless Steel Pallet Truck.US$ 100 - 110MOQ: 1 Unit
-
JF Series High Lift Scissor Truck (Single Piston)US$ 200 - 320MOQ: 1 Unit
-
High Lift Scissor Truck JFD Series High Lift Scissor TruckNegotiableMOQ: 1 Unit
-
1.5 Ton Electric Pallet TruckUS$ 1,300 - 2,000MOQ: 1 Unit
Specifications

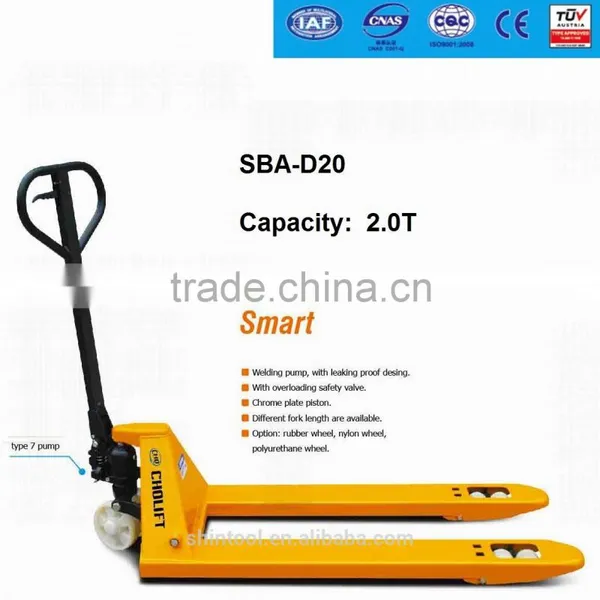

Hand Pallet TruckCapacity: 2500kg
Strong power High quality
Welding pump,with leaking proof desing.
Chrome plate piston
Hand Pallet Truck Advantages
1. Welding pump, with leaking proof design.
2. With overloading safety valve.
3. Chrome plate piston.
4. Different fork length are available.
5. Option: rubber wheel, nylon wheel, polyurethane wheel.

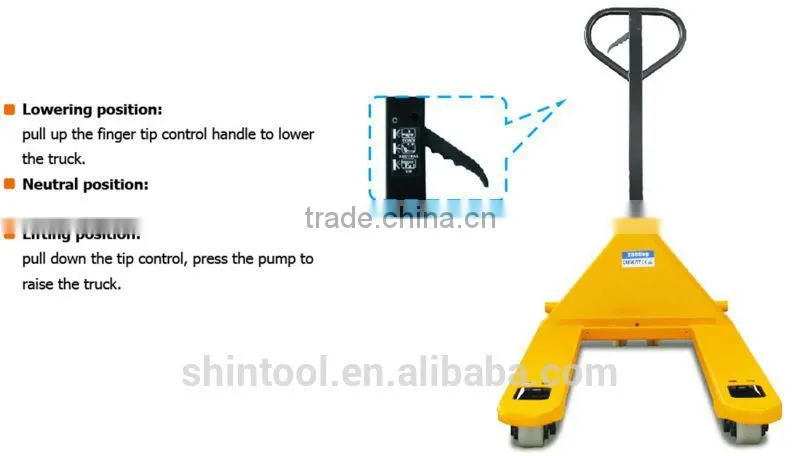

Lowering position: pull up the finger tip control handle to lower the truck.
Neutral position: stay the position during move.
Lifting position: pull down the tip control, press the pump to raise the truck.
Hand Pallet Truck Specifications
1. Optimized round fork tips ensure easy operation.
2. 50mm fork thickness ensures the high capacity.
3. Curve design on the fork tips help pallets entry in/out.
| Model | SBA-D20 | |
| Load capacity/rated load | Q(kg) | 2000 |
| Load centre distance | c(mm) | 500 |
| Net weight | kg | 55-65 |
| Tyre size, front | mm | Φ160*50 |
| Tyre size, rear | mm | Φ70*60 |
| Lifting height | h3(mm) | 190 |
| Height of tiller in drive position min./max. | h14(mm) | 1234/1224 |
| Lowered height | h13(mm) | 75 |
| Fork dimensions | s/e/l | 54/160/1150 |
| Distance between fork-arms | b5(mm) | 520/550/685 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1730/1800 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1780/1800 |
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service. Our nearest export
port is Shanghai, and Ningbo.We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.
Hand Pallet Truck Warranty details
SHINTOOL provide the warranty period to Low Profile Pallet Truck SBA-L, for a period of 1year after the date of Bill of Lading.
During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of SHINTOOL product
which proved to be defective in material or workmanship under proper operation.
After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will send
quotation for the new replacement parts. Technical questions are welcome to SHINTOOL, SHINTOOL will reply in 24 hours.
