Specifications
1.Thermoforming Mould2.Mould Material: s136.nak78
3.Material:PVC,ABS,PP.etc

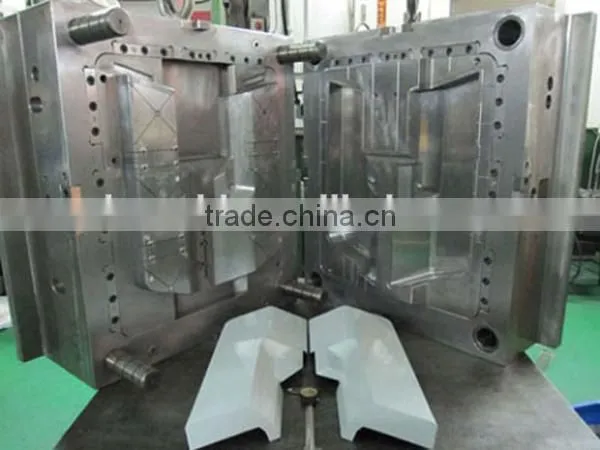

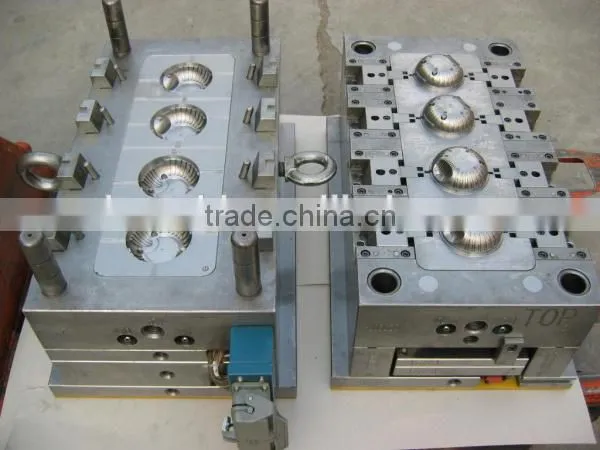

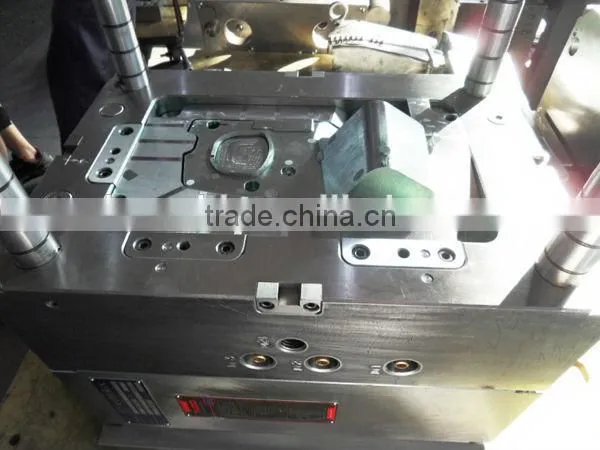

Thermoforming Mould
Name: Thermoforming Mould
| 1 | Plastic injection Mould standard | HASCO,DME,MEUSBURGER,JIS,CHINA LKM STANDARD |
| 2 | Mould base | LKM&Hasco&DME standard (A,B plate 1730,2311,2312,P20 ) |
| 3 | Material main core and cavity insert | DIN2312,2738,2344,718,S136,8407,NAK80,SKD61,H13 |
| 4 | Hardness of steel | 46~56HRC |
| 5 | Material for Slider ,Lifter and all sub insert use | 1.2767 HRC |
| 6 | Cavity | Single-cavity ,Multi-cavity |
| 7 | A surface request | EDM & High Polish |
| 8 | Gate | Cold runner,Yudo/DME/HASCO/Synventive Hot runner |
| 9 | Maximum mould size | 1500*1500 mm |
| 10 | Mould life time | 500000~+1,000,000 shots |
| 11 | Quality | ISO9001-2008 certification |
| 12 | Product material | PA,PA6/6+GF,ABS,POM,PC,PP,PET,TPE,PVC,HDPE etc |
| 13 | Lead time | 4~6 Weeks |
| 14 | Package | Wooden/Plywood case for tool ,PE bags add export carton for parts |
| 15 | Payment terms | T/T |
| 16 | Trade terms | FOB XIAMEN |
| 17 | Export country | Europe countries,USA,Mexico,Australia ,Middle-east ,Asia etc |
| 18 | Value-added service | Polish,texture,painting,screen printing,turnkey project |
| 19 | As a professional Plastic Injection mould ,Die casting Mould & Moulding manufacturer, our range products are covered from Automobile,Electronic,Industrial,Household,Medical,Sport,Office etc | |
| 20 | Clients project's 3D drawings or samples are highly appreciated | |
Technology:
1) Mould structure design
Professional designers provide you with reasonably designed mould to shorten cycle hours.
Reducing unnecessary procedure improves efficiency.
2) Mould cooling system
According to the structural characteristics of the product and the appearance of the product , We design a reasonable form of gate for mould, such as a large gate, hidden gate, fan gate, needle gate, pin point gate etc., a reasonable channel of runner design make mold temperature balance in the shortest time to improve mould precision and productivity.
3) Accessory for mould
Slide, guide pin, guide sleeve, lifter blocks and so on are taken by wear-resistant standard parts, to ensure the mould life.
4) Deal with mould
Quenching the mold, heat treatment to improve the hardness, then Nitriding temperature is lower , the mold will no longer need to quench mold with high surface hardness and wear resistance more than HV850
Why we use standard mould components?
1.Reduce the mould design and manufacturing period
2.Reduce the cost of production tooling
3.Improve the quality of the mould
4.Ensure interchangeability and improve the life of the mould
Quality is the soul of an enterprise
Plastic mould design and manufacture include:
1.Household Products mould
2.Electronic Products mould
3.Home Appliances mould
Trade Follow:
Our main design and manufacturing software are: UG,PRO/E,Solid works(3D)Auto CAD etc.
1.We are able to accept and detail files as DWG.DXF.STEP.STP.IGS and so on.
2.Available for OEM/ODM service and very super precision reachs to 0.001mm..
3.Standard mould base.
4.Send sample with test video to customers for check product quality and mould working condition.
5.During the period of making the plastic mould,we'll report the process of the mould with pictures every Monday.
6.Customer's design are welcomed..
7.Competive price with on-time delivery.
We are ISO ,GSV certified manufacturer with more than 10 years production experience.
We are specialized in supplying 'one-stop' service with plastic moulds designing and making, injection production, painting, screen-printing , assembly, and stampings parts, machinings parts as well as nice after-sales service in long term.
At present, We own CNC processing centers, CNC spark working machines ,EDM,HAITIAN injection machines and various advanced mold tooling equipment.
1)We can design and fabricate complex plastic moulds ourselves, and handle complicated mass production for plastic products as required..
2) Our company have the self-management import and export rights .
3) Professional staff Prompt response within 18 hours .
4) All of our moulds quality based on Europe standard .
5) Prompt after-service .SLM provide after sale technique support forever.
Our Main Market:
Thanks for your visit.
For more detailed information, pls fell free to contact us.We will always be on the other side to serve you!
