Home > Products > Steel Pipe Cross > 1/4" Tee 3 Way Female Stainless Steel 304 Threaded Pipe Fitting NPT NEW

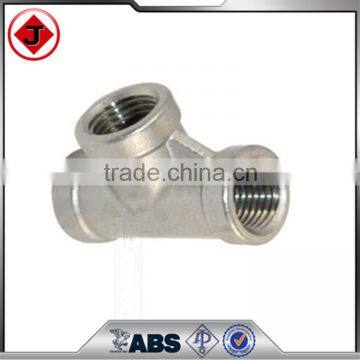

1/4" Tee 3 Way Female Stainless Steel 304 Threaded Pipe Fitting NPT NEW
- Shanghai;Ningbo;Or Any chain port
- T/T Money Gram
You May Like
Product Details
| Material | Other, Stainless Steel, Carbon Steel ,Stainless Steel , Alloy Steel , | Technics | Forged | |
| Type | Other, Elbow, Elbow , Tee , Cross ,Unio | Brand Name | Jetsun | |
| Connection | Other, Welding, Threaded,butt-welding | Shape | Equal | |
| Head Code | Other, round |
Product Description
Socket Welding Pipe Fitting
1 Product Standard & Material
Standard :
ASME B16.11,HG/T 21634-1996,MSS SP-83,MSS SP -79 ,
MSS SP-97,MSS SP-95,GB/T 14383-2008,SH/T3410-96,GD2000,GD87,40T025-2005.
Material :
Carbon steel : Q235, 20# , A105;
Stainless steel : 304 ,304L,316,316L,321,00Cr17Ni14Mo2;
Alloy Steel : 15CrMo,1Cr5Mo,16Mn,12Cr1MoV,F11,F22,10CrMo910 and so on
Non-Standard product can be manufactured according to customer darwing design
2 Product Paremeters Sheet
| Nominal pipe-spccificationD(in) | socket inside diameter di min | (min)socket dept | Diameter of watter way d2 | Socket thickness Cave | centre to socket bottom | cap thickness K(min) | |||||||||||
| 90℃ elbow,tee,crossA | 45℃ elbow | ||||||||||||||||
| 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | |||
| 1/8 | 10.65 | 10 | 6.1 | 3.2 | __ | 3.2 | 3.95 | __ | 11 | 11 | __ | 8 | 8 | __ | 5 | 6.5 | __ |
| 1/4 | 14.1 | 10 | 8.5 | 5.6 | __ | 3.8 | 4.6 | __ | 11 | 14 | __ | 8 | 8 | __ | 5 | 6.5 | __ |
| 3/8 | 17.55 | 10 | 11.8 | 8.4 | __ | 4 | 5.05 | __ | 14 | 16 | __ | 8 | 11 | __ | 5 | 6.5 | __ |
| 1/2 | 21.7 | 10 | 15 | 11 | 5.6 | 4.65 | 5.95 | 9.35 | 16 | 19 | 25 | 11 | 13 | 16 | 6.5 | 8 | 11 |
| 3/4 | 27.05 | 13 | 20 | 14.8 | 10.3 | 4.9 | 6.95 | 9.8 | 19 | 22 | 29 | 13 | 14 | 19 | 6.5 | 8 | 25 |
| 1 | 33.8 | 13 | 25.9 | 19.9 | 14.5 | 5.7 | 7.9 | 11.4 | 22 | 27 | 32 | 14 | 18 | 21 | 9.5 | 11 | 14 |
| 1 1/4 | 42.55 | 13 | 34.2 | 28.7 | 22 | 6.05 | 7.9 | 12.15 | 27 | 32 | 35 | 18 | 21 | 22 | 9.5 | 11 | 14 |
| 1 1/2 | 48.65 | 13 | 40.1 | 33.2 | 27.2 | 6.35 | 8.9 | 12.7 | 32 | 38 | 38 | 21 | 25 | 25 | 11 | 12.5 | 16 |
| 2 | 61.1 | 16 | 51.7 | 42.1 | 37.4 | 6.95 | 10.9 | 13.85 | 38 | 41 | 54 | 25 | 29 | 29 | 12.5 | 16 | 19 |
| 2 1/2 | 73.8 | 16 | 61.2 | __ | __ | 8.75 | __ | __ | 41 | 57 | __ | 29 | 32 | __ | 16 | 19 | __ |
| 3 | 84.8 | 16 | 76.4 | __ | __ | 9.5 | __ | __ | 57 | 64 | __ | 32 | 35 | __ | 19 | 22 | __ |
| 4 | 115.45 | 16 | 100.70 | __ | __ | 10.7 | __ | __ | 66 | __ | __ | 41 | __ | __ | 22 | 28.5 | __ |
3 Packing & Shipping
1) Packing Method :
Normal packing : plastic film or bubble paper wrapped on product's surface , pack with paper /wooden case or on fumifation plywood pallet .
Customized as customers request .
2) Shipping Way :
Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.
As per customer's request.
We have established the good business relationship with many famous domestic manufacturers and also supply the products to numbers of well-known international company. All products are well-reputed by customers from all over the world, for example, our company has been qualified to be a key supplier by Keppel Corporation.
Besides, we also offer additional services as per customers’ request:
A. Sourcing matching products which are related to steel pipe and pipe fittings.
B. Tracing all products after sales by our professional team.
C. Offering professional suggestions to achieve your cost effective aim when you choose the material of the product.
