Screw Air Compressor,electric Ring Air Blower,regenerative Blower

Specifications

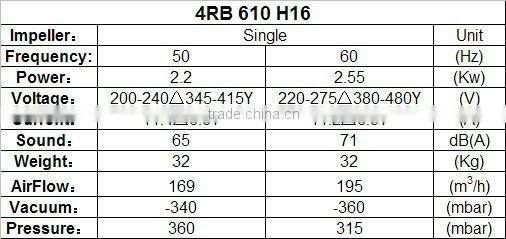

Parameters:

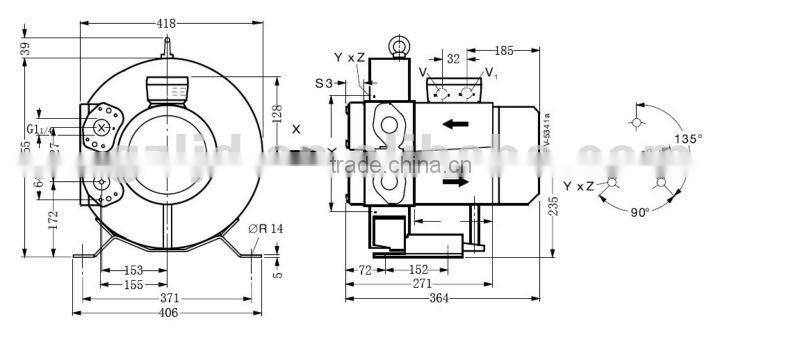

SIze:

Composion:

Ex stock for use world-wide

The G-series side channel blower feature voltage rang motors for 50HZ and 60HZ in protection class IP55(insulation class F) are UL,CE,CCCapproved.this makes them the ideal solution for wide use.they can be used without any modifications or tests in Europe,America and Asia.They are mostly available ex stock.they are available for your requirements anytime.

G-series operating principle

The impellers in the G-series machines are mounted directly on the motor shaft for noncontact compression entirly without friction.Maximum operational reliability,even at high differential pressures.is ensured by the arrangement of the bearings outside the compression chamber.

The gas it taken in through the inlet 1 .As it enters the side channel 2,the rotating impeller 3 imparts velocity to the gas in the direction of rotation.Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase.Everyrotation adds kinetic energy.resulting in the further increase of the pressure along the side channel.The side channel narrow at the rotor,sweeping the gas off the impeller blades and dis-charging it through the outlet silencer 4 where it exits the side channel blower.

Feature:

1)Material of shell: Die-casting ADC12 Aluminum, It substantial ,durability and anti-corrosion.

2)Installation mode:horizontal or vertical

3)Structure:There is no driving link on blower except blade, and the blade connected motor directly, no gear and driving belt, All of these keep the blower smooth running, long term performance and high pressure.

4) Testing of parts Process:All equipments of testing and process are made out of imported from Germany & Japan. In contrast to other brands, our blower can keep low vibration and noise.

5) Periodic maintenance is not needed because no gears, belts, motor brushes

or sliding blades.

6) Space-efficient design: unique design results in substantial airflows at

moderate pressures in minimum space and weight.

7) Versatility: easily throttled and changed from pressure to suction operation.

8) Stable airflow: centrifugal compressor design delivers smooth, stable airflow with no pulsations.

9) High-pressure airflow: produces continuous high-pressure airflow.

10) Suitable for many industrial applications. What’s more our power is universal, so it can be applicable to worldwide.

Application:

1.Pneumatic conveying systems

 2.Lifting and holding of parts by vacuum

 3.Packing machines

 4.Aeration of sewage-treatment plants

 5.Filling of bags/bottles/hoppers

 6.Soil remediation

 7.Thermoforming

 8.Sorting/enveloping of letters

 9.Food-processing

10.Laser printers

11.Dental suction equipments

12.Paper processing

13.Printers/copiers

14.Textile machines

15.Aeration of fish ponds

16.Gas analysis

17.Swimming pool equipment/whirlpools

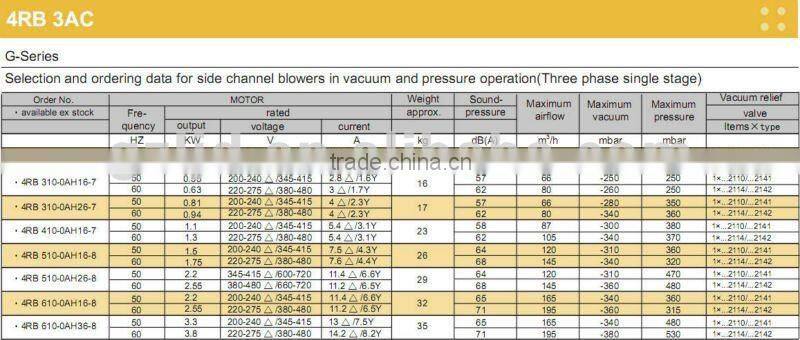

Catalogue:

Certificate:

Production Line:
