Single and Double Action Precision Vise
- Qingdao/xingang
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | zhongyi | |
| Model Number | ZQ83 |
Product Description

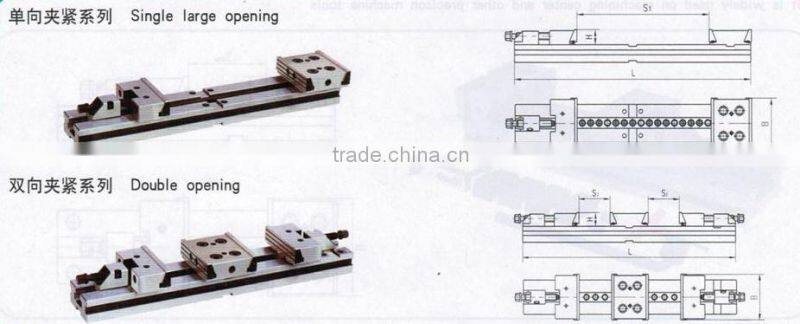

single and double action precision vise:
1.The goods is made of high quality steel
2.The parallelism is 0.005mm/100mm,the squareness is 0.005mm
3.The hardness of working surface is HRC58-62
4.It can be quickly changed from double vise to single vise with very large opening
5.It is widely used on machining center and other precision machine tools
| Model No. | S1 mm | Model No. | S2 mm | B mm | H mm | L mm |
| ZQ83100 | 290 | ZQ83100(I) | 2X90 | 100 | 30 | 460 |
| ZQ83125 | 320 | ZQ83125(I) | 2X100 | 125 | 40 | 520 |
| ZQ83150 | 360 | ZQ83150(I) | 2X110 | 150 | 50 | 580 |
| ZQ83150A | 460 | ZQ83150A(I) | 2X160 | 150 | 50 | 680 |
| ZQ83175 | 400 | ZQ83175(I) | 2X120 | 175 | 60 | 666 |
| ZQ83175A | 500 | ZQ83175A(I) | 2X170 | 175 | 60 | 766 |
| ZQ83175B | 600 | ZQ83175B(I) | 2X220 | 175 | 60 | 866 |
| ZQ83175C | 700 | ZQ83175C(I) | 2X270 | 175 | 60 | 966 |
| ZQ83200 | 500 | ZQ83200 | 2X150 | 200 | 65 | 805 |
| ZQ83200A | 600 | ZQ83200A(I) | 2X200 | 200 | 65 | 905 |
| ZQ83200B | 700 | ZQ83200B(I) | 2X250 | 200 | 65 | 1005 |
| ZQ83200C | 800 | ZQ83200C(I) | 2X300 | 200 | 65 | 1105 |
| ZQ83200D | 900 | ZQ83200D(I) | 2X350 | 200 | 65 | 1205 |
Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for many years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
Contact Us
- Dezhou Zhongyi Industry And Commerce Co., Ltd.
- Contact nameJack zhao Chat Now
- Phone86-534-2676136
- AddressNo.1-4-8,No.1 Building,Lane 114,East 38 Road, Dezhou, Shandong
