Help CenterQY200 Machine Vise
Related Products
Specifications

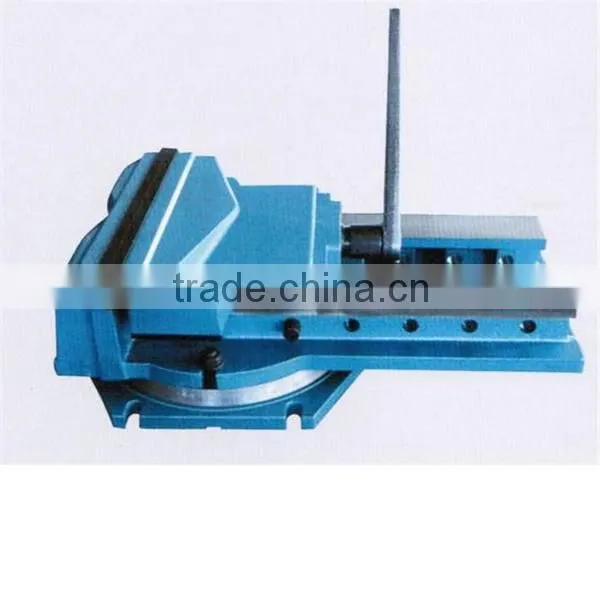

QY200 Machine Vise:1.material:high-quality cast iron
2.parllelism:0.025mm
QY200 Machine vise:
1.It is made of high quality cast iron
2.The accuracy of vise(parllelism and squareness)is 0.025mm/100mm
3.QY Machine vise is used mechanical transmission and hydraulic clamping system, it is effectual to keep the clamp force timeless.
4.According to the size of workpiece,change the position of the screwnut,it has four opening.
5.It can turn 360° and locked at any position with a swivel base.
| Style No. | Width of Jaw (mm) | Height of jaw (mm) |
Max.Opening (mm) |
G.W./N.W. (kg) |
Packing Volume(cm) |
Packing Shape |
| QY150 | 152 | 52 | 320 | 60/58 | 65X32X26 | carton |
| QY200 | 200 | 63 | 350 | 88/80 | 72X29X25 | case |
| QY320 | 320 | 81 | 390 | 110/100 | 80X39X29 | case |
| QY400 | 400 | 85 | 430 | 169/159 | 86.5X50.4X30.5 | case |
Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for many years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
