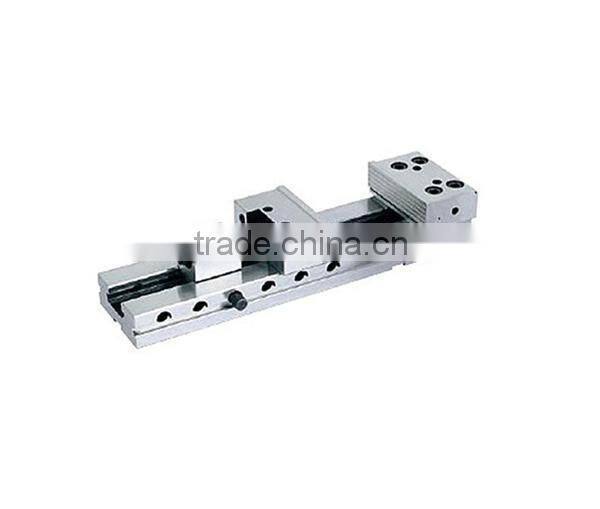

GT150A Quick Action Precision Modular Vise
- Qingdao/xingang
- Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | zhongyi | |
| Model Number | GT150A |
Product Description
Specifications
quick action precision modular vise:1.material:high quality alloy steel
2.surface hardness:HRC58-62
3.squareness:0.005mm
QUICK ACTION PRECISION MODULAR VISE:
1.The vise is made of high-quality alloy steel
2.Parallelism is 0.005mm/100mm,squareness is 0.005mm
3.Locate position by pilot pin,adjust pin on body according to openning size,
then clamp quickly.
4.It is widely used on machining center and other precision machine tools

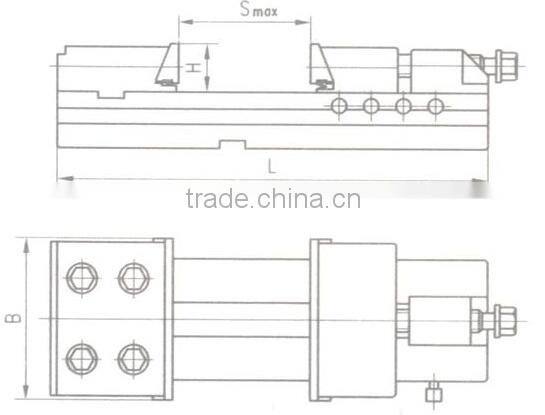

| Model No. | B(mm) | H(mm) | Smax(mm) | L(mm) | Clamping Force |
| GT125 | 125 | 40 | 150 | 345 | 3000 |
| GT150A | 150 | 50 | 200 | 420 | 5000 |
| GT150B | 150 | 50 | 300 | 520 | 5000 |
| GT175C | 175 | 60 | 400 | 655 | 6000 |
Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for many years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
