Help CenterQKG Series Precision Tool Vise
Related Products
Specifications
QKG Series Precision Tool Vise:1.surface hardness HRC58-62
2. good qulity and competitive price
3.easy to operate
QKG Series Precision Tool Vise:
1.Produced of high quality steel, carburized to surface hardness : HRC58-62.
2.Parallelism 0.005mm/100mm,Squareness 0.005mm
3.Quickly to clamp and easy to operate
4.Used for precision measurement and inspection,precision grinding,EDM and wire-cutting machine
5.Guarantee high accuracy in any position.
6.QKG is quick action

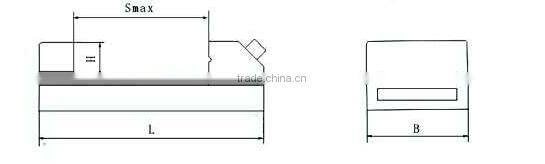

| Model No. |
B mm |
H mm |
Smax mm |
L mm |
| QKG25 | 26 |
9.15 | 22 | 65.4 |
| QKG36 | 36 | 20 | 40 | 100 |
| QKG38 | 38 | 20 | 44 | 105 |
| QKG50 | 50 | 25 | 65 | 140 |
| QKG63 | 63 | 32 | 85 | 175 |
| QKG73 | 73 | 35 | 100 | 190 |
| QKG80 | 80 | 40 | 100 | 200 |
| QKG88 | 88 | 40 | 125 | 235 |
| QKG100 | 100 | 45 | 125 | 245 |
| QKG125 | 125 | 50 | 160 | 285 |
| QKG150 | 150 | 50 | 200 | 330 |
| QKG150A | 150 | 50 | 250 | 380 |
| QKG150B | 150 | 50 | 300 | 430 |
Packing and Shipping:
packed in cartons
we can ship the goods by air or sea or express delivery
Our Service :
1.high qulity and competitive price
2.strict inspection on every goods
3.in time response
4.keep promise and keep responsible
Company Information
Our company Dezhou Zhongyi Industry and Commerce Co., Ltd. is a leading supplier of machinery tool accessories in China.
Our products include: elastic collets, drill chucks, machine vises, tapping collets, ordinary and computer controlled tool holders and adapters. We can also supply live centers, reduction sleeves, end mill cutter sharpeners, indexing heads, quick change tool posts, precision vises, rotary table series and tool sharpeners, cutting tools.
Our products are sold to clients in more than 10 countries and regions, such as the USA, the UK, Germany, France, Canada, South Africa, Australia and Southeast Asia.
