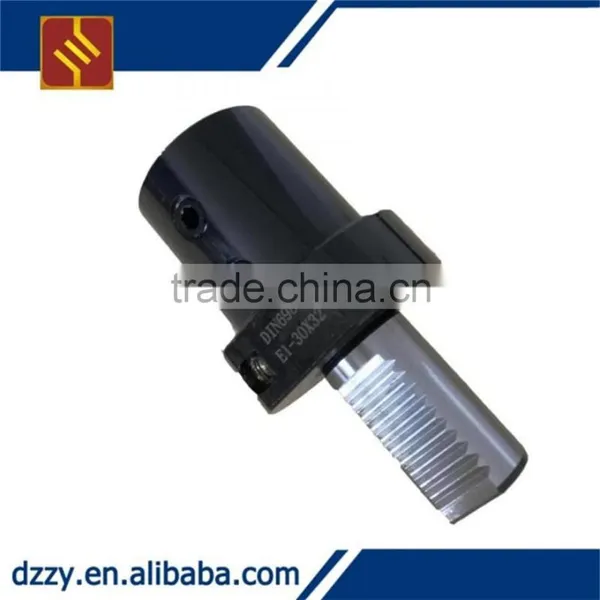

DIN69880 Type E1 Tool Holder for Boring Bars With Cylindrical Shank

DIN69880 Type E1 Tool Holder for Boring Bars With Cylindrical Shank thumbnail-1
DIN69880 Type E1 Tool Holder for Boring Bars With Cylindrical Shank photo-1
US$ 31.5 - 55.8 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
ZHONGYI
Model Number:
E1
Contact Supplier Request Quote Chat Now
Dezhou Zhongyi Industry And Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/XINGANG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name ZHONGYI
Model Number E1

DIN69880 type E1 tool holder for boring bars with cylindrical shank

DIN69880 type E1 tool holder for boring bars with cylindrical shank

type E1 tool holder for boring bars with cylindrical shank:

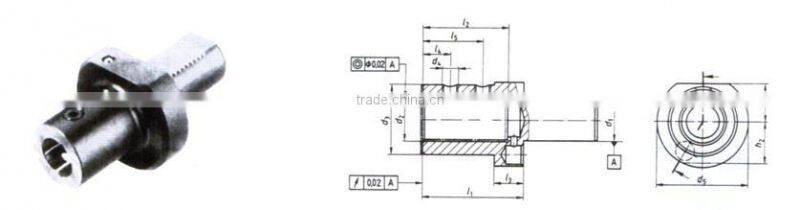

 DIN69880 type E1 tool holder for boring bars with cylindrical shank

Model No. d1 d2 d3 d4 d5 h1 h2 l1 l2 l3 l4 l5
E1-20X16 20 16 36 M10X1 50 - 23 67 54 18 15 35
E1-20X20 20 20 40 M10X1  50  -  23  67  54  18  15  35
E1-20X25 20 25 45 M12X1  50  -  23  71  59  18  17  40
E1-30X16

30

 16 36 M10X1  68  28  30  67  54  22  15  35
E1-30X20 30 20 40 M10X1  68  28  30  67  54  22  15  35
E1-30X25 30 25 45 M12X1  68  28  30  71  59  22  17  40
E1-30X32 30 32 52 M12X1  68  28  30  75  63  22  20  44
E1-40X16 40 16 36 M10X1  83  32.5  -  67  54  22  15  35
E1-40X20 40 20 40 M10X1  83  32.5  -  67  54  22  15  35
E1-40X25 40 25 45 M12X1  83  32.5  -  75  59  22  17  40
E1-40X32 40 32 52 M12X1  83  32.5  -  75  63  22  20  44
E1-40X40 40 40 65 M16X1  83  32.5  -  90  73  22  22  50
E1-50X20 50 20 40 M10X1  98  35  -  67  54  30  15  35
E1-50X25 50 25 45 M12X1   98  35  -  80  59  30  17  40
E1-50X32 50 32 52 M12X1  98  35  -  80  63  30  20  44
E1-50X40 50 40 65 M16X1  98  35  -  90  73  30  22  50
E1-50X50 50 50 75 M16X1  98  35  -  100  83  30  24  60
E1-60X20 60 20 40 M10X1  123  42.5  -  80  54  30  15  35
E1-60X25 60 25 45 M12X1  123  42.5  -  80  59  30  17  40
E1-60X32 60 32 52 M12X1  123  42.5  -  80  63  30  20  44
E1-60X40 60 40 65 M16X1  123  42.5  -  90  73  30  22  50
E1-60X50 60 50 75 M16X1  123  42.5  -  100  83  30  24  60



  DIN69880 type E1 tool holder for boring bars with cylindrical shank



DIN69880 type E1 tool holder for boring bars with cylindrical shank DIN69880 type E1 tool holder for boring bars with cylindrical shank DIN69880 type E1 tool holder for boring bars with cylindrical shank



DIN69880 type E1 tool holder for boring bars with cylindrical shank DIN69880 type E1 tool holder for boring bars with cylindrical shank

 DIN69880 type E1 tool holder for boring bars with cylindrical shank

 DIN69880 type E1 tool holder for boring bars with cylindrical shank
