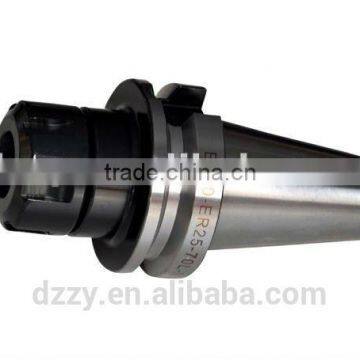

milling chuck arbor
- CHINA PORT
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | ZHONGYI | |
| Model Number | BT40xER32-70 |
Product Description
Specifications
milling chuck arbor:1material:alloy steel
2.hardness:HRC58-62
3.Concentricity and runout to 0.005mm
milling chuck arbor:
1.Made from carburized alloy steel,work surface hardness to HRC58-62
2.Tape accuracy ≤AT3,ensure well contact with spindle cone for high speed running to protect the spindle.
3.Concentricity and runout ≤0.005mm in high rpm
4.Including collet chuck,shell end mill holder,weldom mill holder, sleeve,drill chuck arbor,combi shell end mill holder,with BT,CAT,DIN,HSK standard shank.
5.Holders can be balanced to G6.3/12000rpm or G2.5/20000rpm.
| model no. | D | D1 | model no. | D | D1 |
| BT30xER16-70 | 28 | 31.75 | BT40xER40-120 | 63 | 44.45 |
| BT30xER20-70 | 34 | 31.75 | BT40xER40-150 | 63 | 44.45 |
| BT30xER25-70 | 42 | 31.75 | BT45xER16-70 | 28 | 57.15 |
| BT30xER32-70 | 50 | 31.75 | BT45xER20-70 | 34 | 57.15 |
| BT30xER40-80 | 63 | 31.75 | BT45xER20-100 | 34 | 57.15 |
| BT40xER16-70 | 28 | 44.45 | BT45xER25-70 | 42 | 57.15 |
| BT40xER20-70 | 34 | 44.45 | BT45xER25-90 | 42 | 57.15 |
| BT40xER20-100 | 34 | 44.45 | BT45xER25-100 | 42 | 57.15 |
| BT40xER20-150 | 34 | 44.45 | BT45xER32-70 | 50 | 57.15 |
| BT40xER25-60 | 42 | 44.45 | BT45xER32-100 | 50 | 57.15 |
| BT40xER25-70 | 42 | 44.45 | BT45xER32-120 | 50 | 57.15 |
| BT40xER25-90 | 42 | 44.45 | BT45xER40-80 | 63 | 57.15 |
| BT40xER25-100 | 42 | 44.45 | BT45xER40-100 | 63 | 57.15 |
| BT40xER25-150 | 42 | 44.45 | BT45xER40-120 | 63 | 57.15 |
| BT40xER32-70 | 50 | 44.45 | BT50xER16-70 | 28 | 69.85 |
| BT40xER32-100 | 50 | 44.45 | BT50xER16-90 | 28 | 69.85 |
| BT40xER32-150 | 50 | 44.45 | BT50xER16-135 | 28 | 69.85 |
| BT40xER40-70 | 63 | 44.45 | BT50xER20-70 | 34 | 69.85 |
| BT40xER40-80 | 63 | 44.45 | BT50xER20-90 | 34 | 69.85 |
| BT50xER20-135 | 34 | 69.85 | BT50xER32-100 | 50 | 69.85 |
| BT50xER20-150 | 34 | 69.85 | BT50xER32-120 | 50 | 69.85 |
| BT50xER20-165 | 34 | 69.85 | BT50xER40-80 | 63 | 69.85 |
| BT50xER25-70 | 42 | 69.85 | BT50xER40-100 | 63 | 69.85 |
| BT50xER25-135 | 42 | 69.85 | BT50xER40-120 | 63 | 69.85 |
| BT50xER25-165 | 42 | 69.85 | BT50xER40-135 | 63 | 69.85 |
| BT50xER32-70 | 50 | 69.85 | BT50xER50-90 | 78 | 69.85 |
| BT50xER32-80 | 50 | 69.85 | BT50xER50-120 | 78 | 69.85 |
Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for 7(seven) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
