Home > Industrial Equipment & Components > Cutter & Tongs > Chuck > Heavy Type Drill Chuck With Key

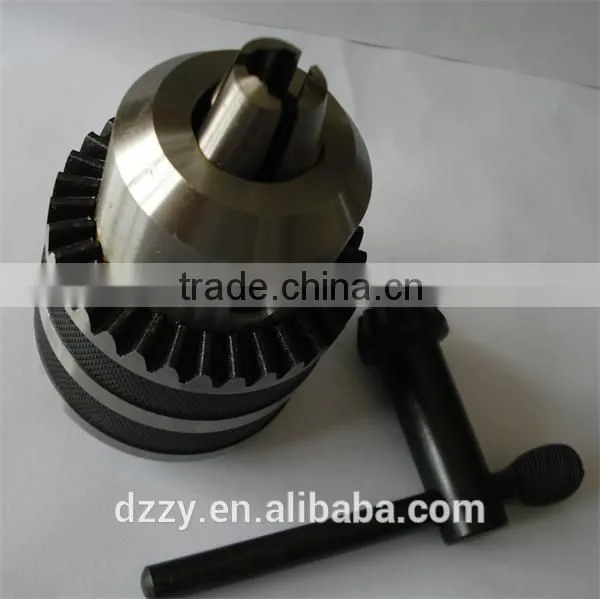

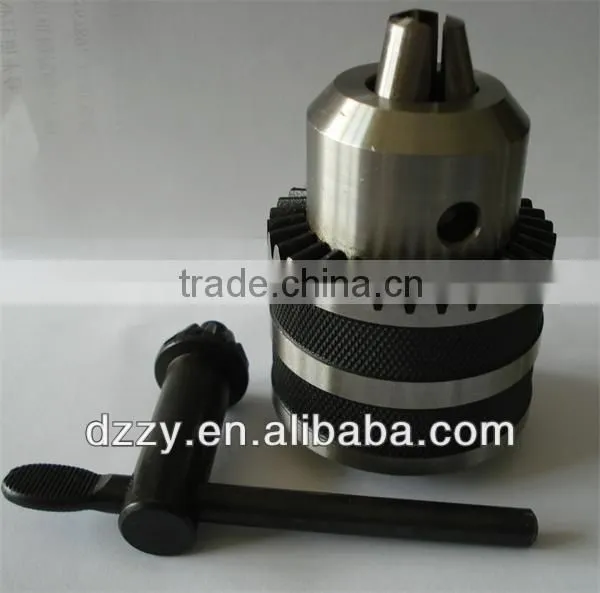

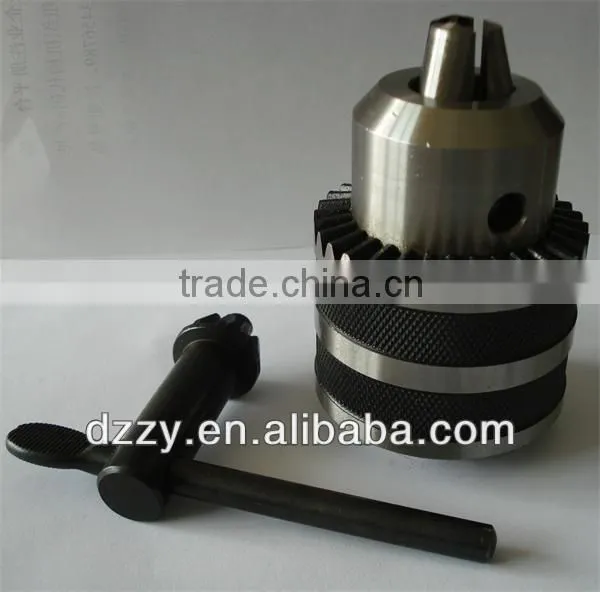

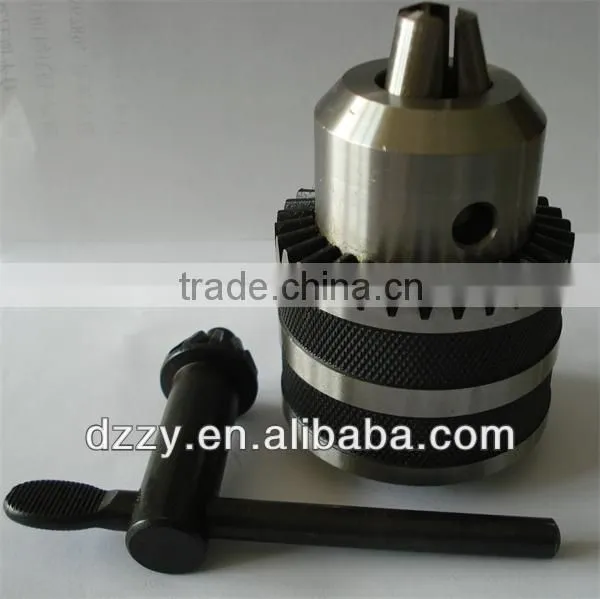

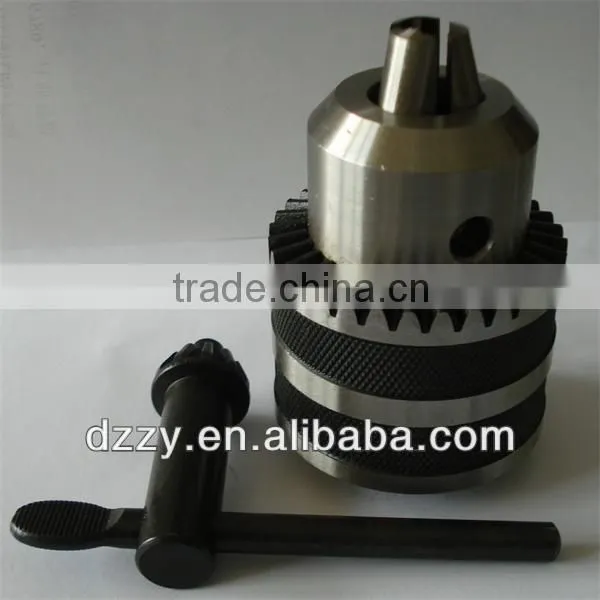

Heavy Type Drill Chuck With Key

Name: Heavy Type Drill Chuck With Key
Brand: Zhongyi
SKU: 133375823
Availability: InStock

Dezhou Zhongyi Industry And Commerce Co., Ltd.

Heavy Type Drill Chuck With Key thumbnail-1

Heavy Type Drill Chuck With Key thumbnail-2

Heavy Type Drill Chuck With Key thumbnail-3

Heavy Type Drill Chuck With Key thumbnail-4

US$ 2.1 - 6.94 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Zhongyi

Model Number:

1-10 B12,1-13 B16,3-16 B8,5-20 B22 etc

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao xingang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Zhongyi

Model Number 1-10 B12,1-13 B16,3-16 B8,5-20 B22 etc

Power Electric

Number of Jaws 3

heavy type Drill chuck with key.

1.Material:high quality steel

2.Sutable for medium,heavy duty drilling use

3.High speed drilling can be performed for getting high gripping power.
4.For milling machine,drill machine,lathe,cnc and wood working machine.

5.runout:0.18mm.

thread mount:

order no.	capacity		mount	D(mm)	L1(mm)	L(mm)
J3110	1-10mm	1/32-3/8in	3/8-24UNF	43.4	54	69.7
J3110	1-10mm	1/32-3/8in	1/2-20UNF	43.4	54	69.7
J3113	1-13mm	1/32-1/2in	1/2-20UNF	53.2	67	86

Taper mount:

order no.	capacity		mount	D(mm)	L1(mm)	L(mm)
J2110	1-10mm	1/32-3/8in	B12	43.4	54	69.7
J2113	1-13mm	1/32-1/2in	B16	53.2	67	86
J2516	3-16mm	1/8-5/8in	B16	53.2	67	86
J2516	3-16mm	1/8-5/8in	B18	53.2	67	86
J2116	1-16mm	1/32-5/8in	B16	57	75	93
J2116	1-16mm	1/32-5/8in	B18	57	75	93
J2120	5-20mm	3/16-3/4in	B22	65.3	82	110

Jacquard taper mount:

order no.	capacity		mount	D(mm)	L1(mm)	L(mm)
J2210	1-10mm	1/32-3/8in	JT2	43.4	54	69.7
J2213	1-13mm	1/32-1/2in	JT33	53.2	67	86
J2213	1-13mm	1/32-1/2in	JT6	53.2	67	86
J2616	3-16mm	1/8-5/8in	JT3	53.2	67	86
J2616	3-16mm	1/8-5/8in	JT33	53.2	67	86
J2616A	3-16mm	1/8-5/8in	JT6	53.2	67	86
J2216	1-16mm	1/32-5/8in	JT3	57	75	93
J2220	5-20mm	3/16-3/4in	JT3	65.3	82	110

packaging way:Inner packing is by paper box.The outer packing is by cartons.Pallet is available upon the customer's request.

Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.

Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.

Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.

We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
