Hand and Machine Operated Round Die

Hand and Machine Operated Round Die thumbnail-1
Hand and Machine Operated Round Die thumbnail-2

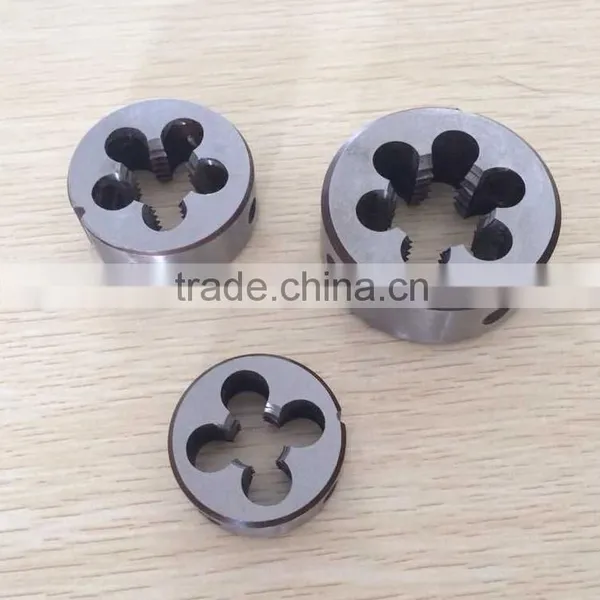

Hand and Machine Operated Round Die photo-1

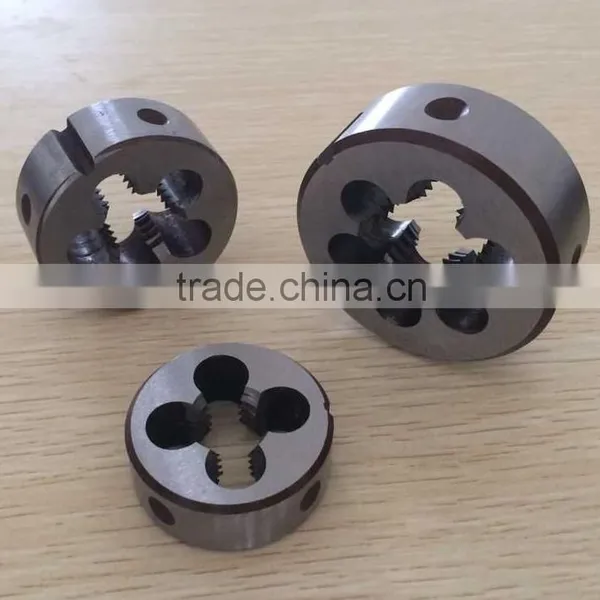

Hand and Machine Operated Round Die photo-2
US$ 0.33 - 7.14 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
zhongyi
Model Number:
M2,M3,M4,M5 etc
Contact Supplier Request Quote Chat Now
Dezhou Zhongyi Industry And Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name zhongyi
Model Number M2,M3,M4,M5 etc
Product Description

 Hand and machine operated round die



Coarse Thread

Code Thread Pitch P Outside Dia D Thickness E
M2 0.4 16 5
M2.5 0.45 16 5
M3 0.5 20 5
M4 0.7 20 5
M4.5 0.75 20 7
M5 0.8 20 7
M6 1.0 20 7
M7 1.0 25 9
M8 1.25 25 9
M9 1.25 25 9
M10 1.5 30 11
M11 1.5 30 11
M12 1.75 38 14
M14 2.0 38 14
M16 2.0 45(38) 14
M18 2.5 45 18
M20 2.5 45 18
M22 2.5 55(45) 22
M24 3.0 55 22
M27 3.0 65(55) 25
M30 3.5 65 25
M33 3.5 65 25
M36 4.0 65 25
M39 4.0 75 30
M42 4.5 75 30
M45 4.5 90 36
M48 5.0 90 36
M52 5.0 90 36



Fine Thread

Code Thread Pitch P Outside Dia D Thickness E
M2*0.25 0.25 16 5
M2.5*0.35 0.35
M3*0.35 0.35 20
M4*0.5 0.5
M4.5*0.5 0.5
M5*0.5 0.5
M5.5*0.5 0.5
M6*0.75 0.75 7
M7*0.75 0.75 25 9
M8*0.75 0.75
M8*1 1
M9*0.75 0.75
M9*1 1
M10*0.75 0.75 30 11
M10*1 1
M10*1.25 1.25
M11*0.75 0.75
M11*1 1
M12*1 1 38 10
M12*1.25 1.25
M12*1.5 1.5
M14*1 1
M14*1.25 1.25
M14*1.5 1.5
M15*1.5 1.5
M16*1 1 45(38) 14
M16*1.5 1.5
M17*1.5 1.5 45
M18*1 1
M18*1.5 1.5
M18*2 2
M20*1 1
M20*1.5 1.5
M20*2 2
M22*1 1 55(45) 16
M22*1.5 1.5
M22*2 2
M24*1 1
M24*1.5 1.5 55
M24*2 2
M25*1.5 1.5
M25*2 2
M27*1  1 65(55) 18
M27*1.5 1.5
M28*1 1 65
M28*2 2
M30*1 1
M30*1.5 1.5
M30*2 2
M30*3 3 25
M32*1.5 1.5 18
M32*2 2
M33*1.5 1.5
M33*2 2 65
M33*3 3 25
M35*1.5 1.5 18
M36*1.5 1.5
M36*2 2
M36*3 3 75 25
M39*1.5 1.5 20
M39*2 2
M39*3 3 30
M40*1.5 1.5 20
M40*2 2
M40*3 3 30
M42*1.5 1.5 20
M42*2 2
M42*3 3 30
M42*4 4
M45*1.5 1.5 90 22
M45*2 2
M45*3 3 36
M45*4 4
M48*1.5 1.5
M48*2 2
M48*3 3
M48*4 4 22
M50*1.5 1.5
M50*2 2
M50*3 3 36
M52*1.5 1.5 22
M52*2 2
M52*3 3 36
M52*4 4



Packaging & Shipping

  inner packing is plastic box,outer packing is cartons

   We can send the goods by sea,air or courier(DHL,TNT,Fedex etc) according to the customer's requirement.
