DIN69880 NC Tool Holder With B Type

DIN69880 NC Tool Holder With B Type thumbnail-1
DIN69880 NC Tool Holder With B Type photo-1
US$ 25 - 85 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
zhongyi
Model Number:
B,C,E type
Contact Supplier Request Quote Chat Now
Dezhou Zhongyi Industry And Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name zhongyi
Model Number B,C,E type
Application Other, cnc lathe

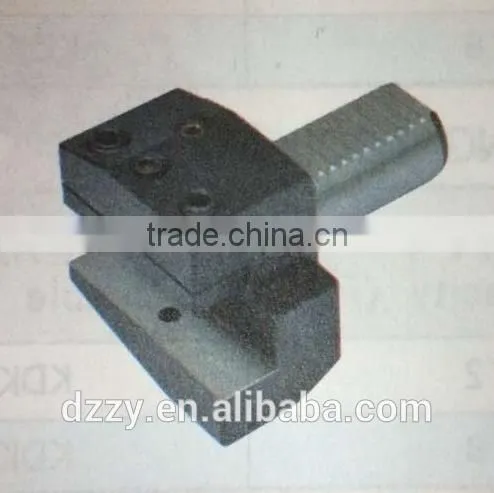

DIN69880 NC tool holder with B type:



1)It is essential machine tool accessories for working center of CNC machine
2)Develped structre,high accuracy,alternative etc.
3)It can meet the needs of turnig,drilling,boring,milling etc.

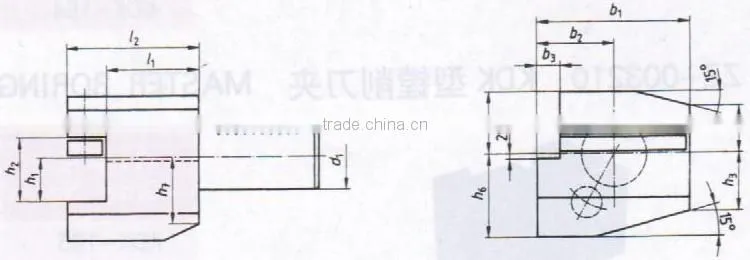

DIN69880 NC tool holder with B type

order no. d1 b1 b2 b3 h1 h2 h3 h4 h5 h6 h7 l1 l2
B1-20x16x30 20 55 30 7 16 22 19 19 25 30 23 16 30
B1-30x20x40 30 70 35 10 20 29 26 22 28 38 30 22 40
B1-40x25x44 40 85 42.5 12.5 25 34 35 30 32.5 48 - 22 44
B1-50x32x55 50 100 50 16 32 41 42 35 35 60 - 30 55
B1-60x32x60 60 125 62.5 16 32 41 46 42.5 42.5 62.5 - 30 60







DIN69880 NC tool holder with B type

order no. d1 b1 b2 b3 h1 h2 h3 h4 h5 h6 h7 l1 l2
B2-20x16x30 20 55 30 7 16 22 19 19 25 30 23 16 30
B2-30x20x40 30 70 35 10 20 29 26 22 28 38 30 22 40
B2-40x25x44 40 85 42.5 12.5 25 34 35 30 32.5 48 - 22 44
B2-50x32x55 50 100 50 16 32 41 42 35 35 60 - 30 55
B2-60x32x60 60 125 62.5 16 32 41 46 42.5 42.5 62.5 - 30 60





DIN69880 NC tool holder with B type



order no. d1 b1 b2 b3 h1 h2 h3 h4 h5 h6 h7 l1 l2
B3-20x16x30 20 55 30 7 16 22 19 19 25 30 23 16 30
B3-30x20x40 30 70 35 10 20 29 26 22 28 38 30 22 40
B3-40x25x44 40 85 42.5 12.5 25 34 35 30 32.5 48 - 22 44
B3-50x32x55 50 100 50 16 32 41 42 35 35 60 - 30 55
B3-60x32x60 60 125 62.5 16 32 41 46 42.5 42.5 62.5 - 30 60





DIN69880 NC tool holder with B type



order no. d1 b1 b2 b3 h1 h2 h3 h4 h5 h6 h7 l1 l2
B4-20x16x30 20 55 30 7 16 22 19 19 25 30 23 16 30
B4-30x20x40 30 70 35 10 20 29 26 22 28 38 30 22 40
B4-40x25x44 40 85 42.5 12.5 25 34 35 30 32.5 48 - 22 44
B4-50x32x55 50 100 50 16 32 41 42 35 35 60 - 30 55
B4-60x32x60 60 125 62.5 16 32 41 46 42.5 42.5 62.5 - 30 60







DIN69880 NC tool holder with B type

order no. d1 b1 b2 b3 h1 h2 h3 h4 h5 h6 h7 l1 l2
B5-20x16x30 20 75 50 7 16 22 19 19 25 30 23 16 30
B5-30x20x40 30 100 65 10 20 29 26 22 28 38 30 22 40
B5-40x25x44 40 118 75.5 12.5 25 34 35 30 32.5 48 - 22 44
B5-50x32x55 50 130 80 16 32 41 42 35 35 60 - 30 55
B5-60x32x60 60 145 82.5 16 32 41 46 42.5 42.5 62.5 - 30 60







DIN69880 NC tool holder with B type

order no. d1 b1 b2 b3 h1 h2 h3 h4 h5 h6 h7 l1 l2
B6-20x16x30 20 75 50 7 16 22 19 19 25 30 23 16 30
B6-30x20x40 30 100 65 10 20 29 26 22 28 38 30 22 40
B6-40x25x44 40 118 75.5 12.5 25 34 35 30 32.5 48 - 22 44
B6-50x32x55 50 130 80 16 32 41 42 35 35 60 - 30 55
B6-60x32x60 60 145 82.5 16 32 41 46 42.5 42.5 62.5 - 30 60







DIN69880 NC tool holder with B type



order no. d1 b1 b2 b3 h1 h2 h3 h4 h5 h6 h7 l1 l2
B7-20x16x30 20 75 50 7 16 22 19 19 25 30 23 16 30
B7-30x20x40 30 100 65 10 20 29 26 22 28 38 30 22 40
B7-40x25x44 40 118 75.5 12.5 25 34 35 30 32.5 48 - 22 44
B7-50x32x55 50 130 80 16 32 41 42 35 35 60 - 30 55
B7-60x32x60 60 145 82.5 16 32 41 46 42.5 42.5 62.5 - 30 60







DIN69880 NC tool holder with B type

order no. d1 b1 b2 b3 h1 h2 h3 h4 h5 h6 h7 l1 l2
B8-20x16x30 20 75 50 7 16 22 19 19 25 30 23 16 30
B8-30x20x40 30 100 65 10 20 29 26 22 28 38 30 22 40
B8-40x25x44 40 118 75.5 12.5 25 34 35 30 32.5 48 - 22 44
B8-50x32x55 50 130 80 16 32 41 42 35 35 60 - 30 55
B8-60x32x60 60 145 82.5 16 32 41 46 42.5 42.5 62.5 - 30 60









packaging way:Inner packing is by paper box.The outer packing is by cartons.Pallet is available upon the customer's request.



Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.



Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.



Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.

 We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
