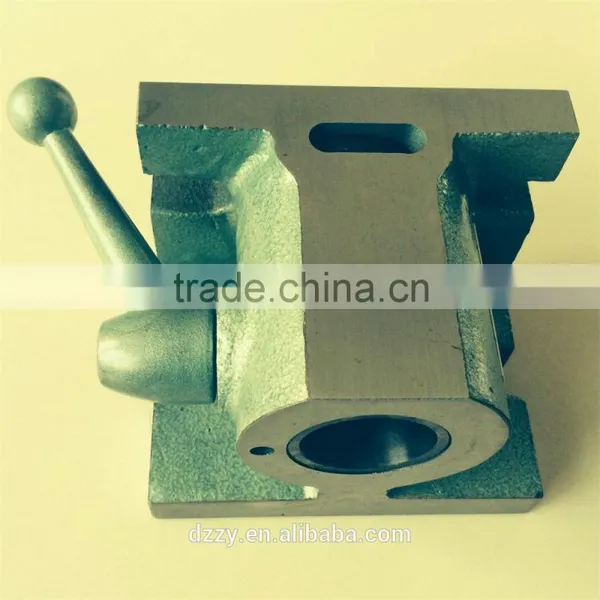

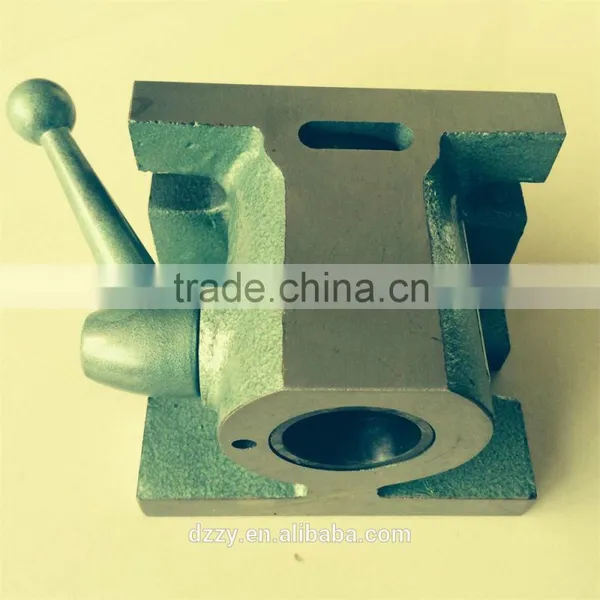

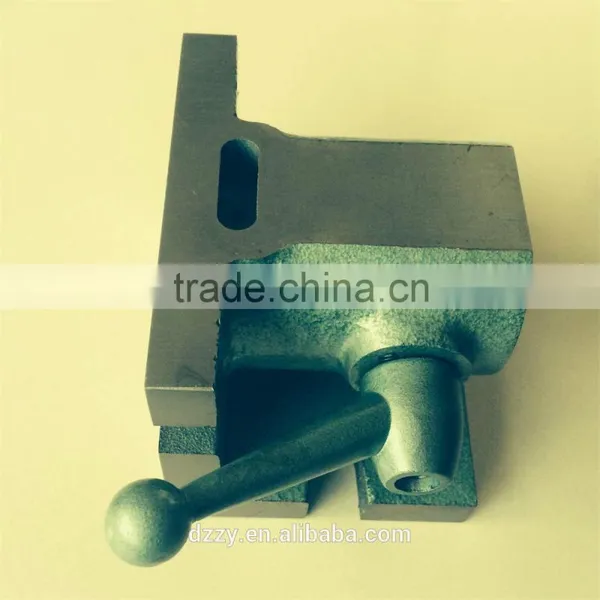

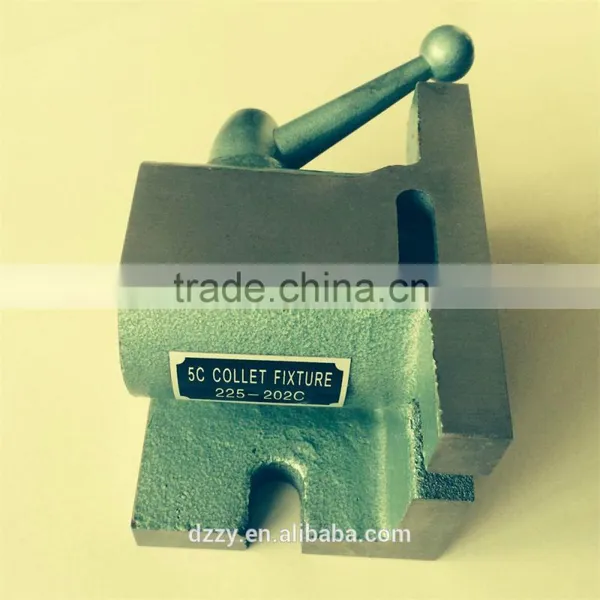

Help CenterType c 5c Collet Fixture
Related Products
type C 5c collet fixture:
1)height of centre(horizontal usage):64mm 2.52"
2)height(horizontal usage):4.13"
3)size of base(horizontal usage):5"x3.96"
4)size of base(vertical usage):5"x3.74"
5)parallelism of spindle to base surface(horizontal usage):0.020mm 0.0008"
vertical of centre line of spindle to base surface(vertical usage):0.020mm 0.0008"
6)weight:4.82kgs
| height of centre(horizontal usage) | 64mm 2.52" |
| height(horizontal usage) | 3.74" |
| height(vertical usage) | 4.13" |
| size of base(horizontal usage) | 5"x3.96" |
| size of base(vertical usage) | 5"x3.74" |
|
parallelism of spindle to base surface(horizontal usage) verticality of centere line of spindle to base surface(vertical usage) |
0.020mm 0.0008" 0.020mm 0.0008" |
| Wt(kg) | 4.82kg |
packaging way:Inner packing is by hard-paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Shipment way:We can send the goods by sea,air or courier(DHL,TNT,Fedex etc) according to the customer's requirement.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for 8(eight) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
