Single door mortise magnetic lock with signal output (800lbs) YM-350M
Product Parameter
Product Parameter |
Parameter Description |
Lock Size |
273Lx44Wx27.2H(mm) |
Armature plate |
190Lx45Wx11H(mm) |
Holding Force |
350kg(800Lbs) |
Voltage |
12 or 24VDC |
Current Draw |
12V/480mA or 24V/240mA |
Suitable for |
Wooden door , Glass door ,Metal door , Fireproof door |
Signal Output |
Dry Contact,Max Rating of Contact Current 3A |
Surface Temp |
≤+20℃ |
Operating Temp |
-10~+55℃(14-131F) |
Suitable Humidity |
0~95%(non-condensing) |
Finishes for Shell |
Anodized aluminum |
Finishes for Magnetic |
Zinc |
Finishes for Armature |
Zinc |
Weight |
2.7kg |
Advantage
Collinear Load Test 350Kg,800pounds.
Dual Voltage 12 or 24 VDC (optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
The Shell Finished with Stainless Steel, more Strong and Durable.
100 percent waterproof,All the Parts Pressurize in resin.
Special Waterproof, Indoor and Outdoor can be instaledl.
Design without Mechanical Failure, Depending on the powerful Magnetic force.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
Installation Diagram

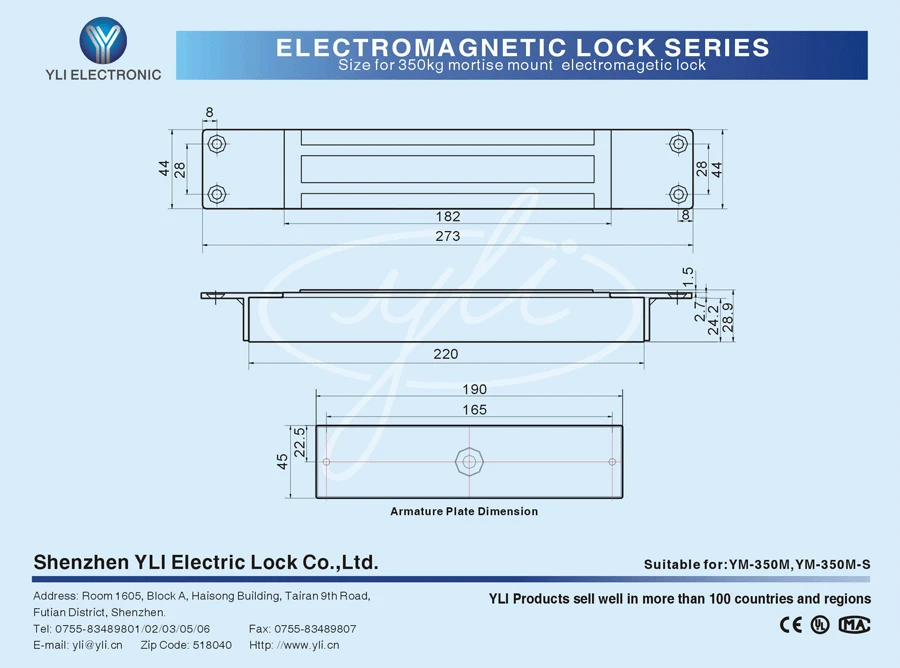

Dimension Diagram
Quality Guarranty
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products.
On the contrary, YLI will charge extra if repair. More information, please browse our service center.
Statement
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance.
The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
Packing
Packing Quantity(PCS/CTN) |
8 |
Packing Size(L*W*H)(cm) |
62*14.5*14.3 |
Gross Weight(KG) |
20.32 |

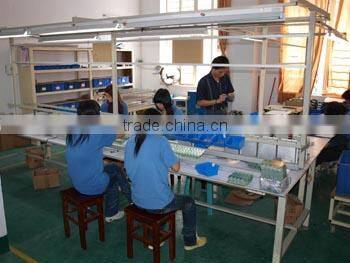

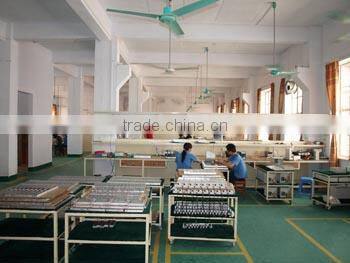

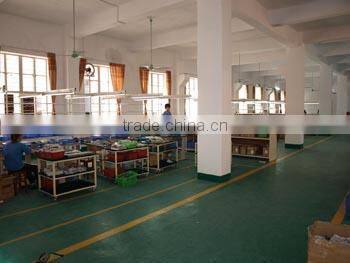

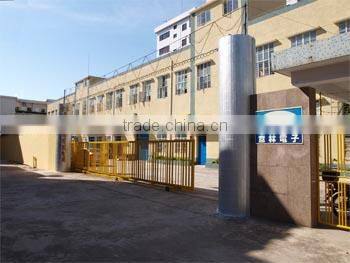

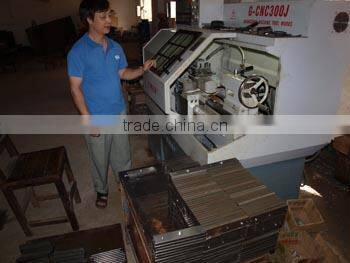

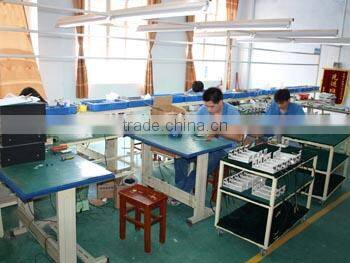

Our Factory
