Product details:
| Product Parameter | Parameter Description |
| Size | 90Lx39Wx24.5H(mm) |
| Armature Plate Dimension | 90Lx33Wx9.8H(mm) |
| Holding Force | 70kg(140Lbs) |
| Input Voltage | 12 or 24VDC |
| Current | 12V/240mA or 24V/120mA |
| Suitable | File Cabinet ,Display Cabinet |
| Surface Temp | ≤+20°C |
| Operating Temp | -10~+55°C(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 0.7KG |
Advantages:
Collinear Load Test 70kg,140pounds.
MOV Provides Reverse Current Protection.
Anti-Residual Magneism Designed.
High Strength Material,Anodized Aluminum Housing.
Design with no Mechanical Bolt.
Increase the holding Force,Dual Insulative Hosing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

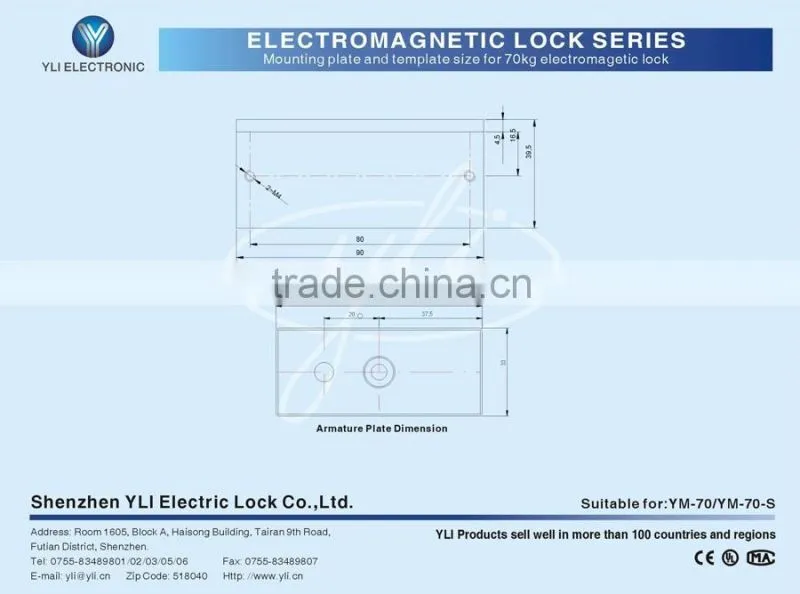

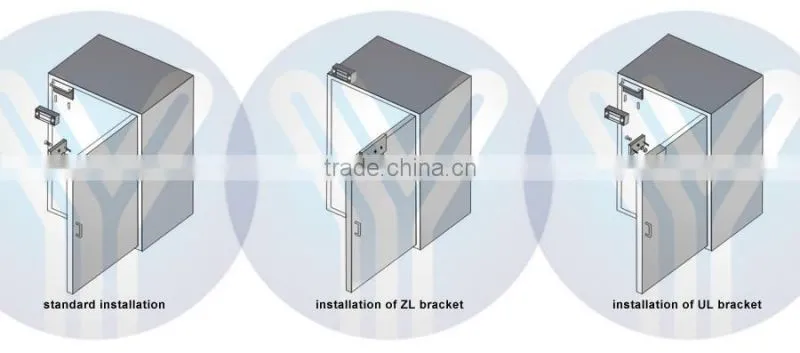

Installation Diagram & Dimension Diagram

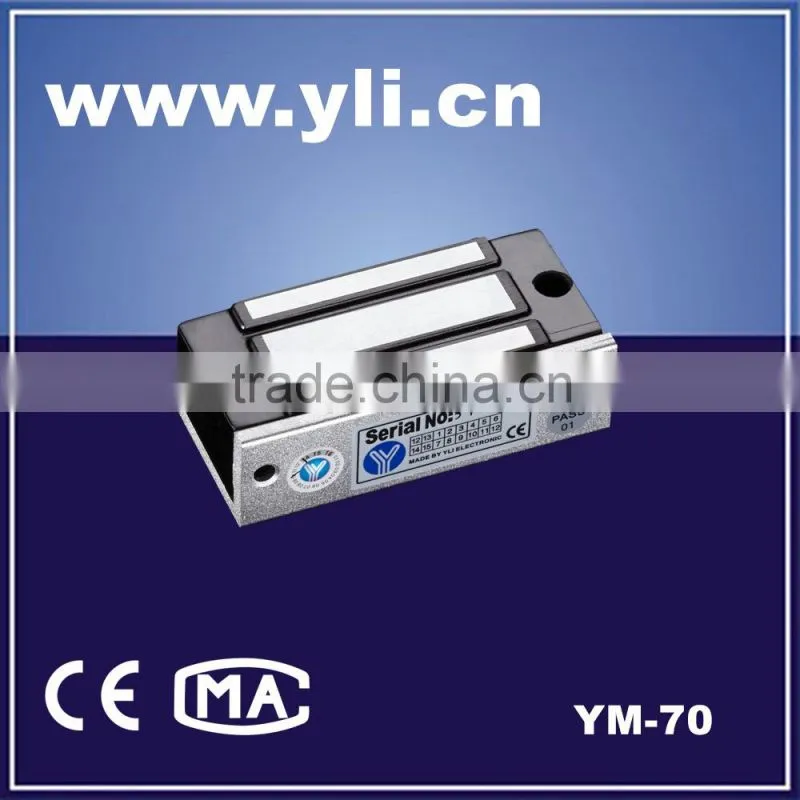

Product Picture Show
Quality Guarranty
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products.
On the contrary, YLI will charge extra if repair. More information, please browse our service center.
Statement
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance.
The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
Packing
Packing Quantity(PCS/CTN) |
40 |
Packing Size(L*W*H)(cm) |
54.5*20*17.8 |
Gross Weight(KG) |
25.2 |
