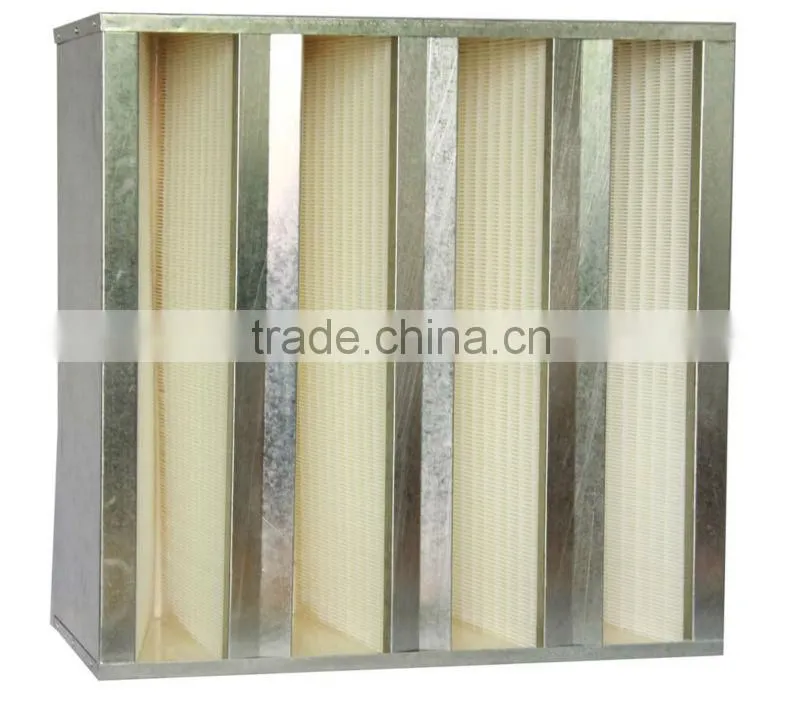

V-Type HEPA Air Filter ABS Plastic Filter Frame

Name: V-Type HEPA Air Filter ABS Plastic Filter Frame
Brand: Jowell
SKU: 133354841
Availability: InStock

Negotiable MOQ: 12 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Efficiency:

99.99%,F5 ~H13

Construction:

Other, V-type

Dongguan Zhuowei Purification Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Efficiency 99.99%,F5 ~H13

Construction Other, V-type

Filtration Grade Hepa Filter

Medium Material Fiberglass

Porosity 0.3um

Place of Origin Guangdong, China

Brand Name Jowell

Model Number FV

Dimension(L*W*H) 595x595x295mm

Weight 17kgs

Certification ISO9001

Warranty one year

After-sales Service Provided No overseas service provided

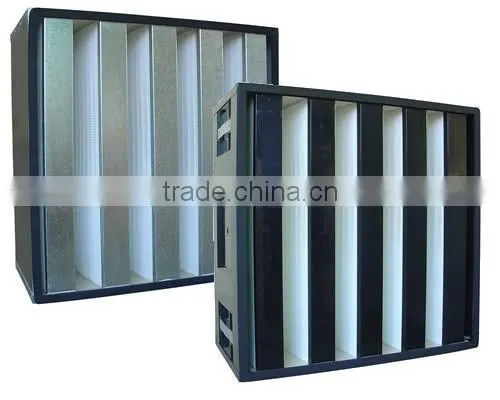

V-Type HEPA Air Filter ABS Plastic Filter Frame

Combined Sub-HEPA Filter

Features: large dust holding capacity; large airflow; low resistance; easy to install; light weight;
Efficiency:They are available in variety of efficiencies from 90% tested on 0.3 micron particles to 99.9%.

Model, dimensions and parameters:

Model	Dimensions (mm) W×H×D	Rated air flow M³/h	Initial resistance pa	Efficiency EN779	Material
					Media	Separator	Sealant	Frame
FV	595×595×295	3600	≤110	99.99%	Fiberglass	Thermosol	Polyurethane Rubber PU	Polypropylene ethylene
	295x595×295	1800	≤110
Model	Dimensions (mm) W×H×D	Rated air flow M³/h	Initial resistance pa	Efficiency EN 1822	Material
					Media	Separator	Sealant	Frame
HV	595x595x295	3600	≤110	99.99%	Fiberglass	Thermosol	Polyurethane Rubber PU	Galvanized steel or Aluminum optional
	295x595x295	1800	≤110
