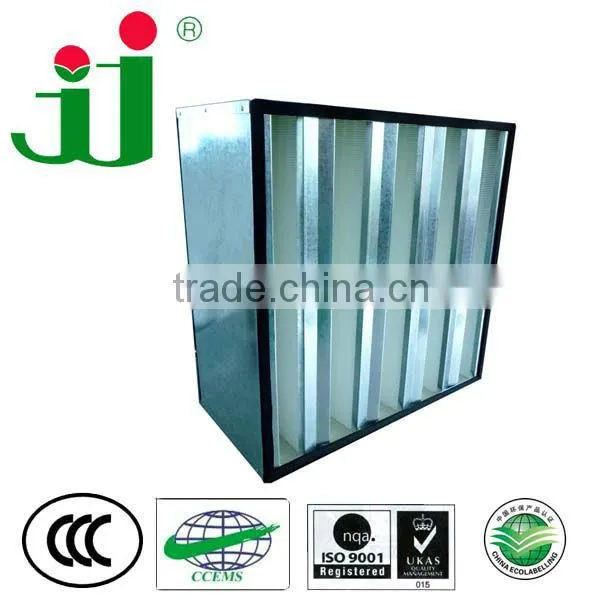

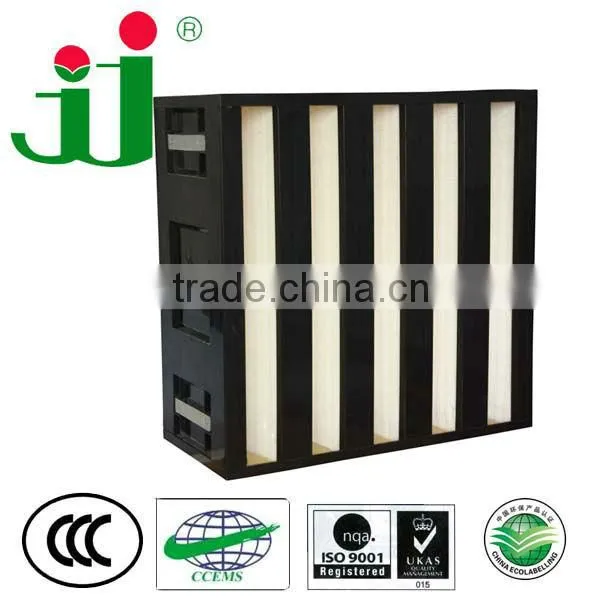

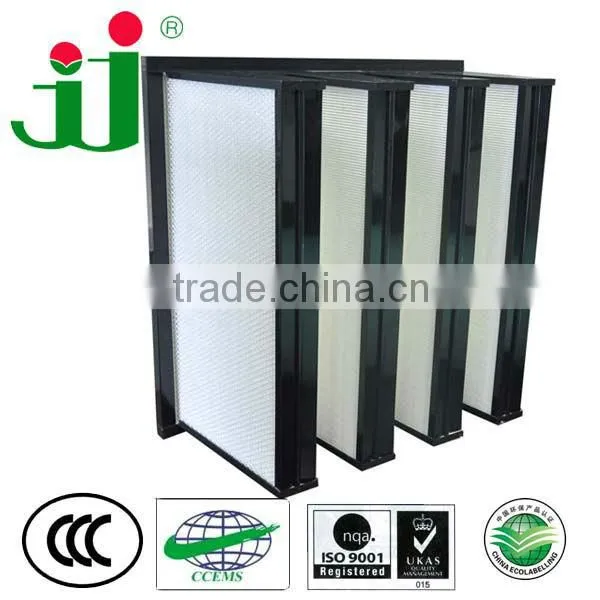

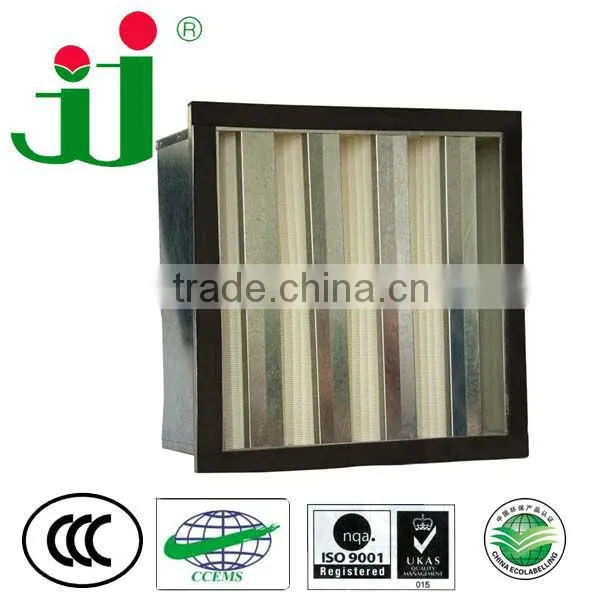

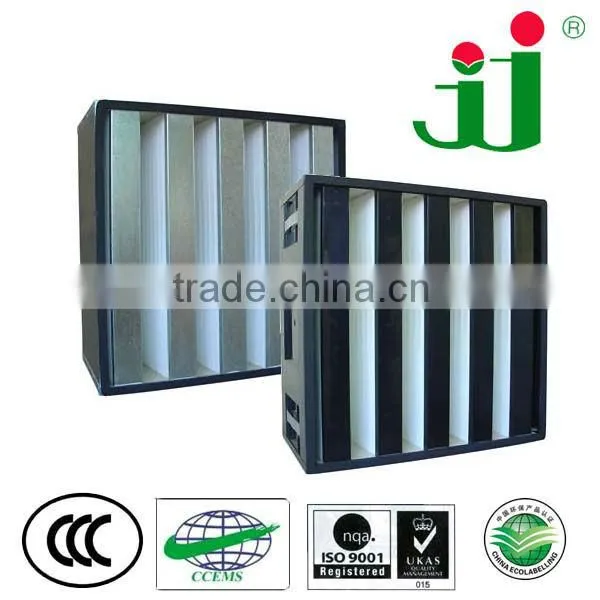

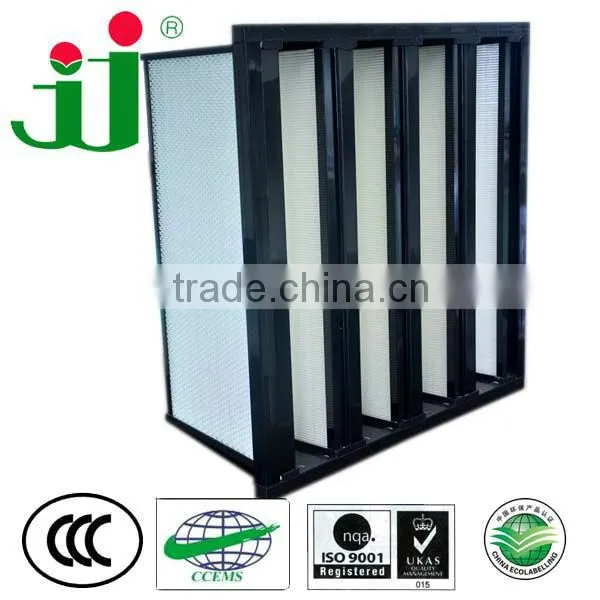

Mini Pleated V Bank Air Filter For Ahu

Name: Mini Pleated V Bank Air Filter For Ahu
Brand: Jowell
SKU: 133354845
Availability: InStock

US$ 34.67 - 90.32 MOQ: 12 Pieces

Key Specifications

Condition:

New

Efficiency:

F8~H13

Construction:

Other, V-type

Dongguan Zhuowei Purification Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Efficiency F8~H13

Construction Other, V-type

Filtration Grade Hepa Filter

Medium Material Fiberglass

Porosity 0.3um

Place of Origin Guangdong, China

Brand Name Jowell

Model Number FV

Dimension(L*W*H) 595x595x295mm

Certification ISO9001

Mini Pleated V Bank Air Filter For Ahu

Suitable for the terminal filtration of the air conditioning system and the air cleaning facility needing large air flow;
Low Resistance HVAC Hepa Air Filter;
Features: High efficiency, low resistance and large air flow;
Filtering Efficiency Grade: H13, H14(EN 1822);
Large filtering area to make sure the low resistance on the large airflow side;
Either standard galvanized steel frame or stainless steel frame;
Sealant: Polyurethane;
Sealed material: Molding plastic polyurethane or neoprene;
Max.operating temperature: 80 degree centigrade;
One-by-one test;

Model, dimensions and parameters:

Model	Dimensions (mm) W×H×D	Rated air flow M³/h	Initial resistance pa	Efficiency EN779	Material
					Media	Separator	Sealant	Frame
FV	595×595×295	3600	≤110	99.99%	PP	Thermosol	Polyurethane Rubber PU	Polypropylene ethylene
	295x595×295	1800	≤110
Model	Dimensions (mm) W×H×D	Rated air flow M³/h	Initial resistance pa	Efficiency EN 1822	Material
					Media	Separator	Sealant	Frame
HV	595x595x295	3600	≤110	99.99%	Fiberglass	Thermosol	Polyurethane Rubber PU	Galvanized steel or Aluminum optional
	295x595x295	1800	≤110
