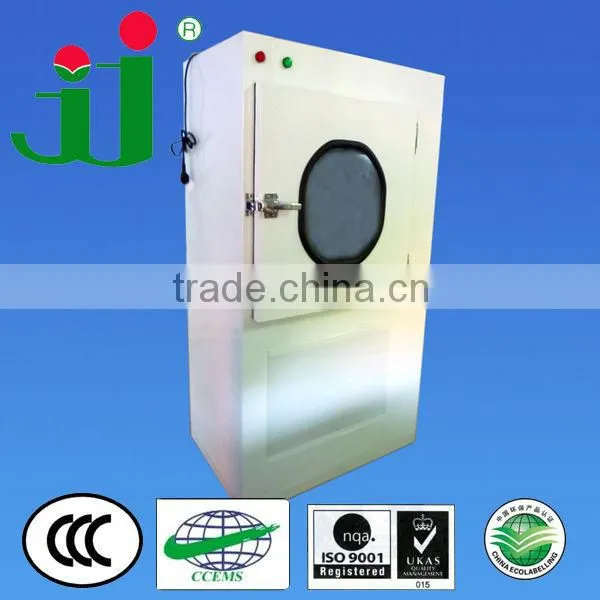

Air Shower Pass Box Transfer Window For Clean Room

Name: Air Shower Pass Box Transfer Window For Clean Room
Brand: Jowell
SKU: 133353535

US$ 520 - 618 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Jowell

Model Number:

ZW-ASP-600

Dongguan Zhuowei Purification Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Jowell

Model Number ZW-ASP-600

After-sales Service Provided Overseas third-party support available

Air Shower Pass Box Transfer Window For Clean Room

Main Features:

Built-in air shower significantly reduces surface contamination on materials entering or exiting the controlled environment. Materials entering or exiting the controlled environment are “scrubbed” by high velocity HEPA/ULPA filtered air jets with velocities of 25 m/s (4921 fpm). Contaminated air is then drawn through the base within the unit, filtered and recirculated.
An array of stainless steel nozzles direct high-velocity jets within the chamber.

Air Shower Pass Box Construction:

Robust construction qualifies the air shower pass box for the most demanding controlled environment applications. The unit is fully assembled and ready to install and operate when shipped. All components are designed for maximum chemical resistance and enhanced durability for a long service life.
Electrical interlock maintains cleanroom integrity by preventing both doors from being opened at the same time.
The air shower is constructed of SUS304 with an abrasion resistant oven-baked powder coated finish.
The pass box base surface is constructed of perforated stainless steel, making the work zone easy to clean.
Acrylic doors provide a clear view of the internal chamber.

Blower and Filtration Systems:

Zhuowei Air Shower Pass Boxes use Taiwan made permanently lubricated, centrifugal motor/blowers with external rotor designs. Selected for energy efficiency, compact design, and flat profile, the completely integrated blower assembly optimizes motor cooling, with unified rotating parts and overall component balance for smooth, quiet, vibration-free operation. Weight is equally distributed to all bearings to extend bearing life.
ULPA filter(s) provide 99.999% typical efficiency for particle sizes at 0.1 to 0.3 microns. The filters meet the recommended practice for HEPA performance (USA), and EN 1822 for H13 performance (EU).
A disposable pre-filter with 85% arrestance extends the life of the main filter.
Optional UV lamp, must be factory fitted, specify when ordering.
Air is forced by the blower(s) through ULPA filter(s) which are 99.999% efficient against particles of 0.1 to 0.3 microns.
Filtered air is ejected through nozzles at high velocities into the chamber. These turbulent air streams disperse particulate matter on all surfaces.
Dispersed particulate matter migrate with the air stream towards the lower areas in the air shower chamber.
The air is continuously filtered and recirculated.

Specifications:

PASS BOX WITH AIR SHOWER
Model	ZW-ASP-500	ZW-ASP-600	ZW-ASP-700	ZW-ASP-800
External Size	W820 x H1360 x D500	W940 x H1450 x D600	W1020 x H1560 x D700	W1120 x H1660 x D800
Internal Size	W500 x H500 x D500	W600 x H600 x D600	W700 x H700 x D700	W800 x H800 x D800
External Material	Cold rolled steel plate with powder coated or stainless steel
Internal Material	Stainless steel
Power Consumption	285W
Fan Rum(R/M)	2800
Noise	≤ 80 db(A)	≤ 80 db(A)	≤ 80 db(A)	≤ 80 db(A)
Nozzles	4 PCS	4 PCS	4 PCS	4 PCS
Efficiency	99.99% @ 0.3UM	99.99% @ 0.3UM	99.99% @ 0.3UM	99.99% @ 0.3UM
Power Supply	2P 220V 50/60Hz
Door Lock	Mechanically or electronically interlocked
Custom made sizes are available.
