MODEL |
SLP11 |
Material: |
steel |
Yield strength of Material: |
Minimum yield strength>=235n/mm2 for Q235, S235 and SS400 Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50 |
Pole height: |
11 |
Length of one part |
without joint |
Wall thickness: |
3-4mm |
Pole's Shape Can be made: |
Polygonal, Round, Taper Octagonal, Taper round, Round conical, Taper Square, Square. |
Arm type can be made: |
Single arm, Double arm, Tri-arm, Four-arm |
Arm Diameter: |
Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit to any diameter’s lamps. |
Welding |
Advanced CNC welding equipment. flaw testing, internal and external double welding makes the welding beautiful in shape. The international welding standards are applied. |
Galvanization: |
Hot dip galvanization with thickness of 80-100µm average in accordance with Turkish TSE standards or European standards. |
Manufactury Capacity Per Day: |
50 |
|
Wall thickness Tolerance:
|
+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm |
Painting color: |
(RAL)Color card or Refer to client’s requirement |
Surface treatment 1: |
Rough pole |
Surface treatment 2: |
Hot dip Galvanizing antirust. |
Surface treatment 3: |
Hot dip galvanizing with powder coating |
Temperature range |
-35 °C~+65 °C |
Wind Speed: |
Aganist wind pressure of 120Km/h to 180Km/h, or according to client design. |
Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
Ground mounted: |
The length buried underground as per customer’s requirement. |
Quality Control |
According to ISO9001-2008 requirements. |
Certificates |
ISO9001-2008, SGS Audited Supplier |
Other |
Less land occupation & easy maintenance. |
Galvanized Hexagonal Road / Street Lighting Poles.
- Our products are manufactured under strict quality concerns witrh maximum smooth finishing and high quality raw material.
- Our hot dip galvanized poles are of highest norms complying TSE Turkish Standardization and European Standards.
- Our products are packed according to export standards together with bolt and nuts for fixation.
| Pole Hieghts | : 3 m - 15 m |
| Type | : Single sheet polygon up to 12m, addition after 12m |
| Materials | : St 37 - S235JR - EN 10025 |
| Ground Fix | : Ground Flange for easy fixation. |
| Surface Guard | : Hot Dip Galvanise EN ISO 1416 |
| Surface Coating | : Electrostatical Powder Coat (Optional) |
| Bolt/Nut | : ISO 898.1/5.8 |
Other:
Arm Console can be any shape or at any length, customisation with drawing.
1-Single Arm, 2- Double Arm, 3-Triple Arm, 4- Quadruple Arm 5- Travers Flood Projection 6- Basket .
Static Calc. : EN 40-3-3 , ANSI/TIA 222-G , ASCE – 72, TEDAS
With reference to the column length we can specify wind speeds between 90kmh up to 180kmh for special post projects.
Adaptation of Solar panel mounting brackets or battery boxes on top, middle, ground or underground level.
Break away / breakaway base is optional.

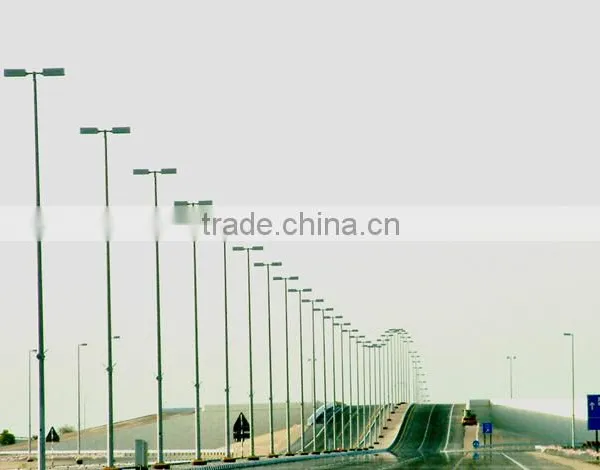

| Areas Of Usage | |
| Streets and Roads | |
| Intercity / Interstate Highways | |
| Parking Lots | |
| Airports | |
| Ports | |
| Motorways | |
| Parks and Gardens | |
| Walkway / Running Paths | |
| Construction Sites | |
| Squares / Agoras | |
| Industrial Areas | |
| Sports Areas | |
| Arenas | |
| Building Lighting | |
| Open Campus / Recreational | |
| Military Zone | |
| Junstions | |
| Insite Compound Sites | |
| Wildlife Zones | |
|
Height /m |
Bottom Dia | Top Dia | Length - Main - mt | Length Bottom mt | Sheet Thickness- main | Sheet Thickness Bottom | Ground Flange Plate | Ground Plate Thickness- mm | BTW Holes - mm | Anchor Type |
| 5 | 125 | 60 | 5,00 | 3 | 220 | 12 | 160 | M12 | ||
| 6 | 140 | 60 | 6,00 | 3 | 260 | 12 | 180 | M16 | ||
| 7 | 170 | 60 | 7,00 | 3 | 280 | 14 | 200 | M16 | ||
| 8 | 180 | 60 | 8,00 | 3 | 300 | 14 | 210 | M16 | ||
| 9 | 205 | 60 | 9,00 | 3 | 360 | 16 | 250 | M20 | ||
| 10 | 220 | 60 | 10,00 | 3 | 400 | 16 | 270 | M20 | ||
| 11 | 235 | 60 | 11,00 | 3 | 420 | 16 | 290 | M20 | ||
| 12 | 250 | 60 | 12,00 | 3 | 420 | 16 | 290 | M20 | ||
| 13 | 225 | 60 | 7,00 | 6,35 | 3 | 4 | 440 | 18 | 290 | M24 |
| 14 | 240 | 60 | 8,00 | 6,35 | 3 | 4 | 440 | 18 | 290 | M24 |
| 15 | 250 | 60 | 9,00 | 6,35 | 3 | 4 | 440 | 18 | 290 | M24 |
Console
| Differing according to the shape of the pole/post, the arm console can be up to 3 meters. (0.5 mt - 1 mt - 2 mt - 3 mt) |
| Anchor |
| The ground fixation point for a strong and tight fastening, generally with concrete block. |
