Home > Products > Open frame monitor > Metal Case 4:3 1280*1024 Open Frame Industrial Control Screen Monitor

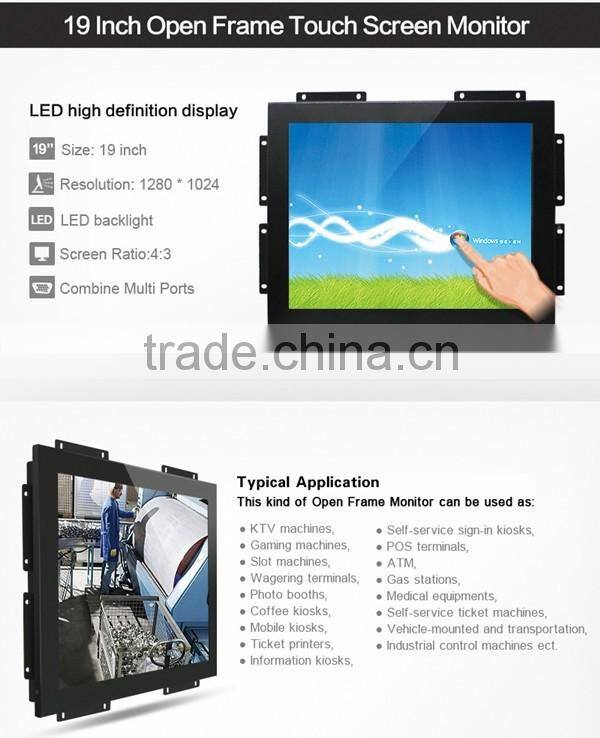

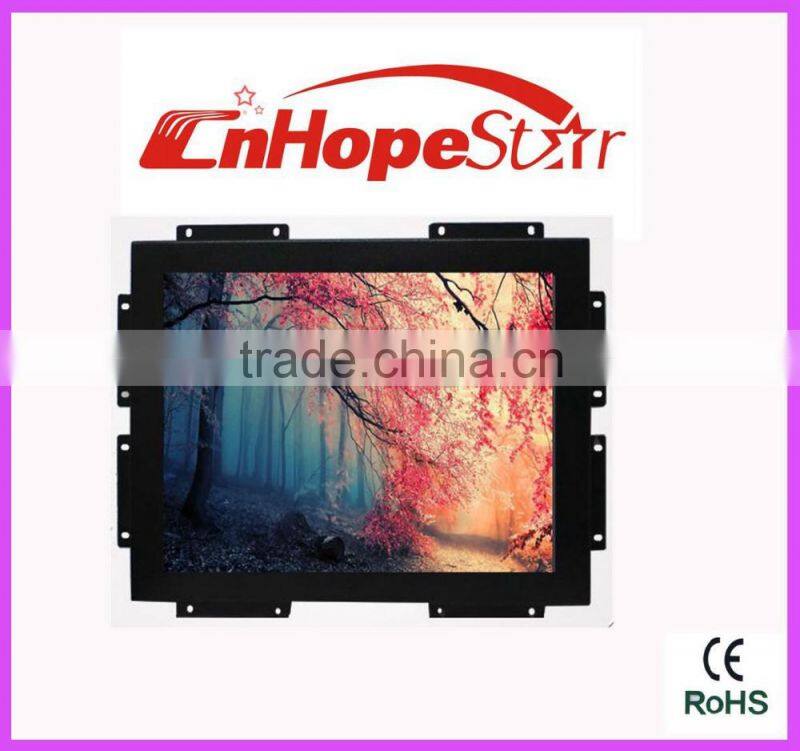

Metal Case 4:3 1280*1024 Open Frame Industrial Control Screen Monitor
- 10000 Unit / Units per Month
- Shenzhen/HK
- T/T Credit Card
You May Like
-
Open Frame Metal Case Industrial Use 5 Wire Resistive Touch Monitor
-
VGA/USB Metal Case Open Frame 17 Inch Touch Screen Monitor
-
VGA/USB Metal Case Open frame TFT LCD 10.4 Inch Touch Screen Monitor
-
4:3 wall mount 14inch lcd open frame touch screen monitor
-
VGA/USB Metal Case Open Frame 15 Inch Touch Screen Monitor
-
VGA/USB Metal Case Open Frame TFT LCD 12 Inch Touch Screen Monitor
Product Details
Products Status | Stock | Screen Size | Other, 19" | |
Type | Resistive | Interface Type | D-Sub, USB, Other, D-Sub, USB, 5 Wire Resistive Touch | |
Resolution | 1280 x 1024 | Brand Name | HOPE or OEM | |
Model Number | 1911M | Place of Origin | Guangdong, China |
Product Description
Features:
1. Resistive,IR or capacitive touch is available
2.Single or multi touch available
3.Black or White housing per your request
4.1280*1024 Standard High Resolution
5. HDMI,Speaker,VGA,USB,etc is optional
6. OEM brand is welcome
7.Plastic Case or Metal case
8.USB or RS232 for touch screen
9. Operating system or all in one pc is available
10.OEM or ODM size , Shape, color available
Technical Data:
LCD technical data
| LCD Panel | LG,Samsung,Chimei,etc |
Working Voltage | DC 12V DC,AC100-240V | |
Working Temperature | -10-60 degree | |
Interfaces | VGA and USB touch or RS232,etc | |
Aspect Ratio | 4:3 19 inches (diagonal) | |
Resolutions | 1280(H)×1024 (V) pixel | |
Adjust Angle | Verticale and Horizontal | |
Pixel pitch | 0.285H*0.285V | |
LCD Brightness | 450 cd/m2 | |
Color | 16.7M | |
ntrast ratio | 1000:1 | |
Response time | 5ms | |

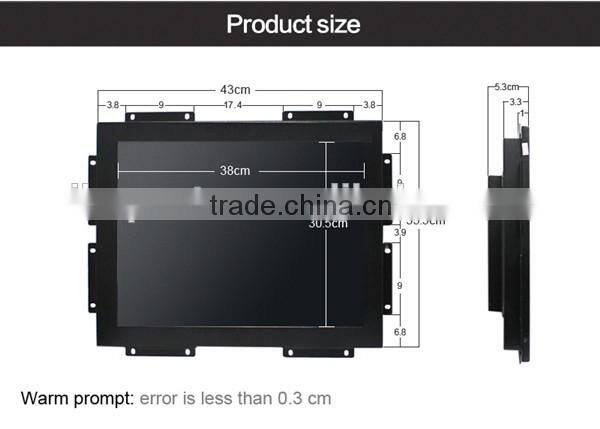

Display size | (H x W) :376 x 301 mm | |
Consumption | less than 35W | |
View Angle | 170 degrees(H)/170 degrees(V) | |
Touch screen
| infrared touch screen , support 3M | |
Resolution :4096*4096 | ||
Material : Pure glass | ||
Light Transmission :90-92% | ||
Response Time :Less than 10.4ms | ||
Touch Activation Force :Touch force less than 100g (adjust able) | ||
Durability :Scratch-free; More than 50,000,000 touches in one location without failure | ||
Operation temperature -20°C to +50°C (Touchscreen); 0°C to +65°C (Controller) | ||
Humidity :90% RH AT 40°C, noncondensing | ||
Operation Altitude :3000m | ||
Support Windows XP,7,8,etc | ||

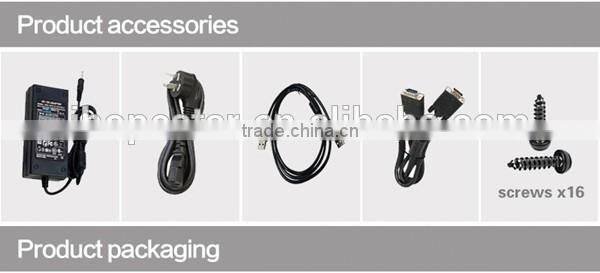

Accessories
| 1pcs Stand | |
1pcs Instruction Manual | ||
1 PCS USB Cable | ||
1pcs VGA Cable | ||
1pcs CD Drive | ||
1pcs Touch Pen | ||
1 pcs power cable | ||
1 pcs power adapter |
Detail: one unit box: 537*142*467 Carton box:585*545*480 external carton(4PCS)
G.W.: 6.5KG G.W. (with spicial stand):8KG
Our Services
1. Samples are avialable.
2. Delivery time is within 3 days.
3. OEM samples are also available.
After-sales service:
Guarantee period: 1 year
After the guarantee, we also can provide professional consulting or advice.
Certificates:
Shenzhen Hopestar Sci-Tech Co., Ltd has been in the business line of LCD and LED monitor since 2002.
With professional developing team and sales team, our product are widely welcomed all over the world.
Now we are maily focus on LCD and LED monitor, Touch screen monitor, car monitor, CCTV monitor, Advertising player
all in one pc, TVs, Tablet PC,etc. For more information, pls visit our website or contact us. Thanks
Contact Us
- Shenzhen Hopestar Sci-Tech Co., Ltd.
- Contact nameAudrey Z Chat Now
- Phone86-0755-82579059
- Address(office function only) Rm31AB, Block B, Modern Window Bldg. Huaqiang north road, Futian District Shenzhen city, China , Shenzhen, Guangdong
