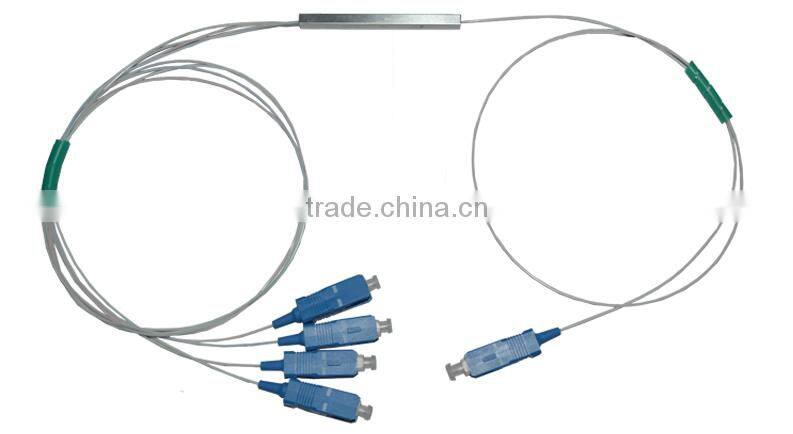

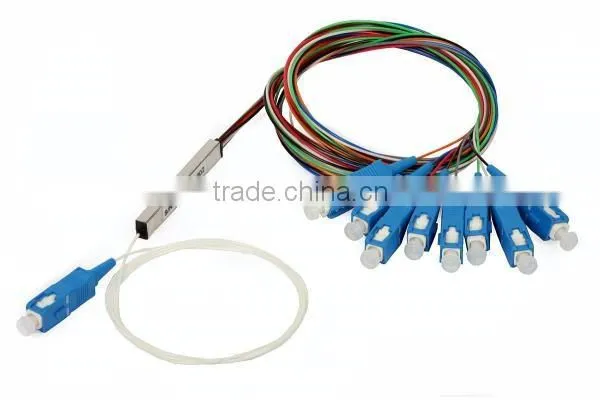

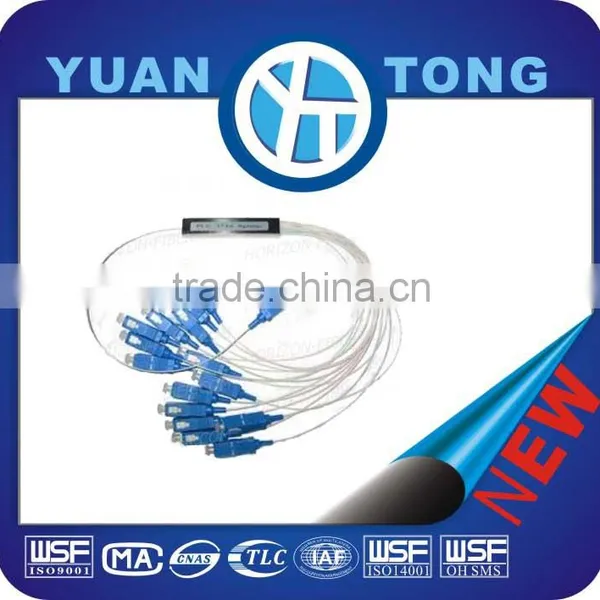

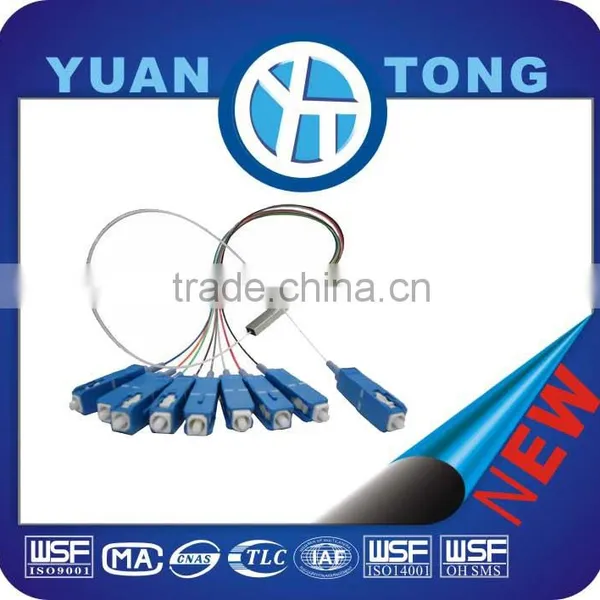

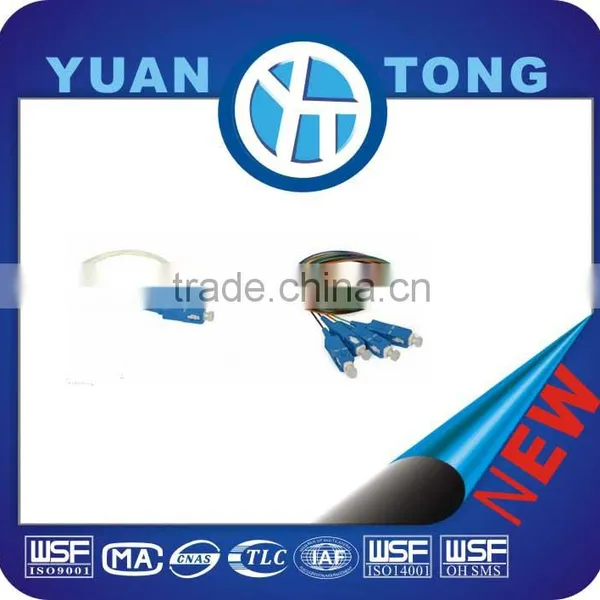

SC 1x2 1x4 1x8 1x16 Fiber Optic PLC Splitter Coupler
Application
- FTTH System
- Cable Television (CATV)
- Local Aerial Networks (LAN)
- Passive Optical Networks (PON)
- Test Equipment
Features
- Low Insertion Losee
- Low Polarization Dependent Loss
- High Reliability
- High Uniformity
- Outstanding Optical Performance
- East Installation
- Excellent Envirmental Stability
Parameters |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
Operating wavelength (nm) |
1260 - 1560 |
|||||
|
Insertion loss (dB) (S/P grade) |
4.0/3.8 |
7.3/7.0 |
10.5/10.2 |
13.5/13.5 |
16.9/16.5 |
21/21.5 |
Loss uniformity (d/B) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
Return loss (dB)(S/P grade) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
|
Polarization dependent loss (dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength dependent loss (dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature stability (-40 - +85℃) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Operating temperature (℃) |
-40 ~ +85 |
|||||
Storage temperature (℃) |
-40 ~ +85 |
|||||
Sichuan Yuantong Communication Co.,Ltd was established in 2010, which covers an area of 4000 square
meters in the land of Abundance---Chengdu, Sichuan with US$500 million of registered capital.
Our company is a high-tech company putting R7D, production and sales into integrated for the fiber optic
cables and related accessories that are widely used in communication, electric power and other industries.
Yuantong owms a team wit professional and technical skill, and has a great deal of experience in production
and sales. "Quality First" is the guideline of us.
Yuantong already has a significant partnership with China Mobile, China Telecom and China Unicom. Also we
build good relationship with the customers from South America, Middle East and Southeast Asia, praised by
the majority of the users all around the world.
WHY CHOOSE YUANTONG COMMUNICATION?
Firstly, we are manufacturer for the truth, we can control the quality, delivery time, cost of raw material. In this
way, we can provide you with high-end product, competitive price and superb service.
Secondly, we have a very professional sales team, who are very familiar with all kinds of overseas trading
terms and customer clearance documents. In this way, we will make your import process very smooth and
pleasant.
Thirdly, your every inquiry will be took seriously and replied immediately within 24 hours. If the inquiry is
complicated, we will reply you the second day.
Last but not the least, we have gained Alibaba trade assurance, so there is no worry about our quality.
Payment:
Massive order: T/T, T/T&LC are both acceptable
Small order: T/T,credit-card, west-union are acceptable
Shipping & Delivery
Delivery after money received, massive quantity by sea while small patch by air.
Warranty:
All products have been tested before delivery.
All products have 1 year after-sale servce. If there is no man-made problem, we will replace or repair for you
freely. Even after 1 year, if any problem happens, our tem will do our best to help you figure it out.
