Product Details
Place of Origin: | Sichuan, China | Brand Name: | Yuantong | Model Number: | PLC |
Product Description

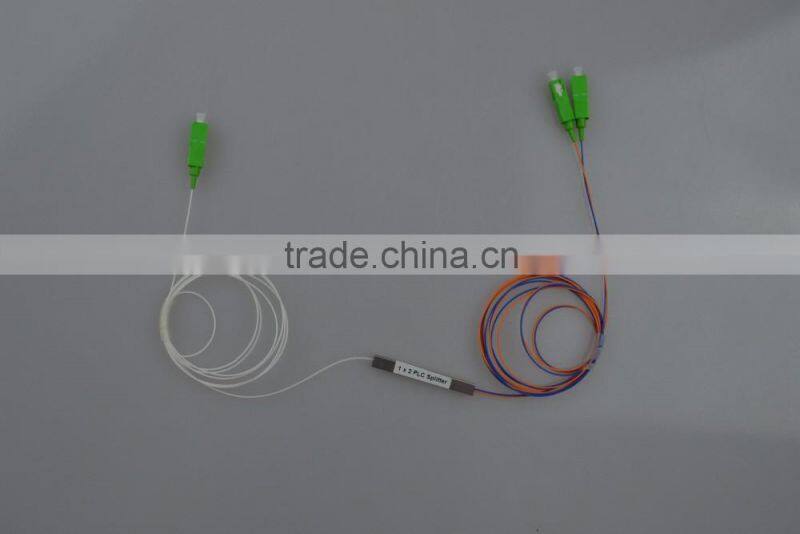

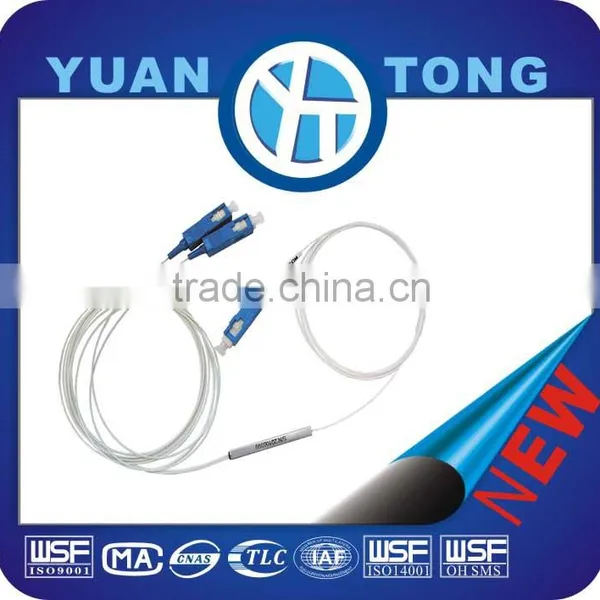

1x2 Single Mode Fiber Optic Splitter Coupler
Application
- FTTH System
- Cable Television (CATV)
- Local Aerial Networks (LAN)
- Passive Optical Networks (PON)
- Test Equipment
Features
- Low Insertion Losee
- Low Polarization Dependent Loss
- High Reliability
- High Uniformity
- Outstanding Optical Performance
- East Installation
- Excellent Envirmental Stability
Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Operating wavelength (nm) | 1260 - 1560 | |||||
Insertion loss (dB) (S/P grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.5/13.5 | 16.9/16.5 | 21/21.5 |
Loss uniformity (d/B) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
Return loss (dB)(S/P grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
Polarization dependent loss (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength dependent loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature stability (-40 - +85℃) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating temperature (℃) | -40 ~ +85 | |||||
Storage temperature (℃) | -40 ~ +85 |
Order Information
- Two out of the 1310nm, 1490nm and 150nm operating wavelength can be selected

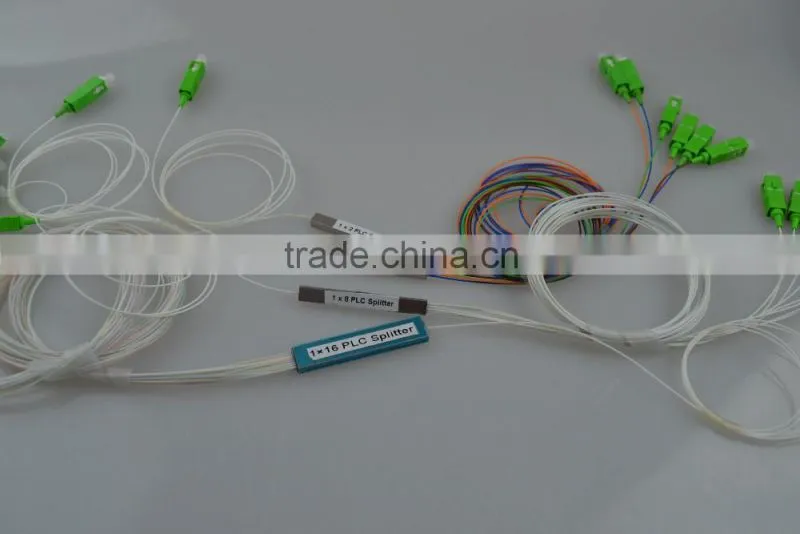

- 1x2, 1x4, 1x6, 1x8, 1x12, 1x16, 1x32, 1x64 configurations of splitters are available
- 250um bare fiber, 0.9mm loose tube, 2.0mm or 3.0mm LSZH fiber cables can be selected
- The length of input or output fibers can be also customized
