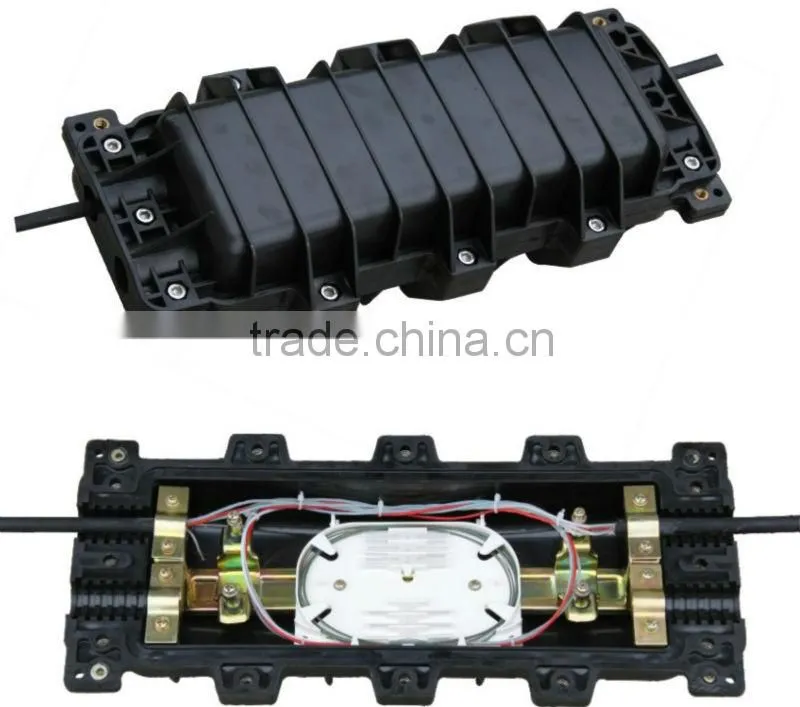

optical fiber splice joint closure
- 10000 Piece / Pieces per Month
- SHENZHEN
- T/T Credit Card PayPal
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Brand Name: | Yuantong | Model Number: | YT-A2 |
Product Description
Specifications
Specifications1.144 core fiber optic splice closure
2.High quality ABS material
3.Cable ports:2 in and 2 out
4.Max Capac
Working Environment:
Working temperature: -5°C to +40°C
Relative humidity:≤85%(at +30°C)
Atmospheric pressure: 70Kpa-106Kpa
Applications:
Aerial-hanging
Wall-mounting
Direct-bury

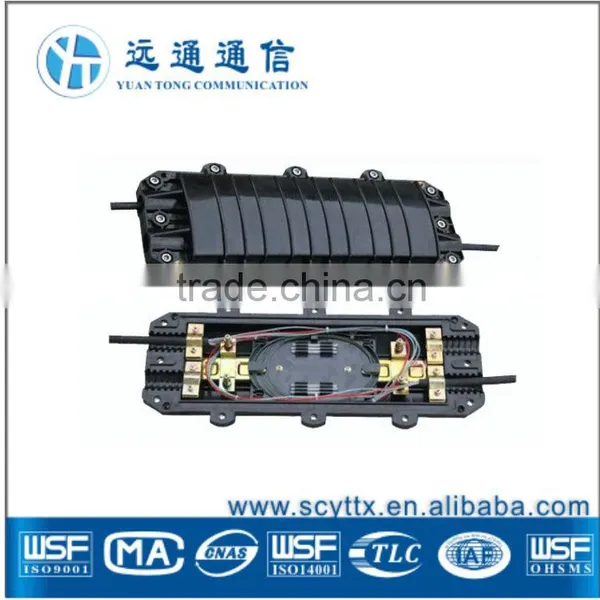

144 core fiber optic splice closure introduction:
144 core fiber optic splice closure provide suitable for cable whose diameter is 10-22mm, they can be used in aerial, duct and direct buried application. These products are made of high quality ABS material and with mechanical sealing structure filled with the sealing material.It can be reopened and reused without changing sealing material.
Specification:
Fiber optical cable diameter(mm) | φ10~φ22 |
Max in and out cable No. | Two in and two out |
Max Capacity | 168 cores(single fiber) |
Capacity of splice tray | 24 ( single fiber) |
Dimension(mm) | 435x190x120 |
Sealing structure | Sticky cincture |
Features:
1, Two- way cable entries and exists design
2, Can be reopened
3, Can be fixed by metal work
4, Clear optical fiber cable
5. Closure body is made by Super ABS material, and the bolt was made in stainless steel
6 Great corrosion resistance
7. Suitable for any harsh environment
8. Max capacity:168 cores
9. All the index reach the YD/T814-2004
Package detail: Carton
Size(mm) | Net Weight(Kg) | Package Size(mm) | Gross Weight(Kg) | Capacity(PCS) |
435x190x120 | 3 | 515x425x575 | 24 | 8 |
Installation procedure:
1. Open the closure
2. Fix the cable and check its length in the closure
3. Strip off the cable and cable jacket
4. Seek out the cable cores and get preparation for cable fixation
5. Fix the strengthen cores and reorganize the extra cores
6. Fix the cable an splice the cable
7. Arrange the splice protective tube and fiber
8. Complete inspection
9. Install the dome.
1.Order Information:
Trade term:EXW/FOB
Delivery Time:3-5 working days time.15-25 working days mass order.
Warranty :
2.Trade Terms:
Payment term:T/T 50% Deposit after order confirmed,later delivery pay the 50%(remaining balance) after goods ready before shipping.
Sample :Be ready in 3~10 days once payment received.
3.Our services:
For all your inqires about our product,we will reply to you within in 24 hrs.
We offer OEM and ODM services. Can print your logo in our products.
