Product Details
| Place of Origin: | Sichuan, China | Brand Name: | YUANTONG | Model Number: | Fast Connector |
Product Description

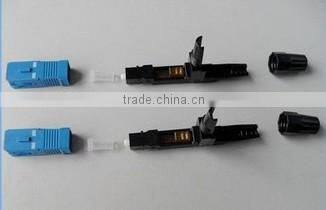

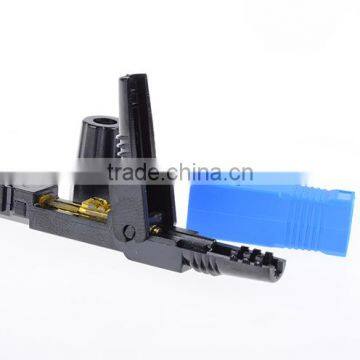

FTTH Fiber Optic Fast Connector High Quality SC/UPC
Feature
1.quickly assembly connetor
2.high return loss,low insert
st effective portable
4.install quickly
5.reliable and superior optical performance
Application:
1.Patch panels
2.Distribution frames
3.Maintenance or emergency restoration of fiber networks
4.FTTH Outlets
5.Connection at the desk for LAN environments
Specification
Applicable for | 3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
Optical fiber diameter | φ125um (657A&657B) |
Tight buffer diameter | φ250um |
Fiber mode | Single mode |
Operation time | About 10s (exclude fiber cut) |
Insert loss | ≤0.3dB (1310nm & 1550nm) |
Return loss | ≥45dB |
Fastening strength of naked fiber | ≥ 5N |
Tight clamping force cladding | ≥ 8N |
Tensile strength | ≥ 50N |
Using temperature | -45°C~+80°C |
Usually use plastic bag and carton,or as per customized
