Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > GYXTC8S Metallic Strength Member Fig.8 Self-supporting Steel PE Sheath Outdoor Fiber Optic Cable

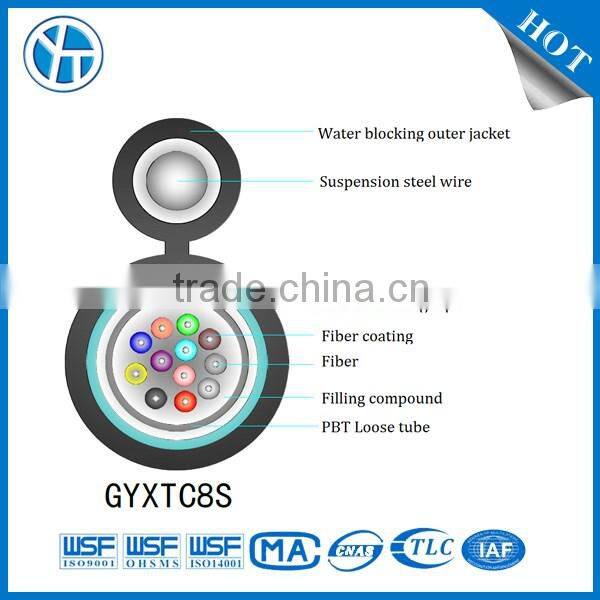

GYXTC8S Metallic Strength Member Fig.8 Self-supporting Steel PE Sheath Outdoor Fiber Optic Cable
US$ 200 - 300
MOQ: 1 Millimeter
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
OEM/Yuantong
Model Number:
GYXTC8S
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing/Shanghai/Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OSP Loose Tube Direct Burial Armored Single Mode Flooded Fiber Optic CableUS$ 0.01 - 2MOQ: 1 Meter -
OSP Loose Tube Single Mode Flooded All Dielectric Fiber Optic CableUS$ 0.01 - 1MOQ: 1 Meter
-
Aluminum Tape Armored Duct Fiber Optic G652 CableUS$ 0.02 - 1MOQ: 1 Meter
-
SM G652D Optical Fiber Aluminum Armoured Single Mode CableUS$ 0.02 - 2MOQ: 1 Meter
-
Aluminum Tape Armor Duct Optical Fiber Cable Single Mode GYTAUS$ 0.02 - 1MOQ: 1 Meter
Place of Origin
Sichuan, China
Brand Name
OEM/Yuantong
Model Number
GYXTC8S
Type
Coaxial
Product description
| Data-sheet of Outdoor&Indoor fig.8 type cable | |||
| standard:YD/T 1155-2011 | |||
| No. | Model | Description | Applications |
| 1 | GYXTC8S | Metallic strength member,Outdoor loose tube, fig.8 self-supporting, Steel PE sheath communication outdoor optical cable | Self-supporting overhead laying |
| 2 | GYXTC8A | Metallic strength member,Outdoor loose tube, fig.8 self-supporting, Aluminium PE sheath communication outdoor optical cable | Self-supporting overhead laying |
| 3 | GYTC8S | Metallic strength member,Outdoor layer filling loose tube, fig.8 self-supporting, Steel-armored, PE sheath communication outdoor optical cable | Self-supporting overhead laying |
| 4 | GYTC8A | Metallic strength member,Outdoor layer filling loose tube, fig.8 self-supporting,Aluminium-armored, PE sheath communication outdoor optical cable | Self-supporting overhead laying |
| 5 | GYTC8Y | Communication outdoor optical cable,Metallic strength member,Layer loose tube,full filling compound,PE sheath,Fig.8 self-supporting optical cable | Self-supporting overhead laying |
| 6 | GYGTC8S | Metallic strength member,Outdoor framework layer filling loose tube, fig.8 self-supporting, Steel-armored, PE sheath communication outdoor optical cable | Self-supporting overhead laying |
| 7 | GYGTC8A | Metallic strength member,Outdoor framework layer filling loose tube, fig.8 self-supporting, Aluminium-armored, PE sheath communication outdoor optical cable | Self-supporting overhead laying |
| 8 | GYGTC8Y | Metallic strength member,Outdoor framework layer filling loose tube, fig.8 self-supporting, PE sheath communication outdoor optical cable | Self-supporting overhead laying |
| 9 | GYFTCF8Y | Non-metallic strength member,Outdoor layer filling loose tube,All dielectric fig.8 self-supporting, PE sheath communication outdoor optical cable | Self-supporting overhead laying |
| 10 | GYFTC8S | Metallic strength member,Outdoor layer filling loose tube, Non-metallic cable core,fig.8 self-supporting,Steel-armored, PE sheathed communication outdoor optical cable | Self-supporting overhead laying |
| 11 | GYFTC8A | Metallic strength member,Outdoor layer filling loose tube,Non-metallic cable core, fig.8 self-supporting, Aluminium-armored, PE sheath communication outdoor optical cable | Self-supporting overhead laying |
| 12 | GYDXTC8S | Metallic strength member,Outdoor central filling loose tube,Non-metallic cable core, fig.8 self-supporting, Steel-armored, PE sheath communication outdooroptical fiber ribbone optical cable | Self-supporting overhead laying |
| 13 | GYDXTC8A | Metallic strength member,Outdoor central filling loose tube,Non-metallic cable core, fig.8 self-supporting, Aluminium-armored, PE sheath communication outdoor optical fiber ribbone optical cable | Self-supporting overhead laying |
| 14 | GYDGC8S | Metallic strength member,Outdoor framework layer full-dry loose tube,Non-metallic cable core, fig.8 self-supporting, Steel-armored, PE sheath communication outdoor optical fiber ribbone optical cable | Self-supporting overhead laying |
| 15 | GYDGC8A | Metallic strength member,Outdoor framework layer full-dry loose tube,Non-metallic cable core, fig.8 self-supporting, Aluminium-armored, PE sheath communication outdoor optical fiber ribbone optical cable | Self-supporting overhead laying |
data-sheet
| No. | Model | Tensile Strength (N) | Crush Resistance (N/100mm) | Bned Radius (mm) | Working Temperature(℃) | Max. attenuation (dB/km) | fibers | OD(mm) | weight kg/km | |||||
| Long term | short term | Long term | short term | Static(D) | Dynamic (D) | Min.TA | Max.TB | 1310μm | 1550μm | |||||
| 1 | GYXTC8S | 1000 | 3000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~12 | 6.5~9.5 | 90~110 |
| 2 | GYXTC8A | 1000 | 3000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~12 | 6.5~9.5 | 80~100 |
| 3 | GYTC8S | 3000 | 8000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 9.5~18.3 | 140~320 |
| 4 | GYTC8A | 3000 | 8000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 9.5~18.3 | 110~300 |
| 5 | GYTC8Y | 3000 | 7000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 8.2~17.8 | 102~268 |
| 6 | GYGTC8S | 3000 | 8000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 9.5~18.3 | 140~320 |
| 7 | GYGTC8A | 3000 | 8000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 9.5~18.3 | 110~300 |
| 8 | GYGTC8Y | 3000 | 7000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 8.2~17.8 | 102~268 |
| 9 | GYFTCF8Y | 2000 | 5000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 9.5~18.3 | 65~155 |
| 10 | GYFTC8S | 2000 | 5000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 9.5~18.3 | 95~18.3 |
| 11 | GYFTC8A | 2000 | 5000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 9.5~18.3 | 85~186 |
| 12 | GYDXTC8S | 1000 | 3000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 11~21.8 | 165~295 |
| 13 | GYDXTC8A | 1000 | 3000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 11~21.8 | 147~285 |
| 14 | GYDGC8S | 1000 | 3000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 17.3~29.5 | 311~585 |
| 15 | GYDGC8A | 1000 | 3000 | 300 | 1000 | 10D | 20D | -40°C | +60°C | ≤0.36 | ≤0.22 | 2~144 | 17.3~29.5 | 305~538 |
Packaging & Shipping
Company Information
Our Certifications
Our Services
1. Order Information:
Trade term: EXW/FOB/CIF
Delivery Time: 3-5 working days time. 15-25 working days mass order.
2. Trade Terms:
Payment term: T/T 30% Deposit after order confirmed, later delivery pay the 70% (remaining balance) after goods ready before shipping.
Sample: Be ready in 3~10 days once payment received.
3. Our services:
For all your inqires about our product, we will reply to you within in 24 hours.
We offer OEM and ODM services, and we can print your logo in our products.
FAQ
1.Can you provide free samples for us?
Sure, we can provide the free samples for you, but the shipping cost need be on your account.
2.What’s the lead time for all the goods that I required?
About the 3-4 working days after getting payment,or depending on quantity.
3.What’s the warranty for your products?
Normally it is 2 years for accessories,20 years for optical cables.
4.What’s your payment term?
TT/ LC/ Paypal all are ok.
5.What’s the MOQ for your products?
1pcs is okay.
