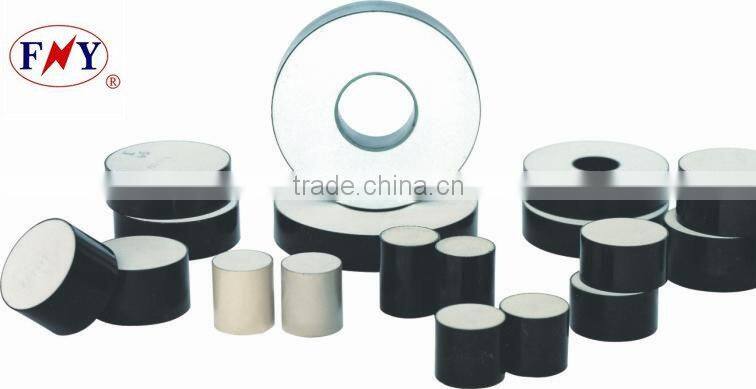

Varistor
- Tianjin or Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | FaYun | |
| Model Number | D4 | Type | Varistor | |
| Technology | Metal Oxide | Package Type | Other |
Product Description
Specifications
Varistor1.Used:Power Station Electric mahinery,arrester
2.Diameter:40-42mm
3.Hight:21-31mm
4.aluminium paint,zinc oxide
Varistor
1.Reference voltage(KV):4.6-5.5
2.Withstand of current impulse(2ms):100/150
3.Usage:It used in arrester and insulator
Specification |
| MOV40×21 | MOV40×25 | MOV40×31 | MOV42×21 | MOV42×25 | |
Diameter | mm | 40±1 | 40±1 | 40±1 | 42±1 | 42±1 | |
Thickness | mm | 21±1 | 25±1 | 31±1 | 21±1 | 25±1 | |
D.C. reference voltage (U1mA) U1mA | kV | 4.6±0.3 | 5.6±0.3 | 6.8±0.3 | 4.6±0.3 | 5.5±0.3 | |
Leakage current under 75%U1mA | uA | <15 | <15 | <15 | <15 | <15 | |
Max. ratio of residual voltage (8/20us) |
| 1.83@10kA | 1.83@10kA | 1.83@10kA | 1.82@10kA | 1.82 @10kA | |
Current impulse withstand capability | 4/10us | kA | 100 | 100 | 65 | 100 | 100 |
2ms | A | 250 | 250 | 250 | 300 | 300 | |
Recommended rated voltage | kV | 3.0 | 3.8 | 4.5 | 3.0 | 3.8 | |
Recommended continuous operating voltage | kV | 2.4 | 3.0 | 3.6 | 2.4 | 3.0 | |
