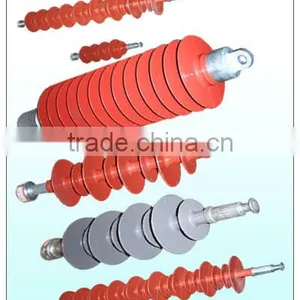

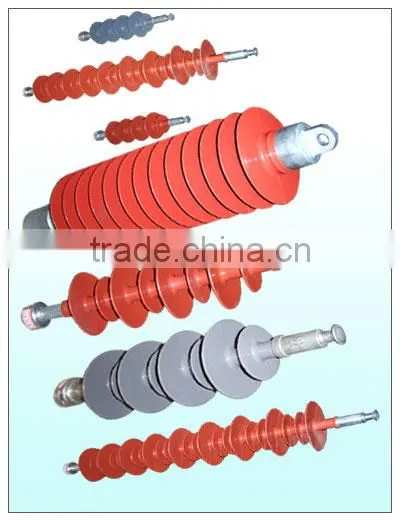

Composite Suspension Insulator
Negotiable
/ Piece
100 Pieces(Min. Order)
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | FY | |
| Model Number | FXBW | Type | Insulator | |
| Material | Composite Polymer | Application | High Voltage | |
| Rated Voltage | 10KV-500KV |
Product Description
Specifications
We supply composite suspension insulator,composite pin insulator,composite post insulator.Voltage from 10KV-220KV.The composite insulator has the advantage of light weight and self-cleaning function .It is also easy to handle as well as not breakable and enjoys excellent mechanical, water repellency Characteristics.
10-220kv composite insulator technical parameters
| 10-220kV composite Insulator | ||||||||||
| No. | Insulator Mode | Rated Voltage kV | Rated mechanical tensile load Kn | Link structure marker | Structure Height mm | Minimum distance ArcL. | Minimum nominal Creepage distance mm | Full-wave Lightning Impulse withstand voltage (peak) | Min.wet withstand voltage per minute at power frequency | |
| Dry | Wet | |||||||||
| 1 | FXBW-10/70 | 10 | 70 | 16 | 310±15 | 130 | 350 | 75 | 47 | 42 |
| 2 | FXBW-10/100 | 10 | 100 | 16 | 350±15 | 130 | 350 | 75 | 47 | 42 |
| 3 | FXBW2-35/70 | 35 | 70 | 16 | 650±15 | 470 | 810 | 230 | 108 | 95 |
| 4 | FXBW4-35/70 | 35 | 70 | 16 | 650±15 | 470 | 1015 | 230 | 108 | 95 |
| 5 | FXBW2-35/100 | 35 | 100 | 16 | 670±15 | 450 | 810 | 230 | 108 | 95 |
| 6 | FXBW4-35/100 | 35 | 100 | 16 | 670±15 | 450 | 1050 | 230 | 108 | 95 |
| 7 | FXBW1-66/70 | 66 | 70 | 16 | 880±15 | 700 | 1450 | 410 | 200 | 185 |
| 8 | FXBW2-66/70 | 66 | 70 | 16 | 940±15 | 760 | 1450 | 410 | 200 | 185 |
| 9 | FXBW3-66/70 | 66 | 70 | 16 | 880±15 | 700 | 1900 | 410 | 200 | 185 |
| 10 | FXBW4-66/70 | 66 | 70 | 16 | 940±15 | 760 | 1900 | 410 | 200 | 185 |
| 11 | FXBW2-66/100 | 66 | 100 | 16 | 940±15 | 720 | 1900 | 410 | 200 | 185 |
| 12 | FXBW4-66/100 | 66 | 100 | 16 | 940±15 | 720 | 1900 | 410 | 200 | 185 |
| 13 | FXBW1-110/70 | 110 | 70 | 16 | 1180±15 | 1000 | 2520 | 550 | 280 | 230 |
| 14 | FXBW2-110/70 | 110 | 70 | 16 | 1240±15 | 1000 | 2520 | 550 | 280 | 230 |
| 15 | FXBW3-110/70 | 110 | 70 | 16 | 1180±15 | 1000 | 3150 | 550 | 280 | 230 |
| 16 | FXBW4-110/70 | 110 | 70 | 16 | 1240±15 | 1000 | 3150 | 550 | 280 | 230 |
| 17 | FXBW2-110/100 | 110 | 100 | 16 | 1240±15 | 1000 | 2520 | 550 | 280 | 230 |
| 18 | FXWB4-110/100 | 110 | 100 | 16 | 1240±15 | 1000 | 3150 | 550 | 280 | 230 |
| 19 | FXBW1-220/100 | 220 | 100 | 16 | 2150±15 | 1900 | 5040 | 1000 | 560 | 395 |
| 20 | FXBW2-220/100 | 220 | 100 | 16 | 2240±15 | 1900 | 5040 | 1000 | 560 | 395 |
| 21 | FXBW3-220/100) | 220 | 100 | 16 | 2150±15 | 1900 | 6300 | 1000 | 560 | 395 |
| 22 | FXBW4-220/100 | 220 | 100 | 16 | 2240±15 | 1900 | 6300 | 1000 | 560 | 395 |
| 23 | FXBW2-220/160 | 220 | 160 | 20 | 2240±15 | 1900 | 5040 | 1000 | 560 | 395 |
| 24 | FXBW4-220/160 | 220 | 160 | 20 | 2240±15 | 1900 | 6300 | 1000 | 560 | 395 |
