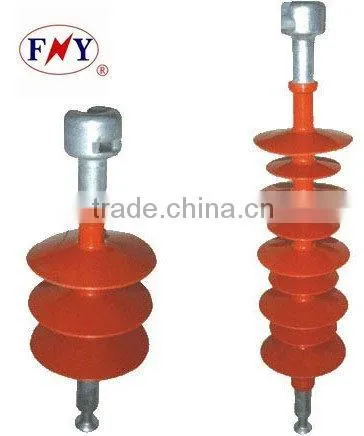

Organic Composite Post Insulator

Name: Organic Composite Post Insulator
Brand: fayun
SKU: 133318019
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

fayun

Model Number:

Insulator

Shijiazhuang Fayun Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name fayun

Model Number Insulator

Type Insulator

Material Composite Polymer

Application High Voltage

Rated Voltage 24~252

Specifications

Organic composite post insulator
Antisoil
Solid
Post

Organic composite post insulator model description:
F:composite insulator
Z:post type
S:solid
W:antisoil

Model No.	Rated Voltage kV	System Nominal Voltage kV	Rated Mechanical Load ≥		Height mm	Insulating Distance mm	Creepage Distance mm	1min power Frequency Withstand Voltage ≥kV		Lightning Impulse Withstand Voltage ≥kV
Model No.	Rated Voltage kV	System Nominal Voltage kV	Bending kN	Torsion kN·m	Height mm	Insulating Distance mm	Creepage Distance mm	Dry	Wet	Lightning Impulse Withstand Voltage ≥kV
FZS-12/4	12	10	4	0.6	215	115	190	47	42	75
FZSW-24/8	24	20	8	1.2	350	205	385	68	50	125
FZSW-24/16	24	20	16	6.0	350	205	385	68	50	125
FZSW-40.5/4	40.5	35	4	1.5	445	300	650	108	95	230
FZSW-40.5/8	40.5	35	8	2.0	445	300	650	108	95	230
FZSW-72.5/4	72.5	66	4	2.0	770	620	1160	200	185	410
FZSW-72.5/6	72.5	66	6	2.5	70	620	1160	200	185	410
FZSW-126/4	126	110	4	3.0	1220	1070	2015	280	230	550
FZSW-126/8	126	110	8	4.0	1220	1050	2015	280	230	550
FZSW-126/12.5	126	110	12.5	6.0	1220	1050	2015	280	230	550
FZSW-252/4	252	220	4	3.0	2300	1940	4030	560	395	1000
FZSW-252/8	252	220	8	4.0	2300	1940	4030	560	395	1000
FZSW-252/12.5	252	220	12.5	6.0	2300	1940	4030	560	395	1000
FZSW-252/6	252	220	16	6.0	2300	1940	4030	560	395	1000
