Help CenterDrop Out Fuse/ Cut Out Fuse
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
FY
Model Number:
HRW
Usage:
High Voltage
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
FY
Model Number
HRW
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC
Specifications

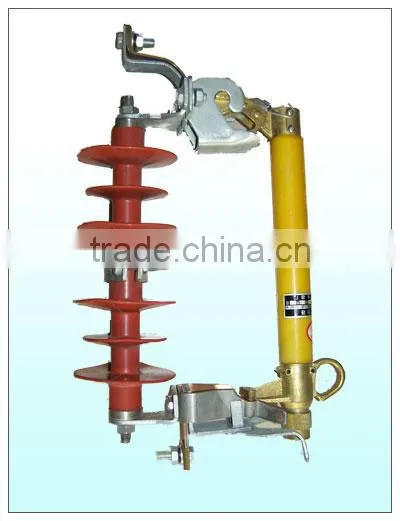

Drop-Out Fuse1.Drop-out Fuse Cutout is used for outdoor high voltage protective device.
2.10kv---38kv are available
drop-out fuse techinical parameters:
rated voltage:10kv
max.operating voltage:12kv
rated current:100A
d drop out current :6.3kA
min. stored drop out current:17kA
creepage distance:> 2.6Cm/kv
1 min.wet power-freqency effective voltage:30kv
impulse H/S voltage(peak):75kv
| Model | Rated Voltage KV | Maximum working voltage KV | Rated Current (A) | The biggest opening Current broken Stored value KV | Minimum opening Current broken Stored value KV | Pressure external insulation | Creepage distance and Cm/kv > | |
| A wet-frequency minutes RMS KV | Impact of H / S peak KV | |||||||
| PHRW10-12/100 | 10 | 12 | 100 | 6.3 | 17 | 30 | 75 | 2.6 |
| PHRW11-12/100 | 10 | 12 | 100 | 6.3 | 17 | 30 | 75 | 2.6 |
| PHRWG1-12/100 | 10 | 12 | 100 | 6.3 | 17 | 30 | 75 | 2.6 |
| PHRW3-12/100 | 10 | 12 | 100 | 6.3 | 17 | 30 | 75 | 2.6 |
| PRW10-10/100 | 10 | 11.5 | 100 | 6.3 | 17 | 30 | 75 | 2.5 |
| PRW11-10/100 | 10 | 11.5 | 100 | 6.3 | 17 | 30 | 75 | 2.5 |
| PRW3-10/100 | 10 | 11.5 | 100 | 5.8 | 17 | 30 | 75 | 2.5 |
| PRW7-10/100 | 10 | 11.5 | 100 | 5.8 | 17 | 30 | 75 | 2.5 |
