High Strength FRP Epoxy Fiberglass Tube
- 10000 Piece / Pieces per Month
- Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | FY | |
| Type | Insulator | Material | Fiberglass | |
| Application | High Voltage |
Product Description
Specifications
epoxy tube:1)Be widely used on many electrical equipments, such as mutual inductors,zinc oxide arresters,etc.
2)high quality

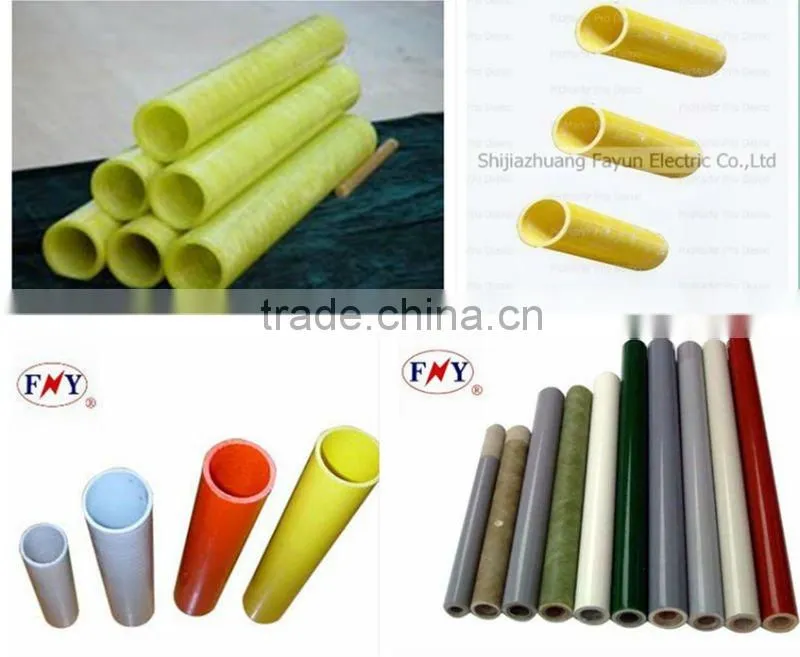

Epoxy Fiberglass tube:
epoxy tube is insulation product shaped through gluing alkali-free and twist-free glass fiber yarn, alkali-free glass cloth and epoxy Volan cloth soaking in epoxy resin compound glue, then being heated and solidified; According to users requirements, it can be made into such heat-resistant grades as B, F or H grade, which have good electrical capability and mechanical strength, and now is widely used in arrester sleeves and bushings of switches on the column for 35KV110KV220KV1000KV etc.
Technical Specification of Epoxy fiberglass winding pipe:
Physical and mechanical parameters |
|
|
Index Name | Unit | Index |
Density | g/cm3> | ≥1.80 |
Water absorption | % | ≤0.15 |
Intensity of curvature(circling direction) | Mpa | ≥400 |
Intensity of compress | Mpa | ≥98 |
Voltage vitality on parallel layer at normal state for 5min | Kv | ≥25 |
Voltage vitalityon vertical layer in the oil at 90°C for 5min | MV/m | ≥12 |
